Adjustments
70256801
48
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

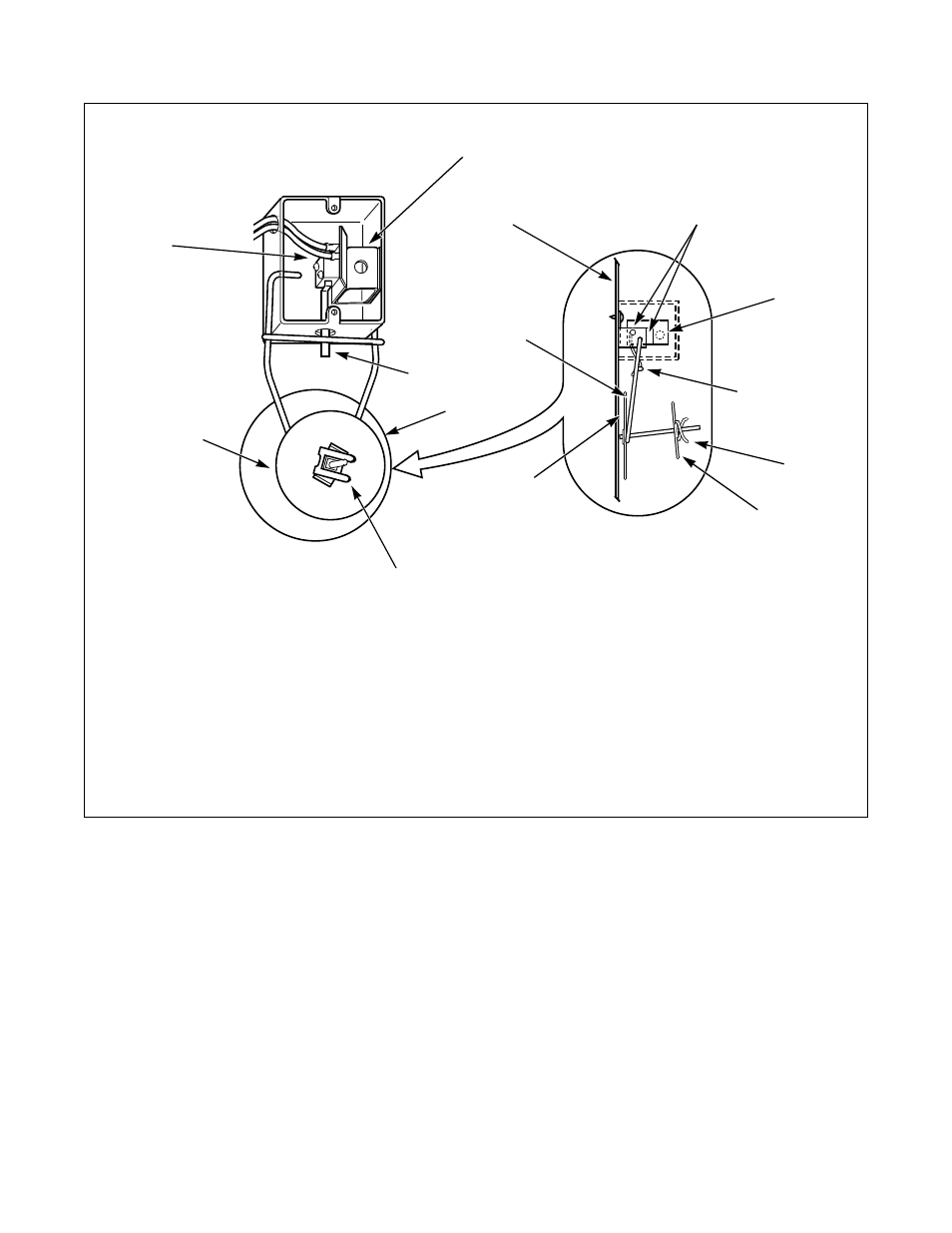

Figure 19
T041I
1
Airflow Switch
2
Mounting Bracket
3
Rear Panel of Tumbler
4
Switch Adjusting Screws
5
Screw
6
Switch Lever
7
Spring Clip
8
Counterweight
9
Disc
10
Vane Lever Arm
T041I
9
1
8
6
7
9
8
7
6
5
3
10
2
4
