Specifications and Dimensions
11 70256801 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

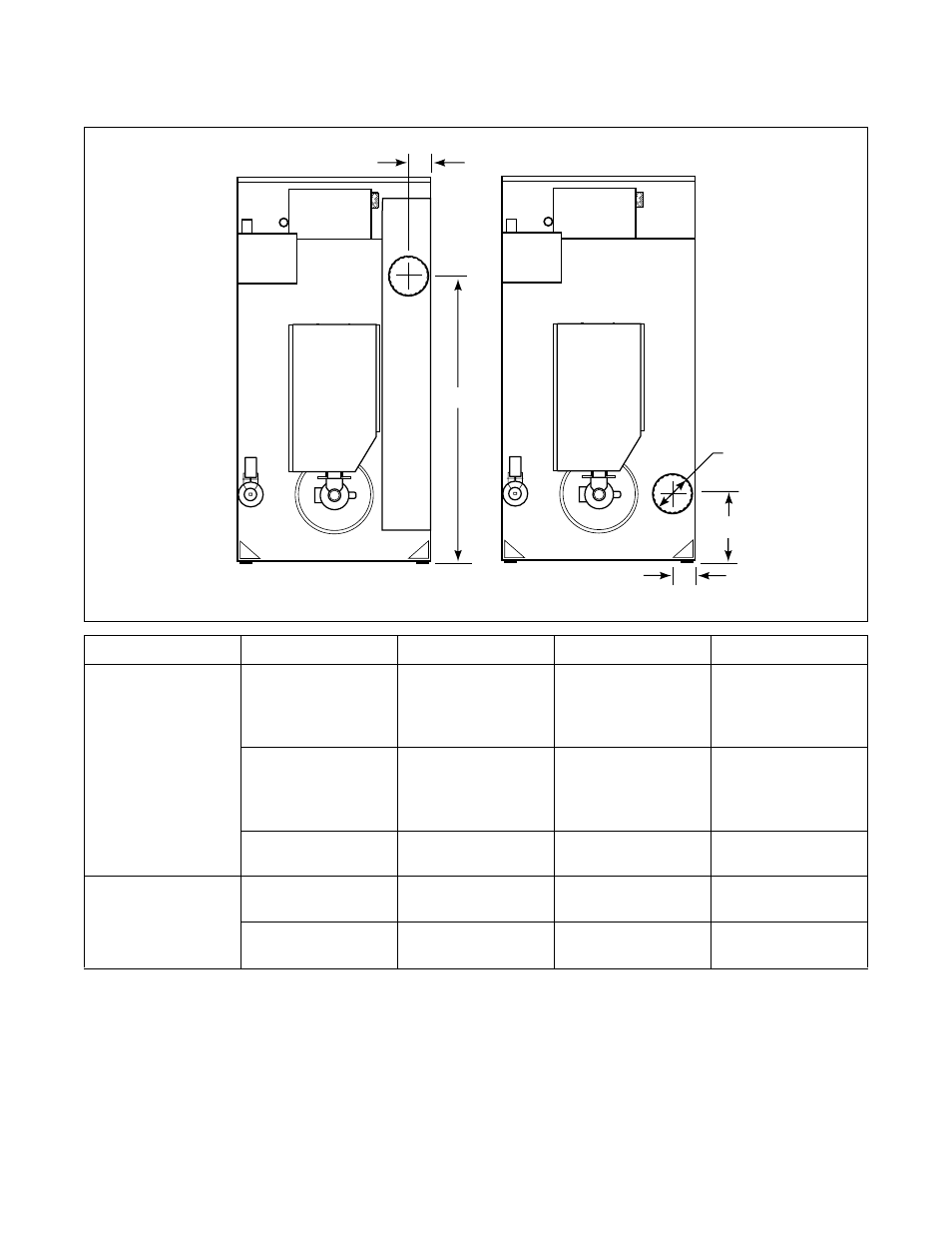

Exhaust Outlet Locations
T492I
A
B
C
C
A
50EG
Models A B C
Horizontal Exhaust
50CG
50CE
50CSL
50CSH
5.375 in.
(137 mm)
8 in.
(203 mm)
13.375 in.
(340 mm)
75CG
75CE
75CSH
75CSL
5.375 in.
(137 mm)
8 in.
(203 mm)
13.375 in.
(340 mm)
DTB634
STB634
6.5 in.
(165 mm)
10 in.
(254 mm)
6.5 in.
(165 mm)
Vertical Exhaust
75EG 5.625 in.
(143 mm)
8 in.
(203 mm)
5 in.
(127 mm)
50EG 5.625 in.
(143 mm)
8 in.
(203 mm)
