Adjustments
49 70256801 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Loading Door Switch
Non CE Marked Models
The door switch should be adjusted so the cylinder
stops when door is opened 2 inches (51 mm), plus or
minus 1/4 inch (6 mm). This switch is a normally open
switch and is closed by the interlock rod when the
door is closed. If adjustment is required, refer to
Figure 20
and proceed as follows:
1. Close door and start tumbler, slowly open
loading door. Cylinder and heat system should
shut off when door is open 2 inches (51 mm) plus
or minus 1/4 inch (6 mm).
2. Slowly close loading door. When door is 2 inches
from being fully closed, the tab should contact
the interlock rod and depress it enough to operate
the switch arm closing the switch with an audible
“click.”
3. If interlock rod does not depress enough to
operate the switch, bend tab on loading door
OUTWARD 1/8 inch (3 mm) and repeat steps 1
and 2. Bend tab outward an additional 1/8 inch
(3 mm) if required to obtain proper rod
movement and switch operation.
4. If proper operation is not obtained by procedure
outlined in step 3, unlock and open access panel
and remove control panel. Loosen the two
adjusting screws holding the switch to the
bracket and move switch 1/8 inch (3 mm) toward
the front of the switch bracket and retighten the
screws. Repeat steps 1 and 2. If switch and rod
still do not have sufficient movement, move
switch forward an additional 1/8 inch (3 mm).

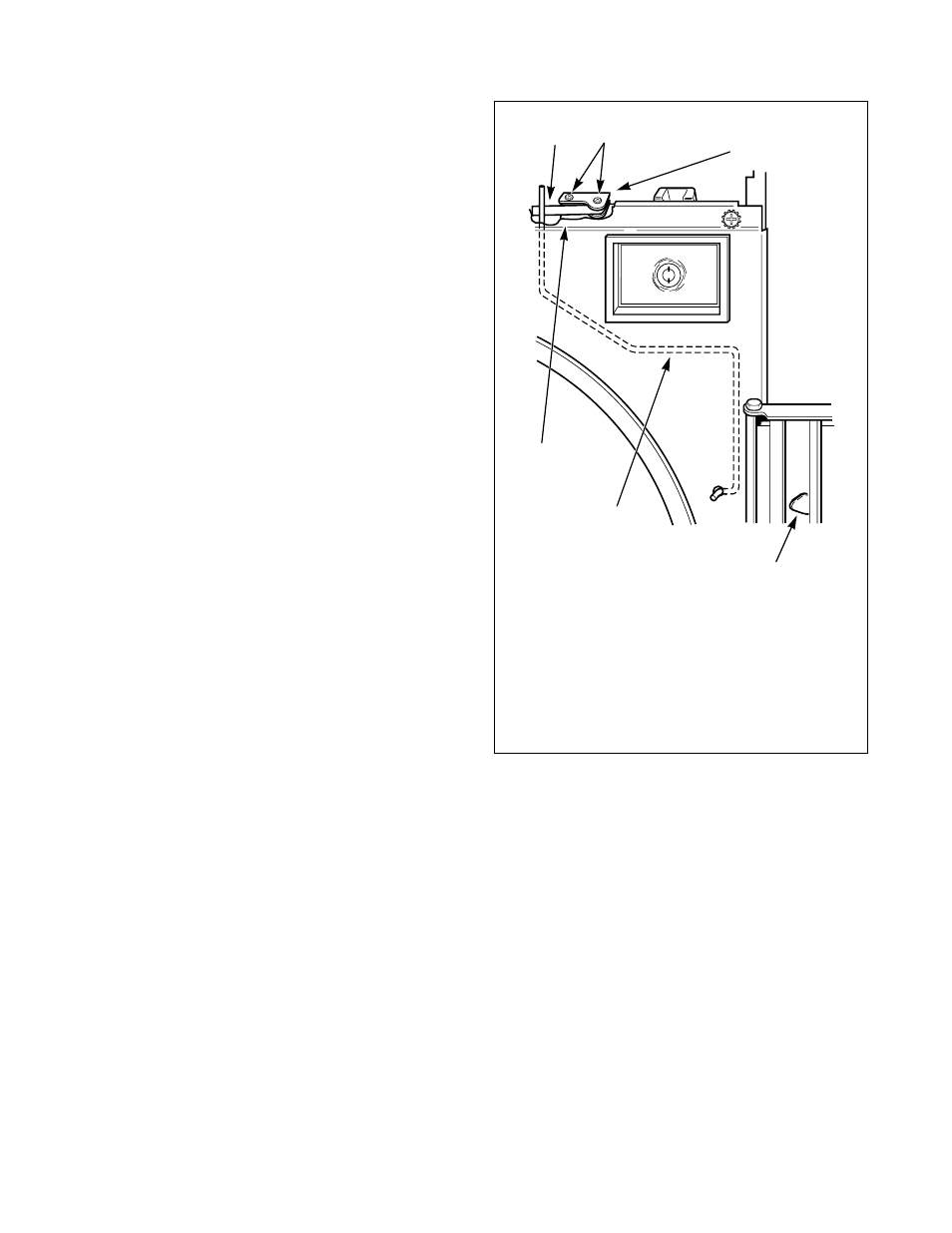

Figure 20
T048I
1 Switch Arm
2 Adjusting Screws
3 Door Safety Switch
4 Tab
5 Interlock Rod
6 Switch Bracket
T249I
2
3
1
6
5
4
