Installation
17
70256801
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Position and Level the Tumbler
Remove lint panel door, and unscrew the four shipping
bolts (one at each corner). Remove tumbler from skid.
NOTE: Do not throw bolts away – they are the
leveling legs.
Remove four nuts from the literature packet and screw
one fully onto each leveling leg.
Screw the four leveling legs (bolts) back into the level
adjusting fittings from the bottom.
Slide tumbler to its permanent location. Adjust the
leveling legs until the unit is level within 1/8 inch
(32 mm). Tumbler must not rock. Lock leveling legs
with nuts previously installed.
IMPORTANT: Keep tumbler as close to floor as
possible. The unit must rest firmly on floor so
weight of tumbler is evenly distributed.

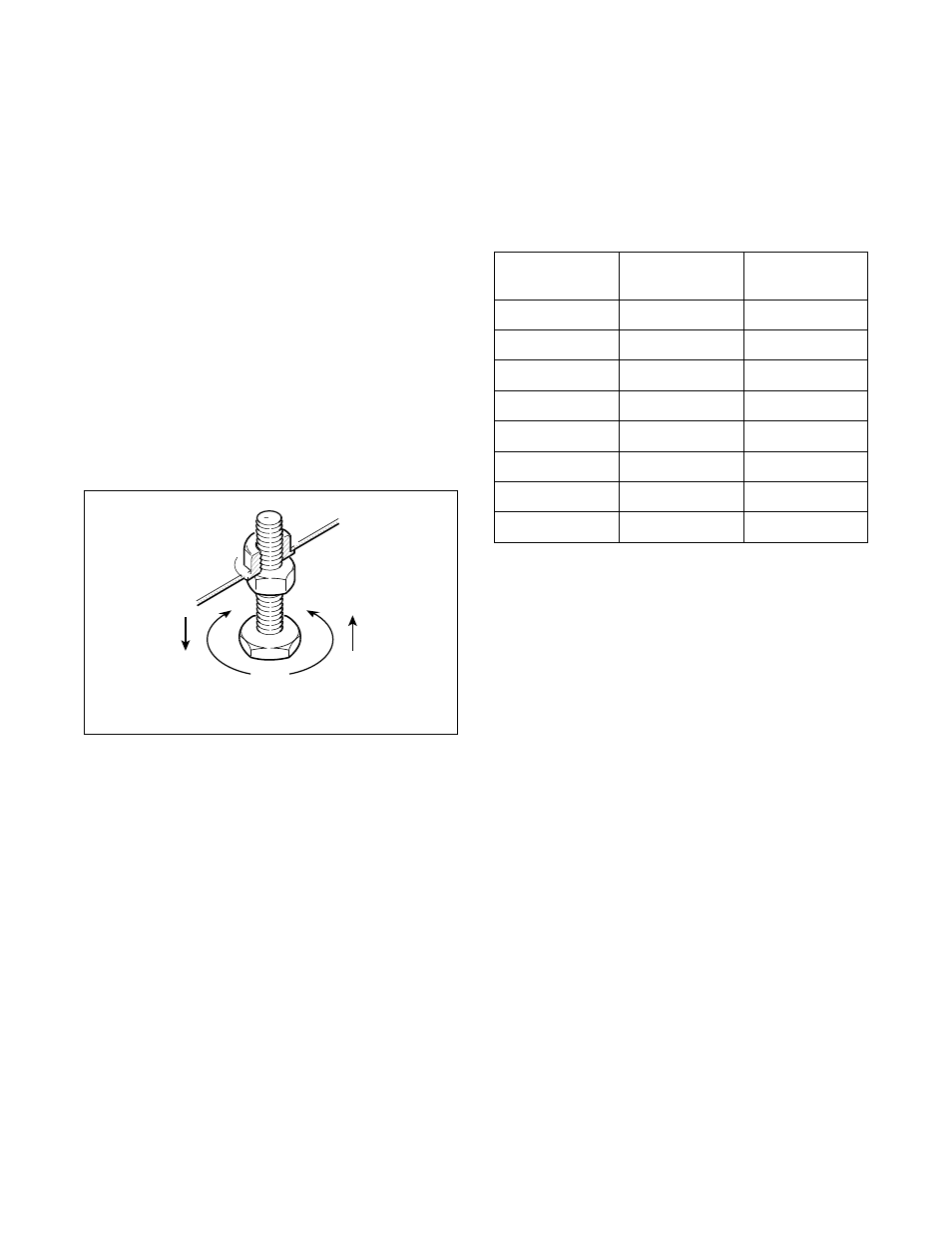

Figure 2
Installing Accessory Timing Cam
Metered Models
Coin drop tumblers have eight accessory cams in the
literature packet. These allow you to change your
vending times. Refer to Table 1. Timer motor RPM is
printed on the timer motor.
T483I
T483I
Cam Pins
1/30 RPM
Timer Motor
1/60 RPM
Timer Motor
2
15
30
3
10
20
4
7.5
15
5
6
12
6
5
10
8
3.75
7.5
10
3
6
12
2.5
5
Table 1
