Exhaust Requirements
70256801
32
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

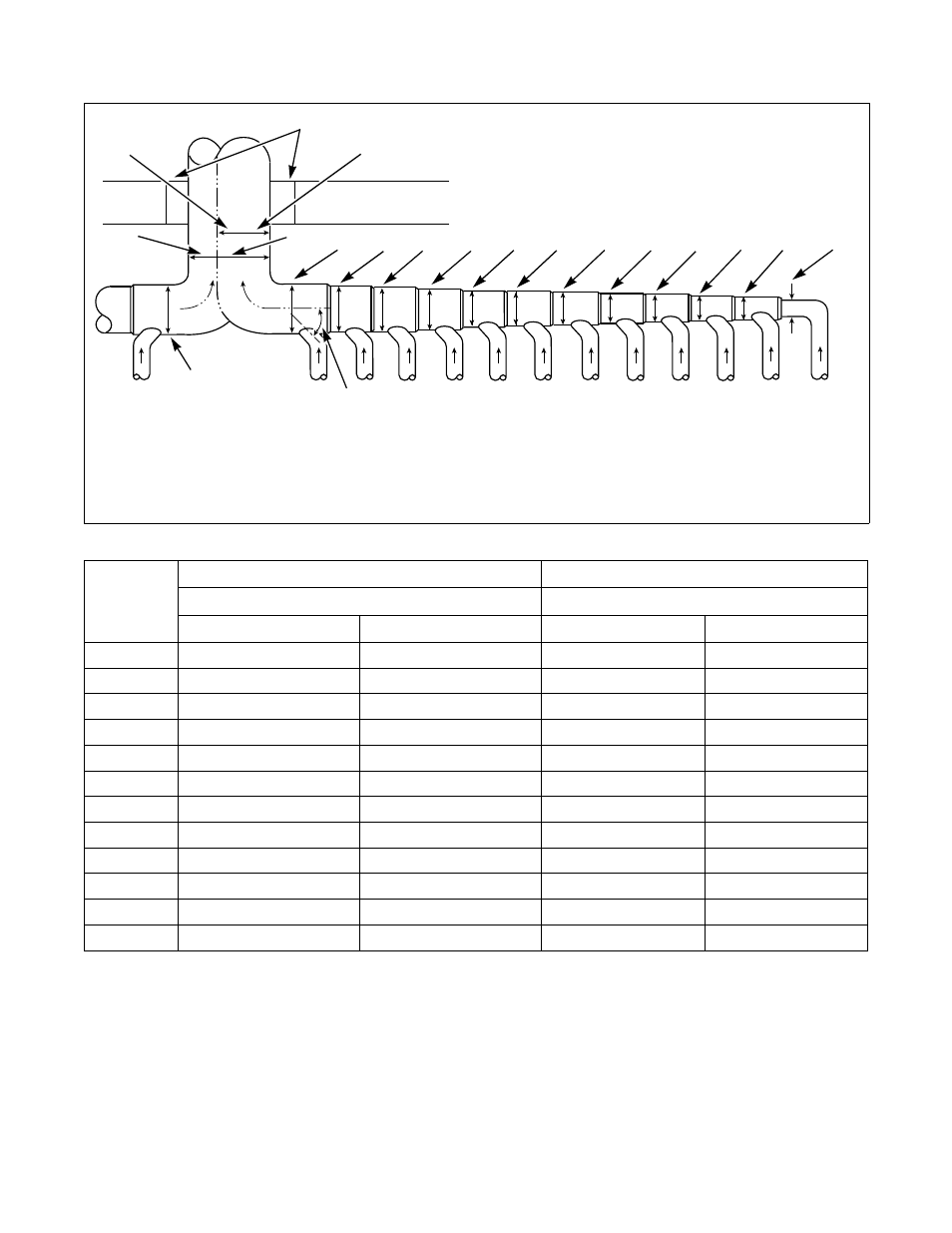

Figure 12
T472I
1
NOTE: Where the exhaust duct pierces a combustible wall or ceiling, the opening must be sized per local codes.
2
Outlet Duct Diameter for One Battery Same as Largest Station Used
3
Outlet Duct Diameter for Two Batteries
4
45° Typical
;;;;;;;;;;;
;;;;;;;;;;;
;;;;;;;;;;;
;;;;;;;;;;;
;;;;;
;;;;;
;;;;;
;;;;;
L
K
J
I
H
G
F
E
D
C
B
A
L
3
4
1
2
D1
D2
Duct
Station
8 Inch Duct
10 Inch Duct
50, 75 Pound
634
D1
D2
D1
D2
A
10 in. (254 mm)
13 in. (330 mm)
10 in. (254 mm)
15 in. (381 mm)
B
12 in. (305 mm)
17 in. (432 mm)
15 in. (381 mm)
22 in. (559 mm)
C
15 in. (381 mm)
18 in. (457 mm)
18 in. (457 mm)
26 in. (660 mm)
D
17 in. (432 mm)
24 in. (610 mm)
21 in. (533 mm)
30 in. (762 mm)
E
19 in. (483 mm)
27 in. (686 mm)
24 in. (610 mm)
34 in. (864 mm)
F
21 in. (533 mm)
30 in. (762 mm)
26 in. (660 mm)
37 in. (940 mm)
G
23 in. (584 mm)
33 in. (838 mm)
28 in. (711 mm)
40 in. (1016 mm)
H
25 in. (635 mm)
34 in. (864 mm)
30 in. (762 mm)
43 in. (1092 mm)
I
26 in. (660 mm)
37 in. (940 mm)
32 in. (813 mm)
46 in. (1168 mm)
J
27 in. (686 mm)
39 in. (991 mm)
33 in. (838 mm)
47 in. (1194 mm)
K
29 in. (737 mm)
40 in. (1016 mm)
35 in. (889 mm)
50 in. (1270 mm)
L
30 in. (762 mm)
42 in. (1067 mm)
36 in. (914 mm)
51 in. (1295 mm)
Table 8
