Installation
23 70256801 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

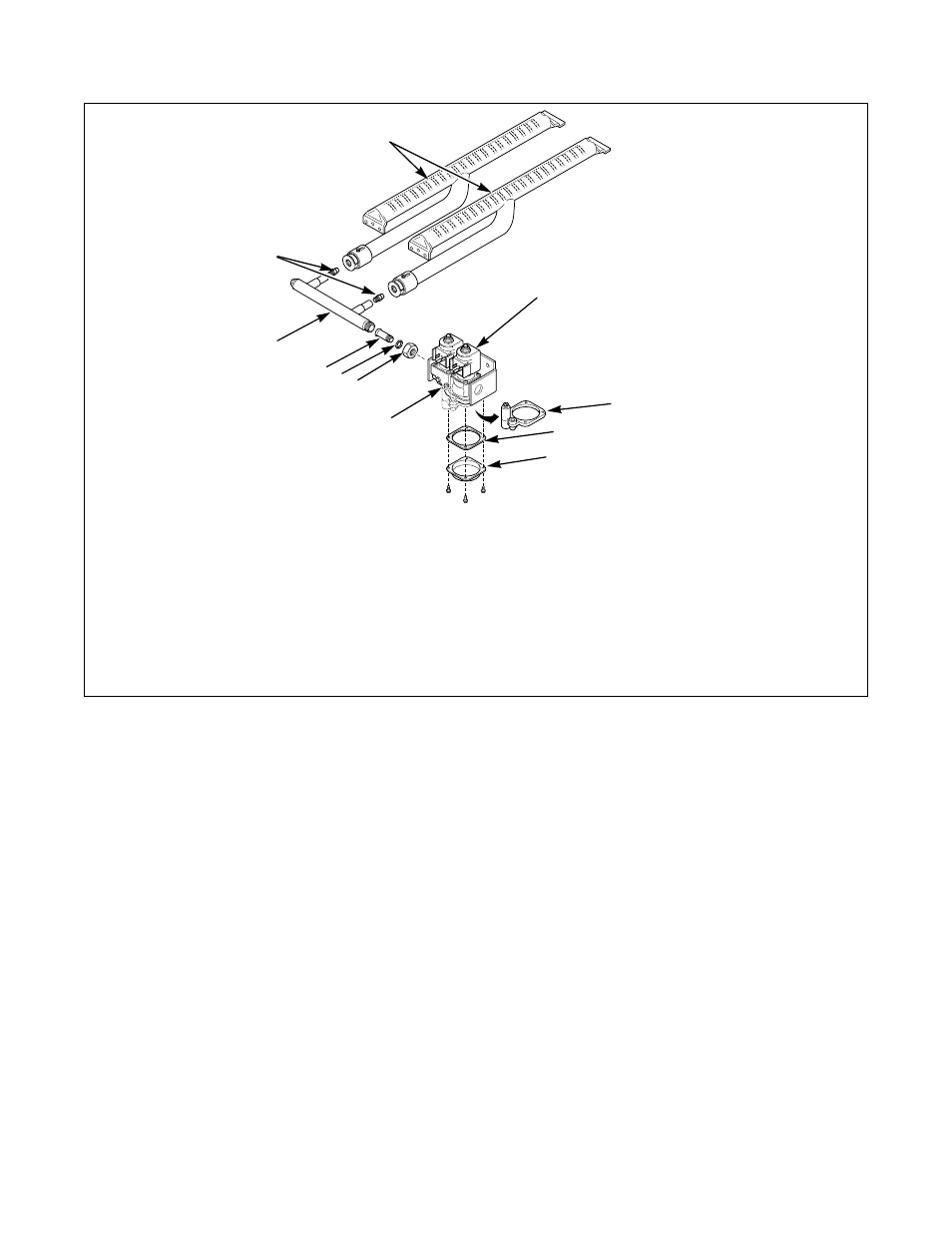

Figure 6
How to Change Injector (Orifice) Size
1. Disconnect electrical power from tumbler. Close
gas shut-off valve to tumbler. Refer to Figure 5.
2. Remove gas valve.
Johnson G96 Gas Valve – Unscrew spud holder
nut near gas valve. Refer to Figure 7. Remove the
burner orifice(s) from spud holder. Refer to
Figure 6
.
3. Install the new, correct injector(s) (orifices).
Refer to Figure 8. Torque each to 9-10 Nm.
4. Reinstall spud holder assembly to gas valve,
making certain orifice(s) are in line with burner
tube opening. Refer to Figure 6.
5. Commission tumbler for use.
NOTE: Blank injectors (orifices) are Part No.
M400995.
TMB1527N
1 Burner 7 Nut
2 Gas Valve 8 Anti-Torque Ring
3 Regulator Plate 9 Manifold Pipe
4 Gasket 10 Spud Holder
5 Plate 11 Burner Orifice
6 Regulator Cap
TMB1527N
UNREGULATED (REGULATOR BLOCKED OPEN)
1
10
9
8
7
6
5
4
3
2
11
