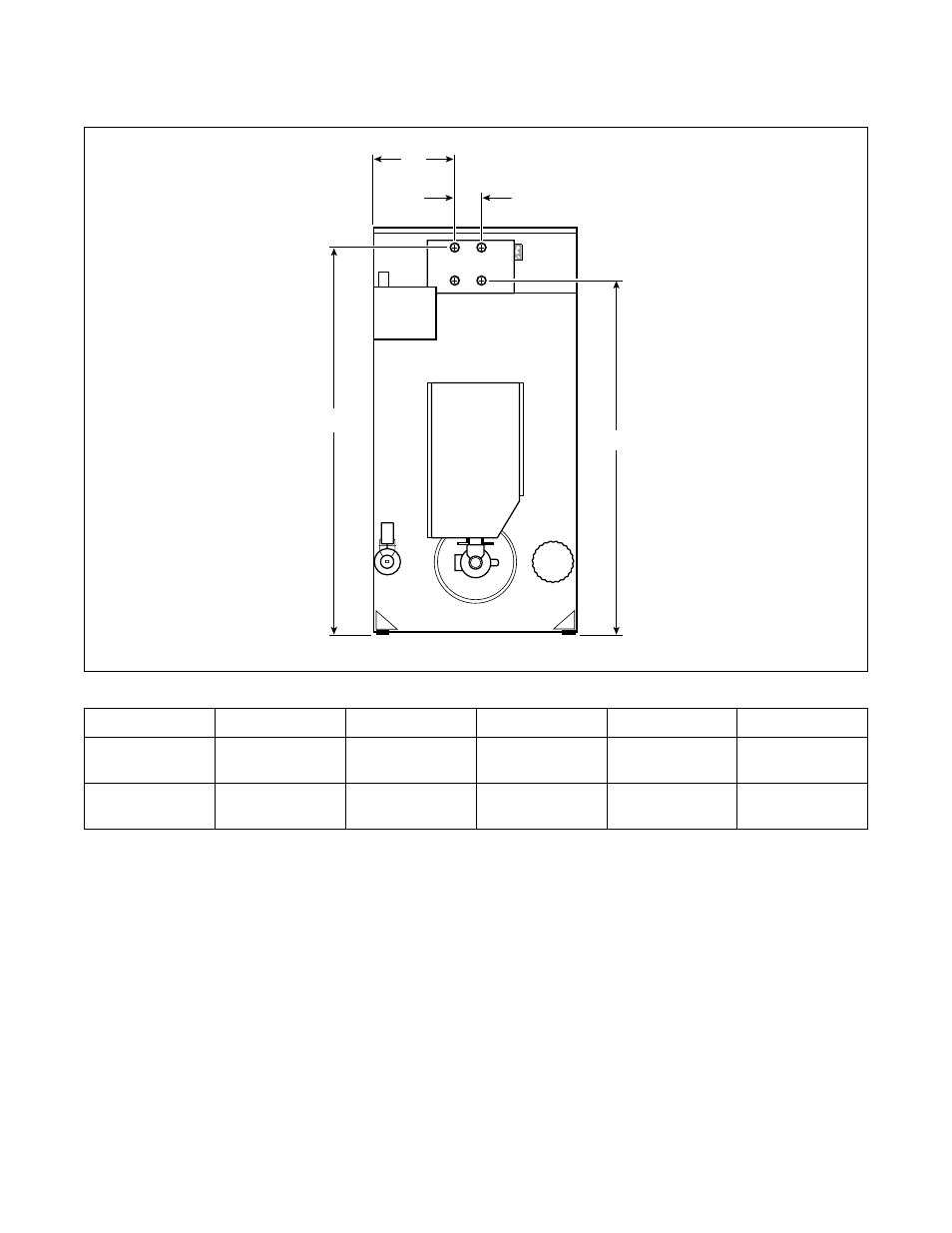

Steam Connection Locations
T328I
T328I
C
A
B
D
Models
Diameter
A
B
C
D
50CSH
50CSL
3/4 in. NPT
15.25 in.
(387 mm)
72.75 in.
(1848 mm)
7.5 in.
(190 mm)
64.75 in.
(1645 mm)
75CSH
75CSL
3/4 in. NPT
15.25 in.
(387 mm)
72.75 in.
(1848 mm)
7.5 in.
(190 mm)
64.75 in.
(1645 mm)
