Installation
70256801 16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Location Requirements
The tumbler must be installed on a level floor. Floor
covering materials such as carpeting or tile must be
removed.
To assure compliance, consult local building code
requirements.
The tumbler MUST NOT be installed or stored in an
area where it will be exposed to water and/or weather.
IMPORTANT: DO NOT block the airflow at the
rear of the tumbler with laundry or other articles.
Doing so would prevent adequate air supply to the
combustion chamber of the tumbler.

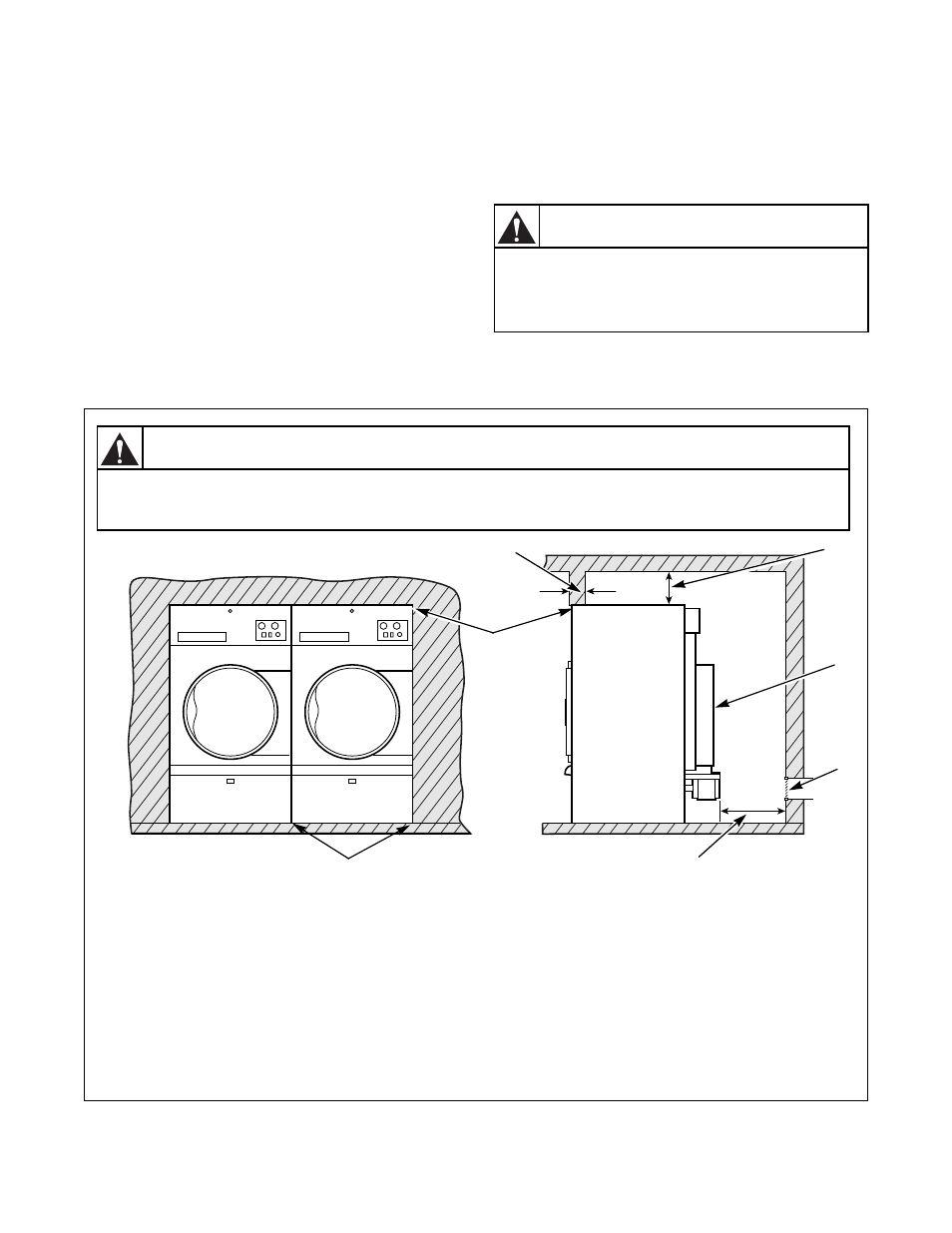

A typical tumbler enclosure is shown in Figure 1. Note
that the enclosure touches the tumbler top and side
panels. Also, note the minimum and maximum
dimensions. There may be local codes and ordinances
which must be complied with.
IMPORTANT: Install tumblers with sufficient
clearance for servicing and operation. Refer to
Figure 1.
Figure 1
WARNING
To reduce the risk of serious injury, install
lockable door(s) to prevent public access
to rear of tumblers.
W055
TMB815N
NOTE: Shaded areas indicate adjacent structure.
1 Zero Clearance Permitted for First 4 in. (102 mm)
2 4 in. (102 mm) Maximum Header Thickness
3 12 in. (305 mm) Minimum Clearance Permitted for Remainder
4 Guard
5 Provision for Make-Up Air
6 24 in. (610 mm) Minimum – 36 in. (914 mm) Recommended for Maintenance Purposes
7 Zero Clearance
TMB815N
3
1
4
5
6
7
2
WARNING
To reduce the risk of severe injury, clearance of tumbler cabinet from combustible
construction must conform to the minimum clearances.
W056
