Page 60
MC3000 Integrator Guide
2-20
2.
Pivot the top of the battery down onto the contact pins.

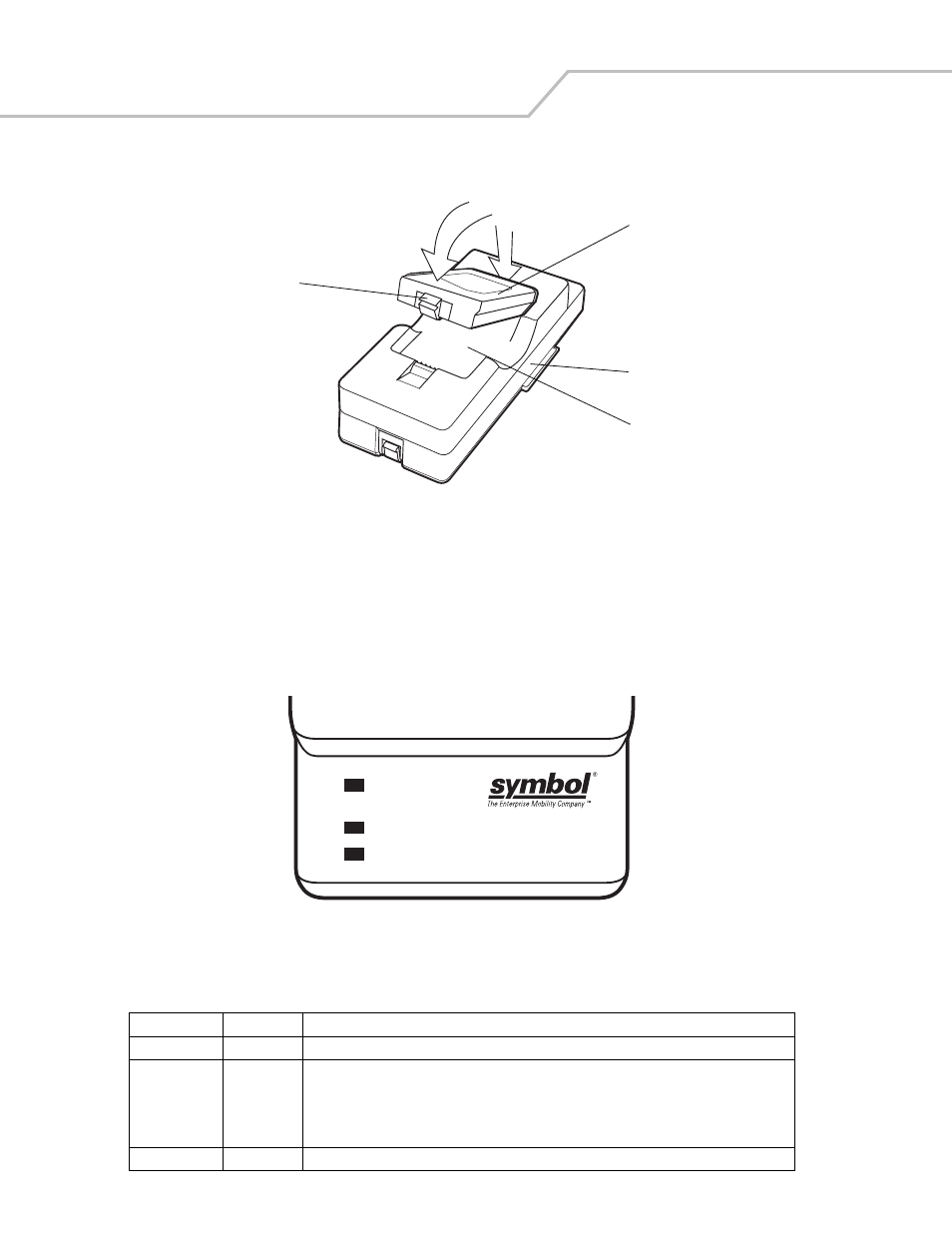

Figure 2-18. UBC Adapter Battery Insertion
3.
Gently press down on the battery to ensure proper contact. The Standard Battery usually charges in less than four hours and
the Extended Life Battery usually charges in less than six hours. See
for charging status indications.
4.
When charging is complete, press the battery clip and lift the battery out of the slot.
UBC Adapter LED Charge Indications
The UBC Adapter charging LEDs indicate the battery charging status.
Figure 2-19. UBC Adapter LEDs
Table 2-3. UBC Adapter Charge LED Status Indications
LED
Indication
Description
POWER
Green
Power is connected to the UBC Adapter.
READY or
Green
Charging complete.
STANDBY or
Flashing-
Yellow
The battery was deeply discharged and is being trickle charged to bring the voltage up to the
operating level. After operating level voltage is achieved, the battery charges normally.
FAULT
Yellow
Charging error, check placement of mobile computer/spare battery.
CHARGING
Yellow
Normal charge.
UBC Adapter
Battery
Battery Clip
Spare Battery
Charging Slot
2
1
POWER
READY or STANDBY or FAULT
CHARGING
(Green)
(Flashing Yellow)
(Solid Yellow)
(Solid Yellow)
