MC3000 Integrator Guide
1-18
Strap/Door Assembly Removal and Replacement
The Strap/Door Assembly consists of a hand strap and the battery door. There are two versions of this assembly, one for the Standard
Battery and one for the Extended Life Battery. Before removing the Strap/Door Assembly, press the red Power button to turn off the
screen and set the mobile computer to suspend mode.
To remove the Strap/Door Assembly:
1.
Rotate the latches to the open position.
Do not lift up on the Latches when removing the Strap/Door Assembly. Lift up on the Hand Strap only.
2.
Lift the Hand Strap to lift the Strap/Door Assembly off, bottom first.
3.
Use a #00 Phillips screwdriver to remove the screws.
4.
Lift the mounting clip.
5.
Slide the mounting clip out of the strap loop.
Reverse the procedure to replace the Strap/Door Assembly.

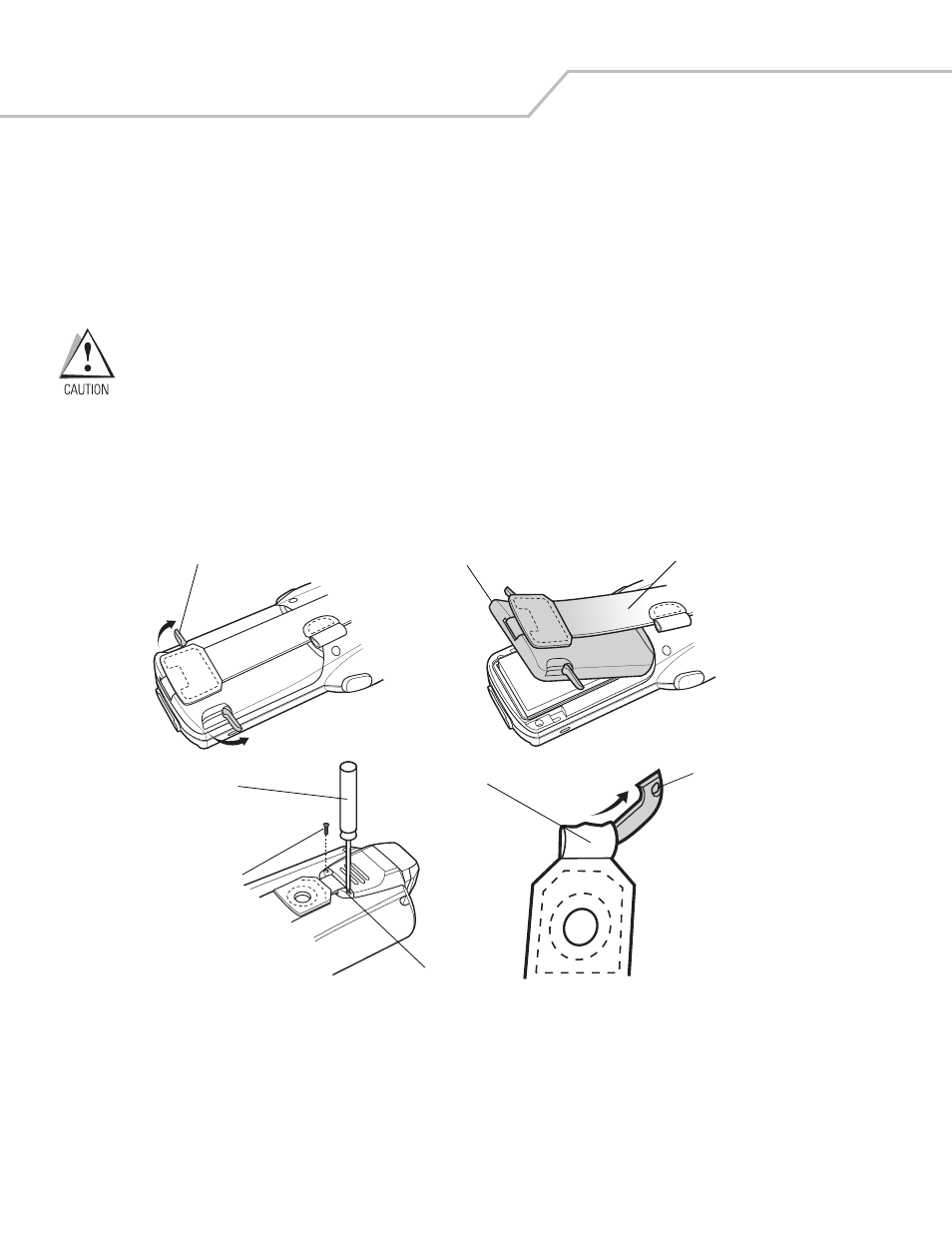

Figure 1-12. Strap/Door Removal and Replacement
Strap/Door
Assembly
Latches
Screws
#00 Phillips
Screwdriver
Mounting
Clip
Strap Loop
Mounting
Clip
Hand Strap
