MC3000 Integrator Guide 7-32
Wireless Diagnostics Application
The Wireless Diagnostics application window provides links to perform ICMP Ping, Trace Routing and Known APs.
To open the Wireless Diagnostics window, tap the Signal Strength icon - Wireless Diagnostics. The Wireless Diagnostics window
displays.

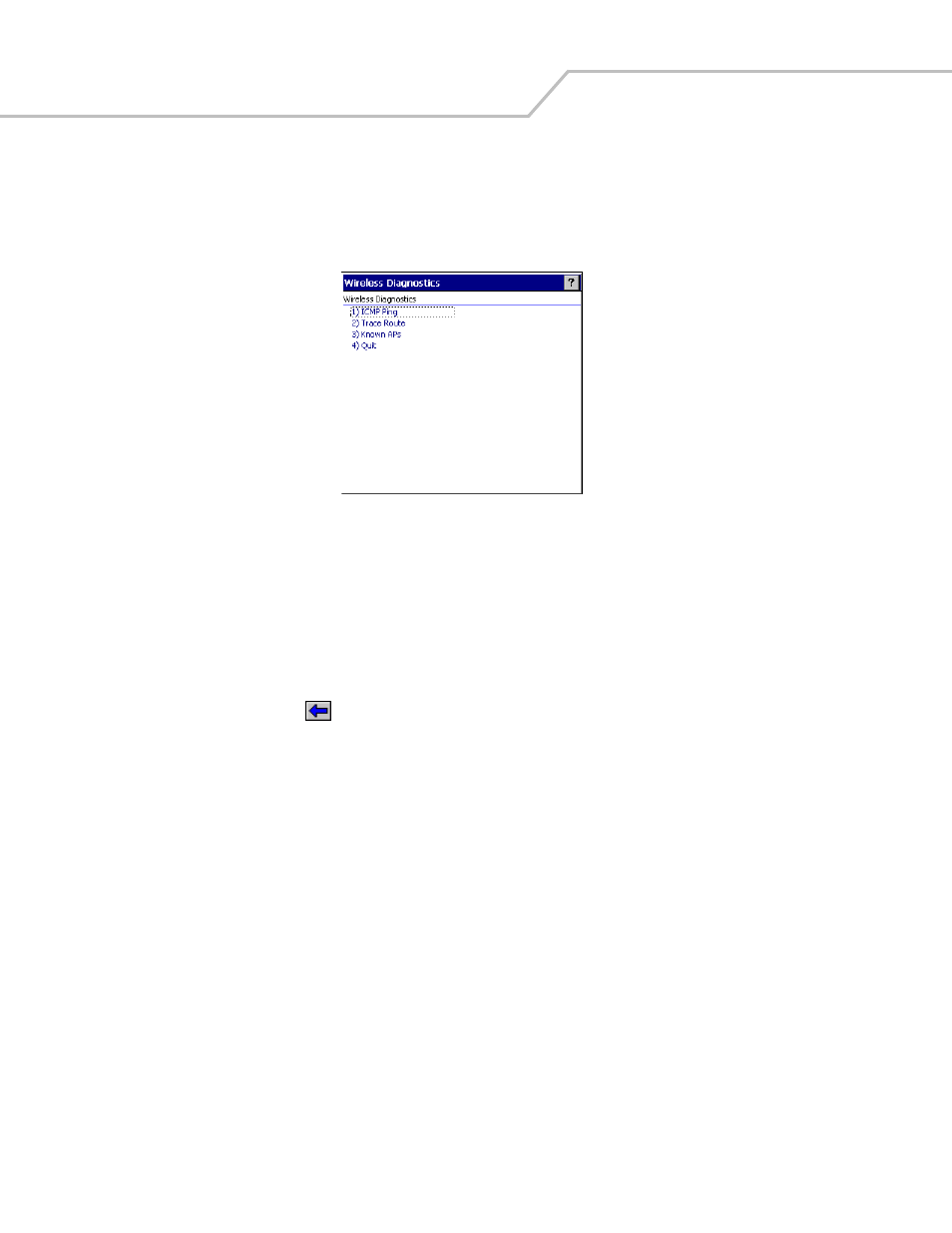

Figure 7-37. Wireless Diagnostics Window
The Wireless Diagnostics window contains the following options. Tap the option to display the option window.
• ICMP Ping - tests the wireless network connection.
• Trace Route - tests a connection at the network layer between the mobile computer and any place on the network.
• Known APs - displays the APs in range using the same ESSID as the mobile computer.
• Quit - Exits the Wireless Diagnostics window.
Option windows contain a back button to return to the main Wireless Diagnostics window.
