Smart Inventions SMART Height-Adjustable Wall mount HAWM-UX/UF User Manual
Page 78
72 |
CHAPTER 6 – CABLING A 600I3 OR D600I3 SYSTEM TO A HAWM-UX/UF
IMPORTANT
Use only the input Computer 1 on your projector to connect the ECP harness
cable.

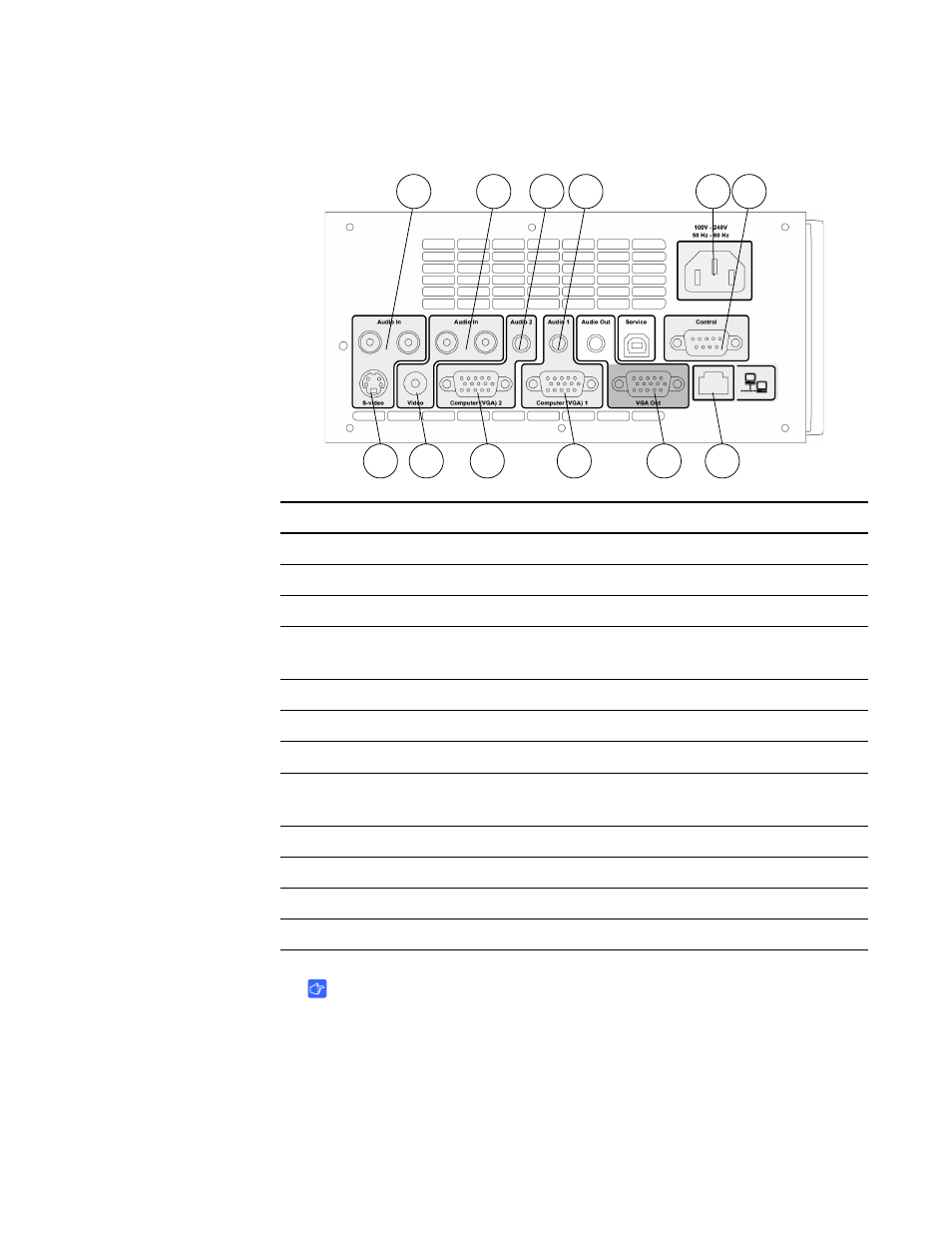

Number
Function
1
RCA jack audio left/right input (reserved for ECP harness cable)
2
S-video input connector (reserved for ECP harness cable)
3
RCA jack audio left/right input (reserved for ECP harness cable)
4
RCA jack composite video input connector (reserved for ECP harness
cable)
5
3.5 mm audio output connector (for VGA 2-In connector)
6
HD-DB15 (VGA 2) connector (reserved for ECP harness cable)
7
3.5 mm audio output connector (for VGA 1-In connector)
8
HD-DB15 (VGA 1) connector (computer analog signal/component video
input)
9
HD-DB15 VGA output connector
10
Power socket
11
RS-232 connector (reserved for ECP harness)
12
RJ45 jack (for network connections)
5
7
2
10
3
1
11
6
8
9
12
4
