CHAPTER 2 – CABLING AN 885ix SYSTEM TO A HAWM-UX/UF
To connect peripheral
devices to your RCA
connector pod
1. Place the device near the HAWM-UX/UF on a stable support and allow enough
excess cable length to accommodate the HAWM-UX/UF’s rise and descent. Make
sure that the HAWM-UX/UF isn’t moved while the device is attached.
2. Connect your peripheral device's input cables to the jacks on the RCA connector
pod.
3. When you’re finished with the device, disconnect the cable from RCA connector
pod.

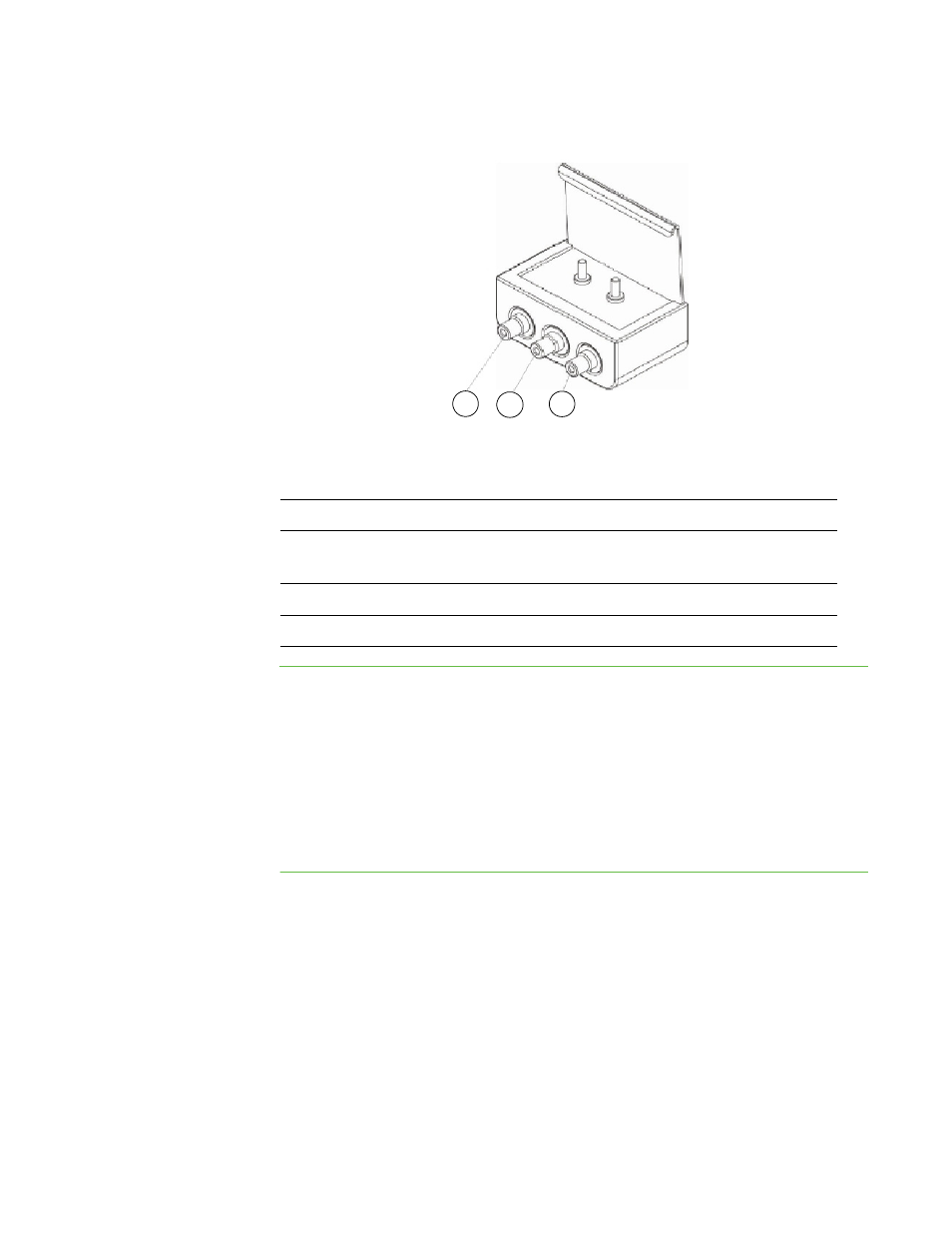

Number Function
1
RCA composite video input jack (for peripheral devices such as a
DVD/Blu-ray player)
2
RCA audio jack (right input)
3
RCA audio jack (left input)
1
3
2
