CHAPTER 6 – CABLING A 600I3 OR D600I3 SYSTEM TO A HAWM-UX/UF

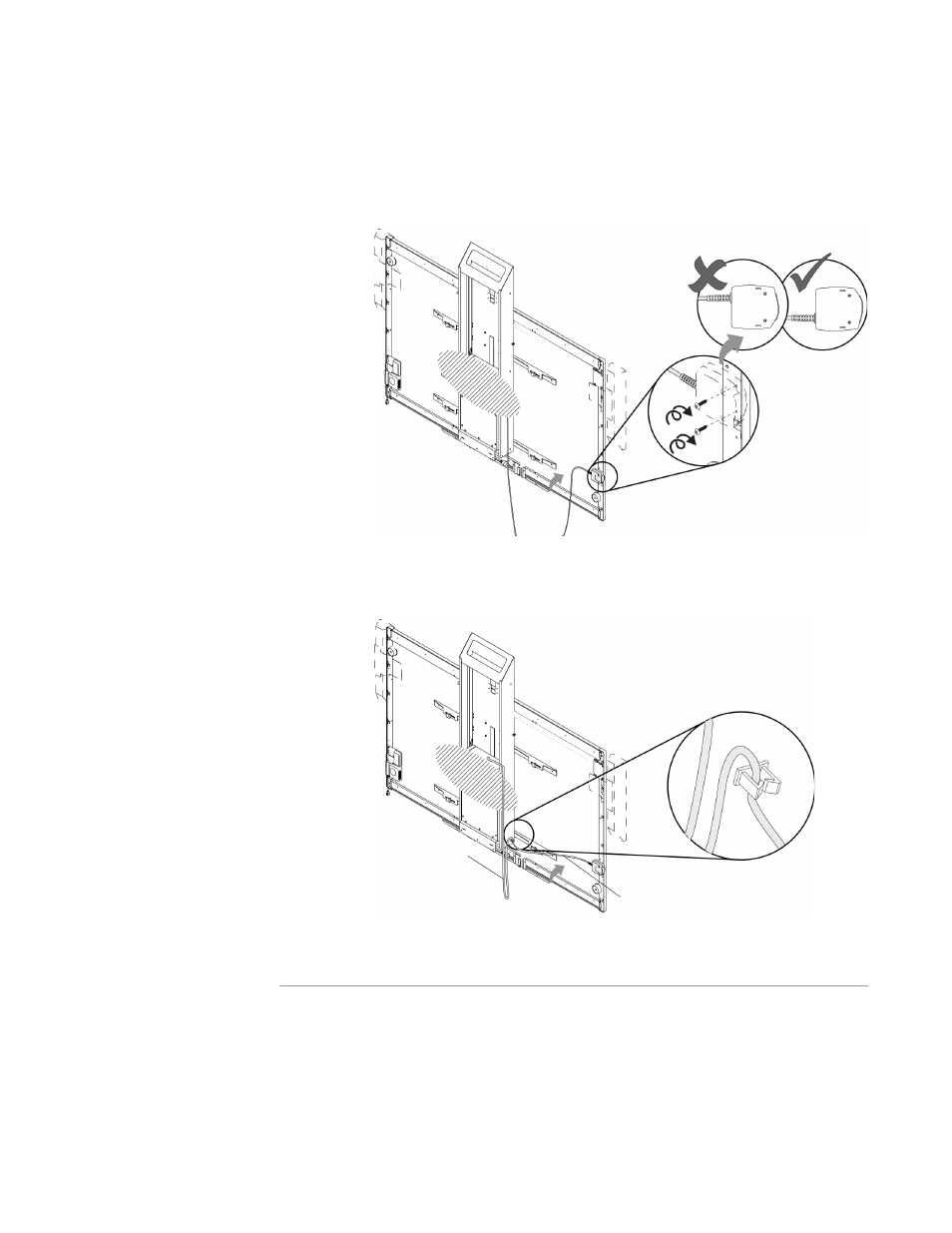

3. Secure the mobility switch cable toward the side of the interactive whiteboard
where you choose to mount the mobility switch, using a Phillips No. 2 screwdriver
and the two screws listed in the HAWM-UX/UF installation guide. Make sure that
the mobility switch cable is toward the bottom of the switch as you mount it.
4. Place the cable through the HAWM-UX/UF’s lower cable clip, making sure that the
cable is taut between the interactive whiteboard and the clip, and loose between
the clip and the base of the HAWM-UX/UF.
5. Bundle the excess cable, making sure that there’s a minimum of 28" (71.1 cm)
excess straight length or a 14" (35.6 cm) loose loop of cable.
Taut cable
Loose cable
