44 | CHAPTER 4 – CABLING A 685ix OR D685ix SYSTEM TO A HAWM-UX/UF
2. Place the audio connection cable
toward the right of the HAWM-UX/UF,
inserting the cable into the
HAWM-UX/UF cable clips.
3. Place the audio connection cable
through the right speaker cable clip
on the rear of the interactive
whiteboard, toward the right speaker.
4. Connect the dual channel audio
output to the speaker’s connection
panel, and bundle any excess cable
in the right speaker cable clip.
5. Retrieve the speaker-to-speaker Molex
(double-barreled) cable from the
SBA-L packaging.
6. Place the Molex cable through the left
speaker cable clip, through the space
between the HAWM-UX/UF and the
interactive whiteboard.
7. Place the cable through the right
speaker cable clip.
8. Connect the Molex cable to both
speakers and bundle any excess cable
in the left speaker cable clip.

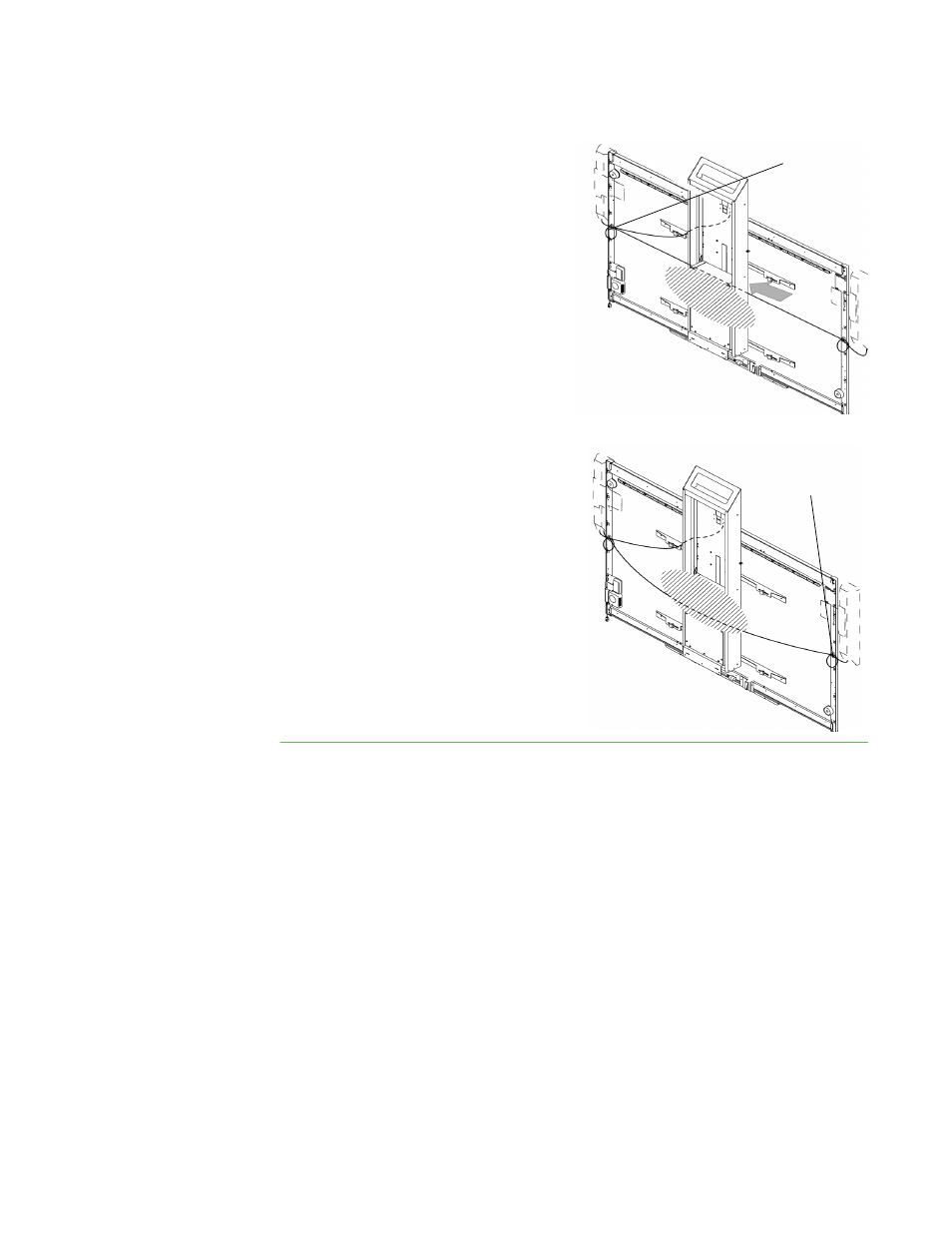

Right speaker
cable clip
Left speaker
cable clip
