39 | CHAPTER 4 – CABLING A 685ix OR D685ix SYSTEM TO A HAWM-UX/UF
Using the SMART UX60 projector ECP for HAWM-UX/
UF-mounted components

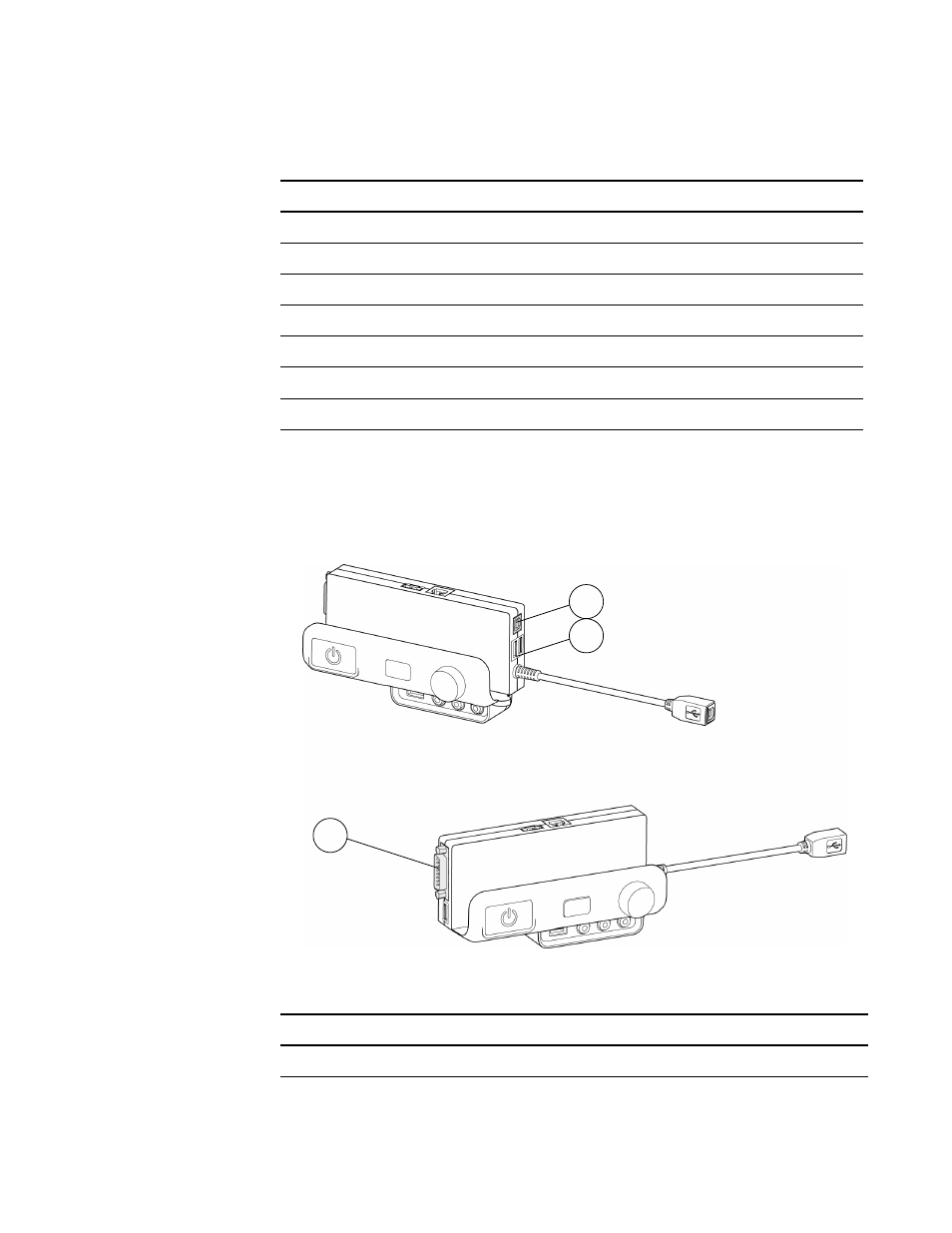

The following diagram and list identify the ECP ports that connect to
HAWM-UX/UF-mounted components.
Number Function
1 3.5 mm audio output connector (recommended for SBA-L speakers)
2 4-pin power mini-DIN 5V/2A connector (reserved for ECP harness cable)
3 7-pin mini-DIN connector (reserved for ECP harness cable)
4 3.5 mm audio input connector (reserved for WMB)
5 HD-DB15 (VGA 2) input connector (reserved for WMB)
6 RCA jack composite video input (reserved for ECP harness cable)
7 RCA jack audio left/right input (reserved ECP harness cable)
Number Function
1 USB B jack (reserved for WMB)
1
3
2
