CHAPTER 2 – CABLING AN 885ix SYSTEM TO A HAWM-UX/UF
Using the SMART UX60 projector connection panel for
HAWM-UX/UF-mounted components
To access the projector connection panel and wire management clip, remove the
input/output cover on the left side of the projector and remove the cable covers. For
more information, see the SMART Board X800ix Interactive Whiteboard System
Configuration and User’s Guide (

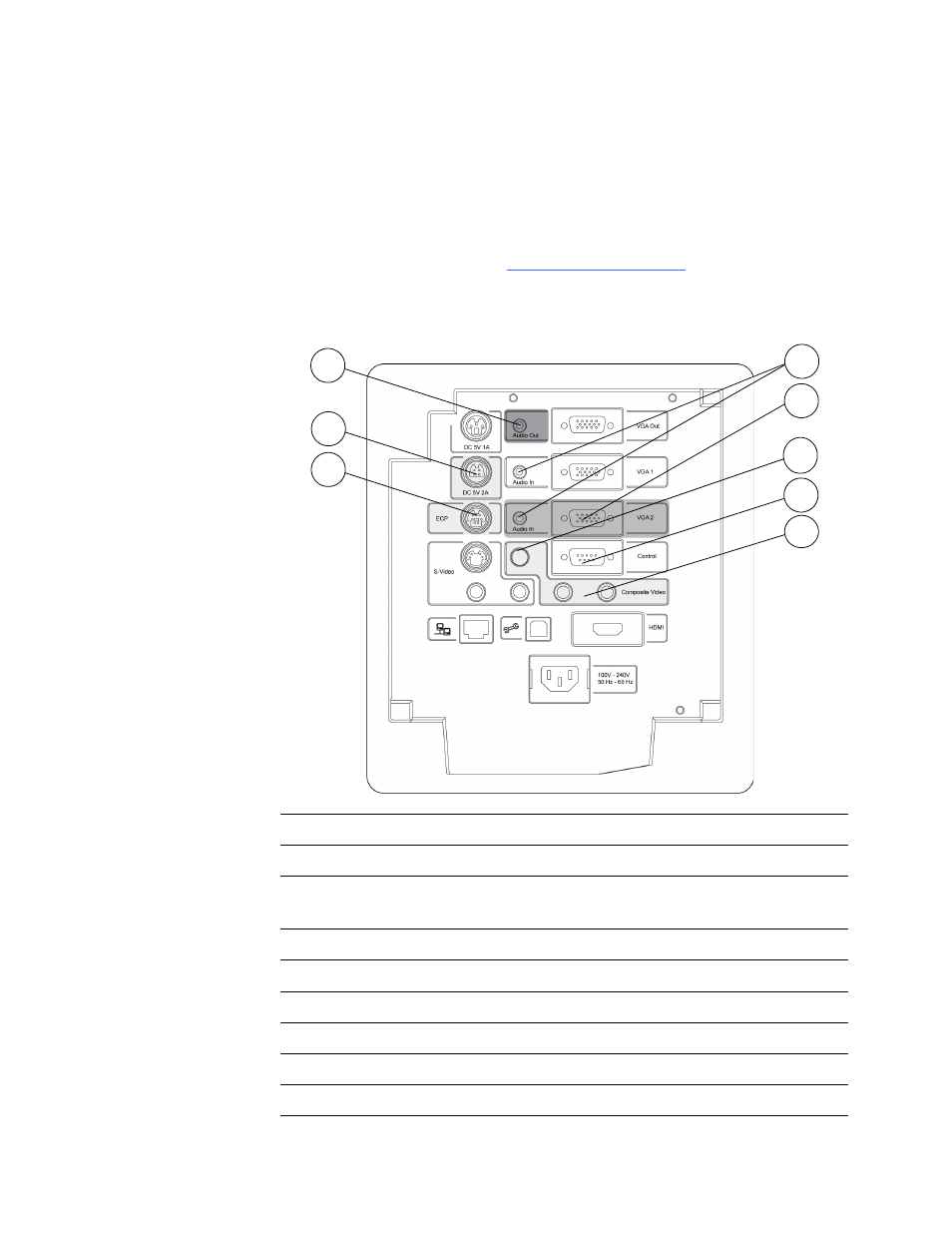

The following diagram and list identify the projector’s connections to
HAWM-UX/UF-mounted components.
Number Function
1
3.5 mm audio output connector (recommended for SBA-L speakers)
2
4-pin power mini-DIN 5V/2A connector (reserved for ECP harness
cable)
3
7-pin mini-DIN connector (reserved for ECP harness cable)
4
3.5 mm audio input connector (reserved for pen tray audio cable)
5
HD-DB15 (VGA 2) input connector (reserved for WMB)
6
RCA jack composite video input (reserved for RCA pod)
7
DB9 control (reserved for ECP harness cable)
8
RCA jack audio left/right input (reserved for RCA pod)
2
3
7
4
6
5
1
8
