43 |
CHAPTER 4 – CABLING A 685ix OR D685ix SYSTEM TO A HAWM-UX/UF

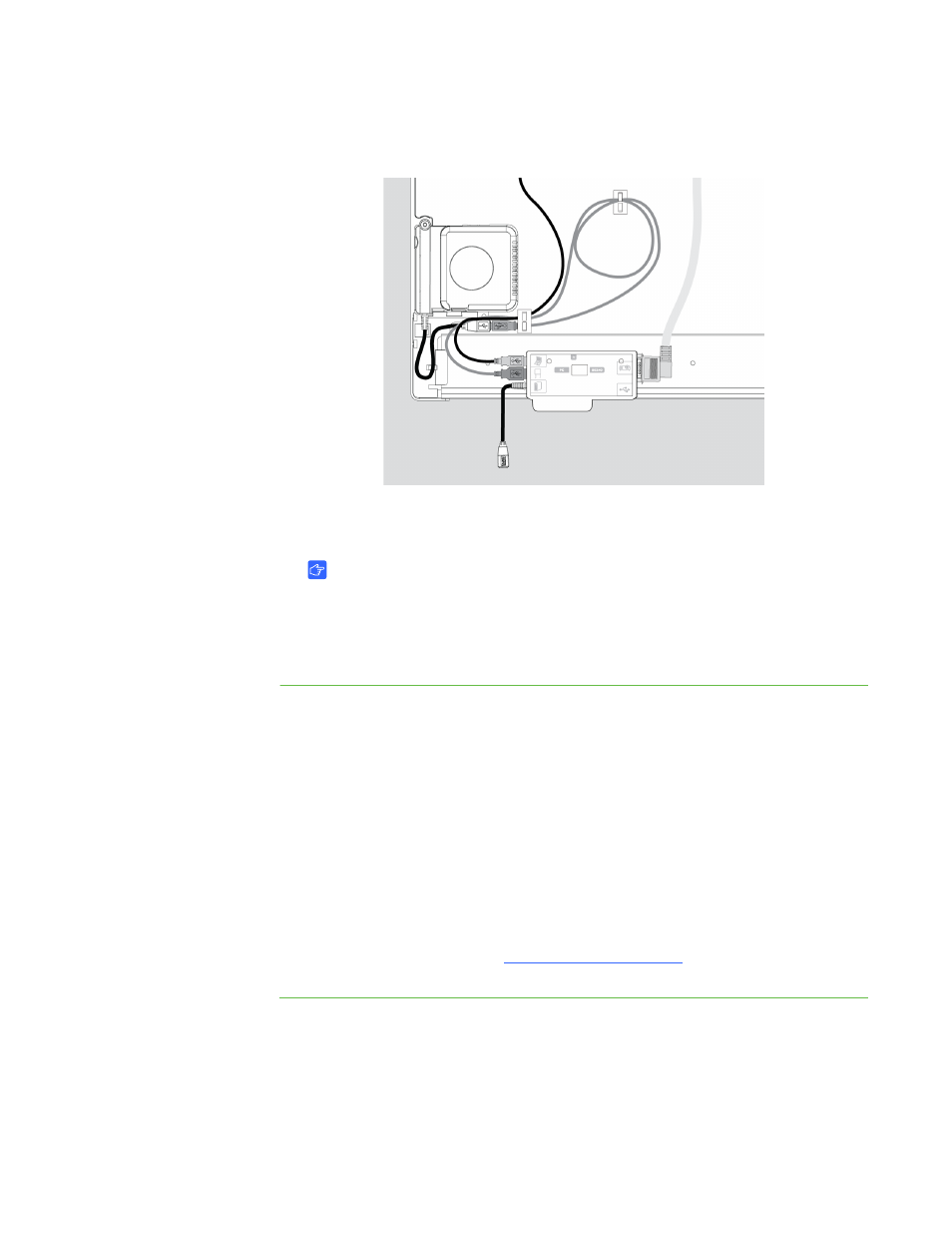

5. Connect the WMB’s USB A plug to the ECP, and loop the excess cable length into
the cable clip.
6. Use the WMB’s magnetic connection to attach the WMB to a metal surface, until
you need to attach a guest computer to it.
IMPORTANT
If you attach the WMB’s anchor point to the wall, make sure the anchor point
is set to a distance so that the WMB does not slip off the anchor point when
the HAWM-UX/UF is moving, or make sure the WMB has a minimum of 28"
(71.1 cm) excess straight length or a 14" (35.6 cm) loose loop of cable.
Connecting the SMART UX60 projector to the SBA-L
projection audio system
The HAWM-UX/UF is designed to accommodate mounting the SBA-L projection audio
system directly to the interactive whiteboard. That way, when the speakers rise and
descend with the HAWM-UX/UF’s and interactive whiteboard’s movement, there’s
less risk of damage to the audio connection and power cables. Therefore, SMART
recommends that you don’t mount the SBA-L projection audio system to the wall.
Before connecting the audio system to the projector, you must install the speaker
brackets, speakers and speaker cable clips according to the SBA-L Projection Audio
System Installation Instructions (
To connect your projector
to your speakers
1. Retrieve the 3.5 mm jack to dual channel audio output (two RCA jacks) cable from
the SBA-L packaging. Attach the 3.5 mm jack to the projector’s connection panel.
