36 | CHAPTER 4 – CABLING A 685ix OR D685ix SYSTEM TO A HAWM-UX/UF
Mounting your HAWM-UX/UF mobility
switch
The mobility switch controls the vertical movement of the HAWM-UX/UF and your
interactive whiteboard system. The mobility switch is wired directly to the rear panel of
the HAWM-UX/UF. Use the installation guide with the following procedure to place and
mount the mobility switch to your interactive whiteboard.
To mount the
mobility switch
1. Locate the HAWM-UX/UF mobility switch, and then remove and discard the
plastic bag that holds the mobility switch.

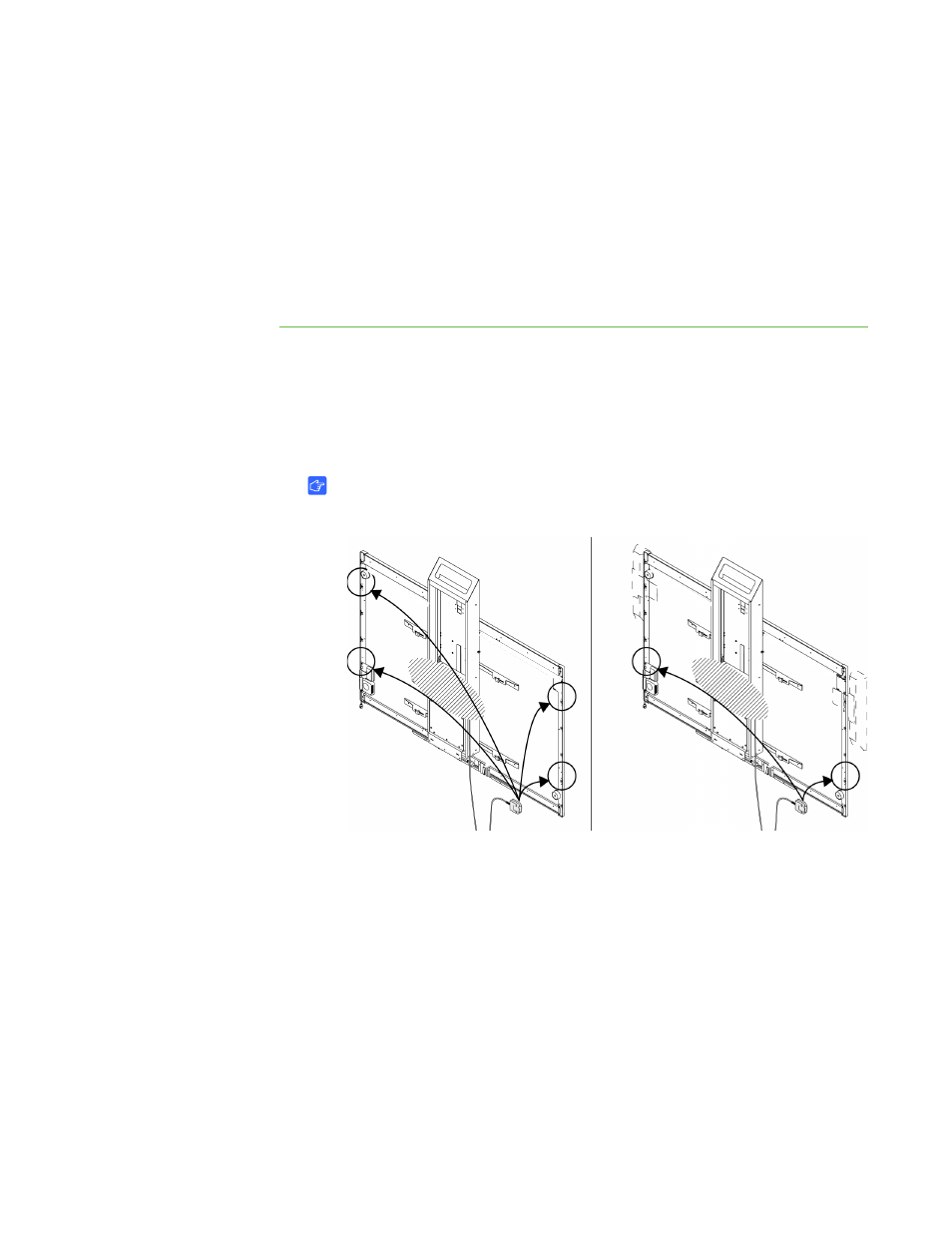

2. Choose the mobility switch’s mounting location. There are mounting holes on the
left and the right sides and near the top and the bottom of the interactive
whiteboard.
IMPORTANT
If you installed or plan to install the SBA-L Projection Audio System, mount
the mobility switch on the bottom mounting holes.
