9 | CHAPTER 2 – CABLING AN 885ix SYSTEM TO A HAWM-UX/UF
Using the SMART UX60 projector ECP for HAWM-UX/
UF-mounted components

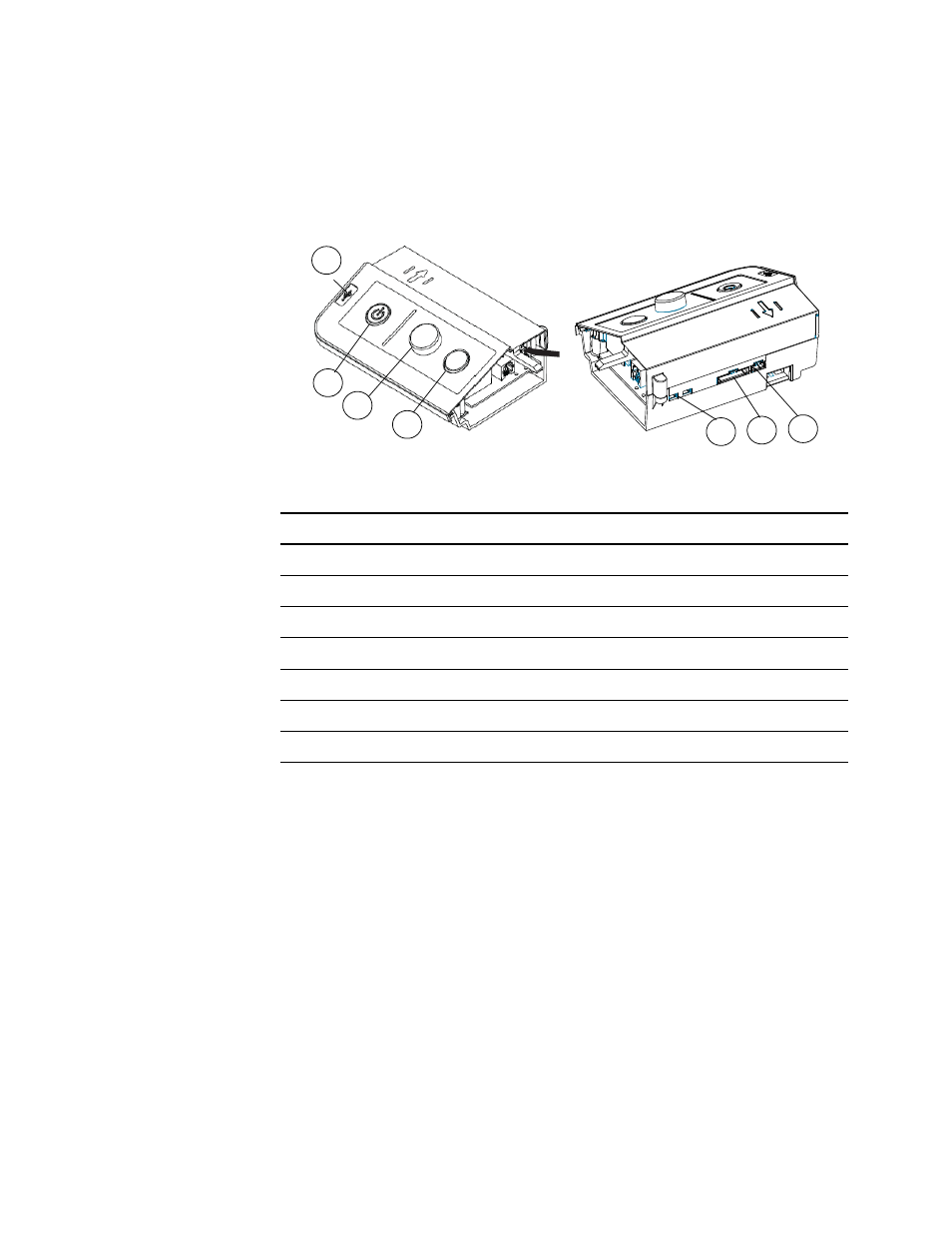

The following diagram and list identify the ECP ports that connect to
HAWM-UX/UF-mounted components.
Number Function
1 USB A jack (for USB drives)
2 Power button and status LED
3 Volume control
4 Input selection
5 Two mini USB B jacks (connect to computers 1 and 2)
6 11-pin connector (connects to ECP harness cable)
7 4-pin connector (for room control)
2
3
4
5
7 6
1
