31 |
CHAPTER 3 – CABLING AN 880i4 OR 885i4 SYSTEM TO A HAWM-UX/UF

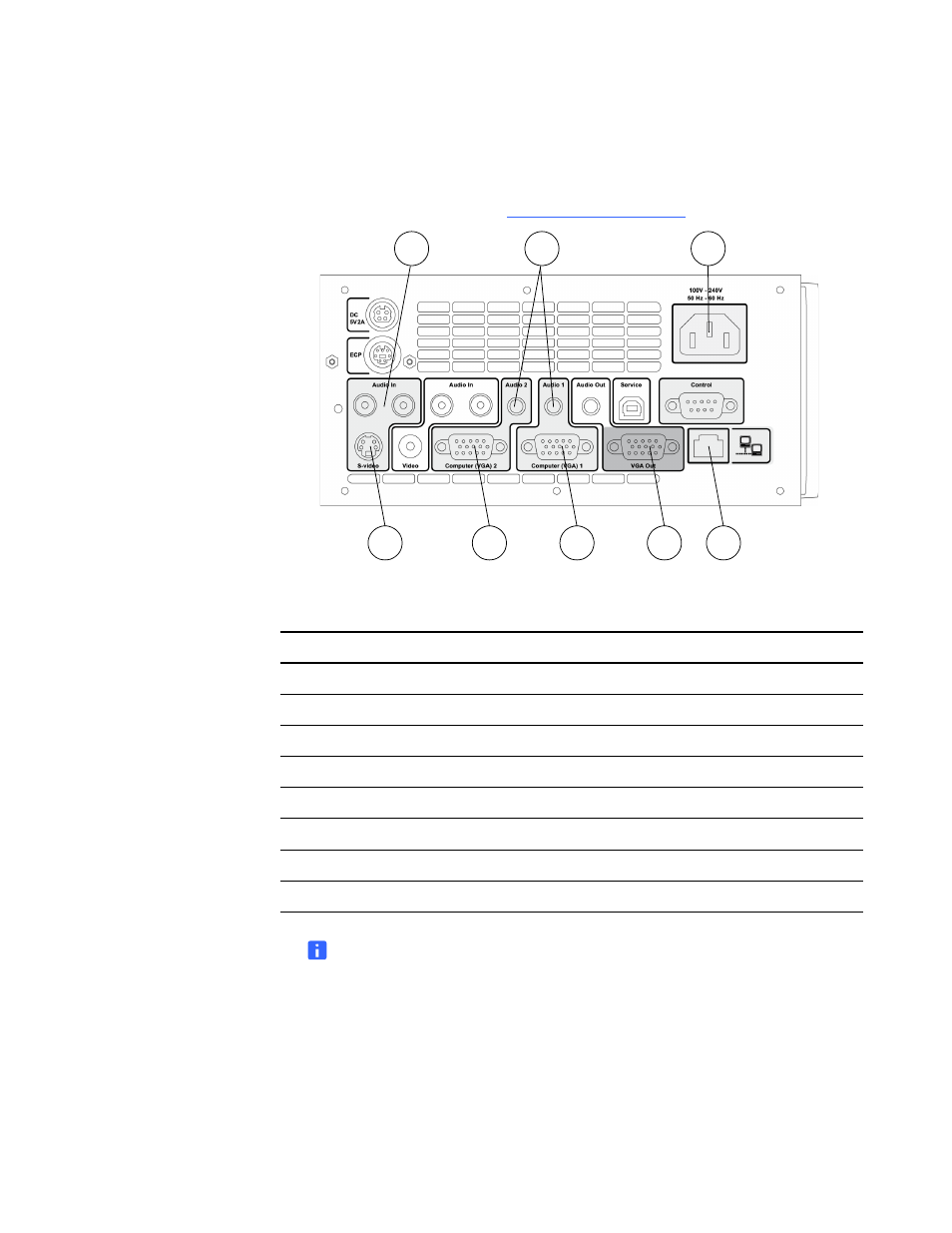

Remove the input/output cover on the left side of the projector and remove the cable
covers to access the projector connection panel and wire management clip . For more
information, see the SMART Board X800i4 Interactive Whiteboard System
Configuration and User’s Guide (
NOTE
SMART recommends that you use a VGA out connector on your source input
to simplify the cable placement.
Number Function
1
RCA jack audio left/right input (reserved for S-video input)
2
S-video input connector
3
Audio 1 and 2 (reserved for audio cable from pen tray)
4
HD-DB15 (VGA 2) connector (reserved for WMB)
5
HD-DB15 (VGA 1) connector
6
VGA output
7
Power socket
8
RJ45 jack (for network connections)
3
2
7
1
4
5
6
8
