Appendix
COMPUTER IN 1 / S-VIDEO IN/ COMPONENT IN
Terminal: Analog RGB (Mini D-sub 15 pin)
5 1 2 3 4
10 9 6 7 8
15 14 13 11 12

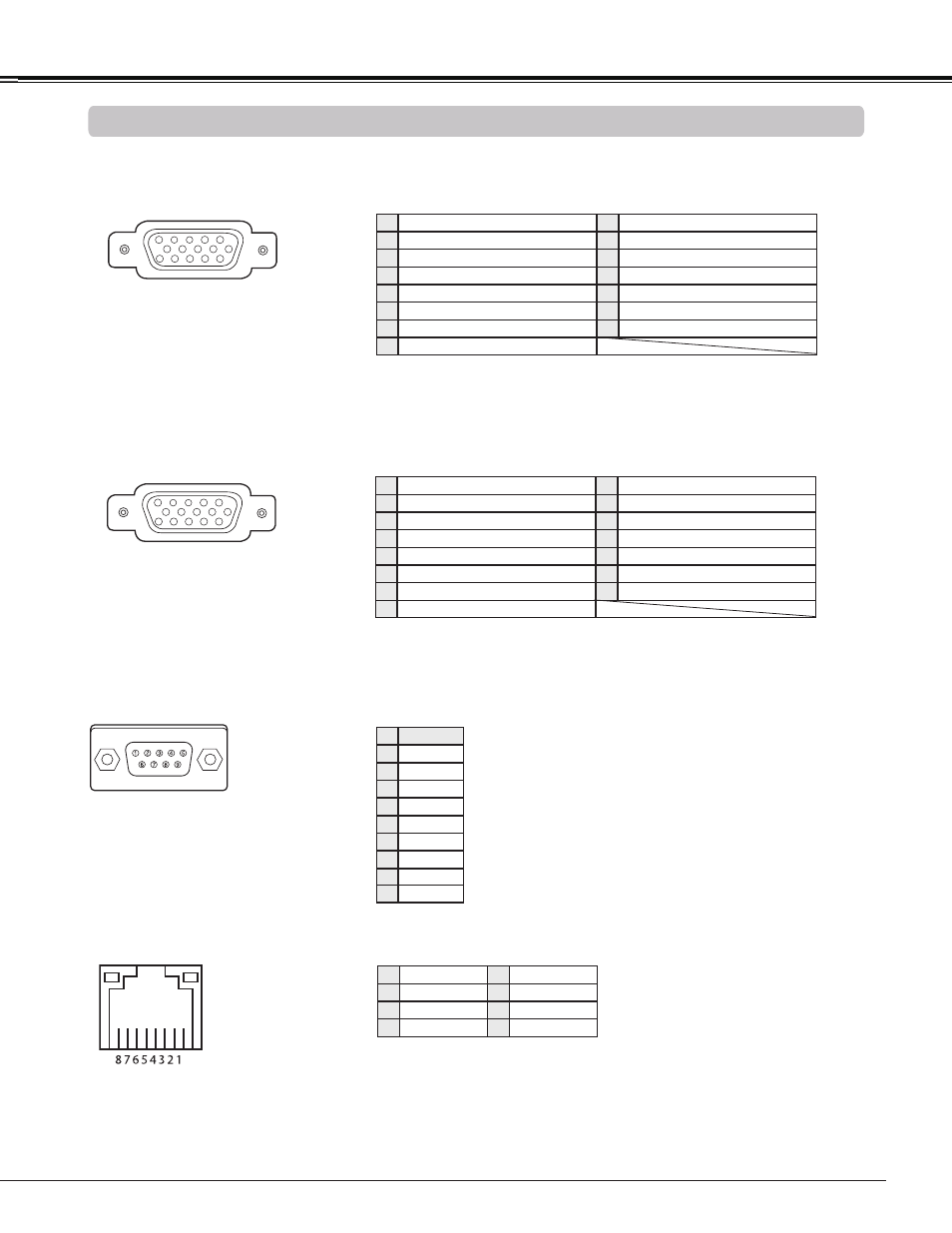

Configurations of Terminals
Red/Cr/S-C Input
Ground (Horiz.sync.)
Green/Y/S-Y Input
-----
Blue/Cb/--- Input
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
6
7
8
+5V Power
Horiz. sync. Input/Output (Composite H/V sync.)
Ground (Vert.sync.)
DDC Data
Ground
Vert. sync.
DDC Clock
9
1
10
12
11
14
15
RX –
TX +
TX –
RX +
2
4
5
6
7
8 1
LAN TERMINAL
-----
-----
-----
-----
CONTROL PORT CONNECTOR (D-sub 9 pin)
-----
R X D
T X D
-----
SG
-----
RTS
CTS
Serial
1
2
3
4
5
6
7
8
----- 9
COMPUTER IN 2/MONITOR OUT (ANALOG)
Terminal: Analog RGB (Mini D-sub 15 pin)
5 1 2 3 4
10 9 6 7 8
15 14 13 11 12
Red Input/Output
Ground (Horiz.sync.)
Green Input/Output
-----
Blue Input/Output
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
6
7
8
-----
Horiz. sync. Input/Output
Ground (Vert.sync.)
-----
-----
Vert. sync.
-----
9
1
10
12
11
14
15
