Installation
Connecting to a Computer
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting
cables.
Cables used for connection
• VGA Cables (Mini D-sub 15 pin) *(Only one cable is supplied.)
• Audio Cables
(*One cable is supplied; other cables are not supplied with the projector.)
✔ Note:
• Input sound to the AUDIO IN terminal when using the COMPUTER IN 1/ S-VIDEO IN / COMPONENT IN
and the COMPUTER IN 2/MONITOR OUT terminals as input.
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1 /S-VIDEO IN /COMPONENT IN and
not the COMPUTER IN 2/MONITOR OUT.

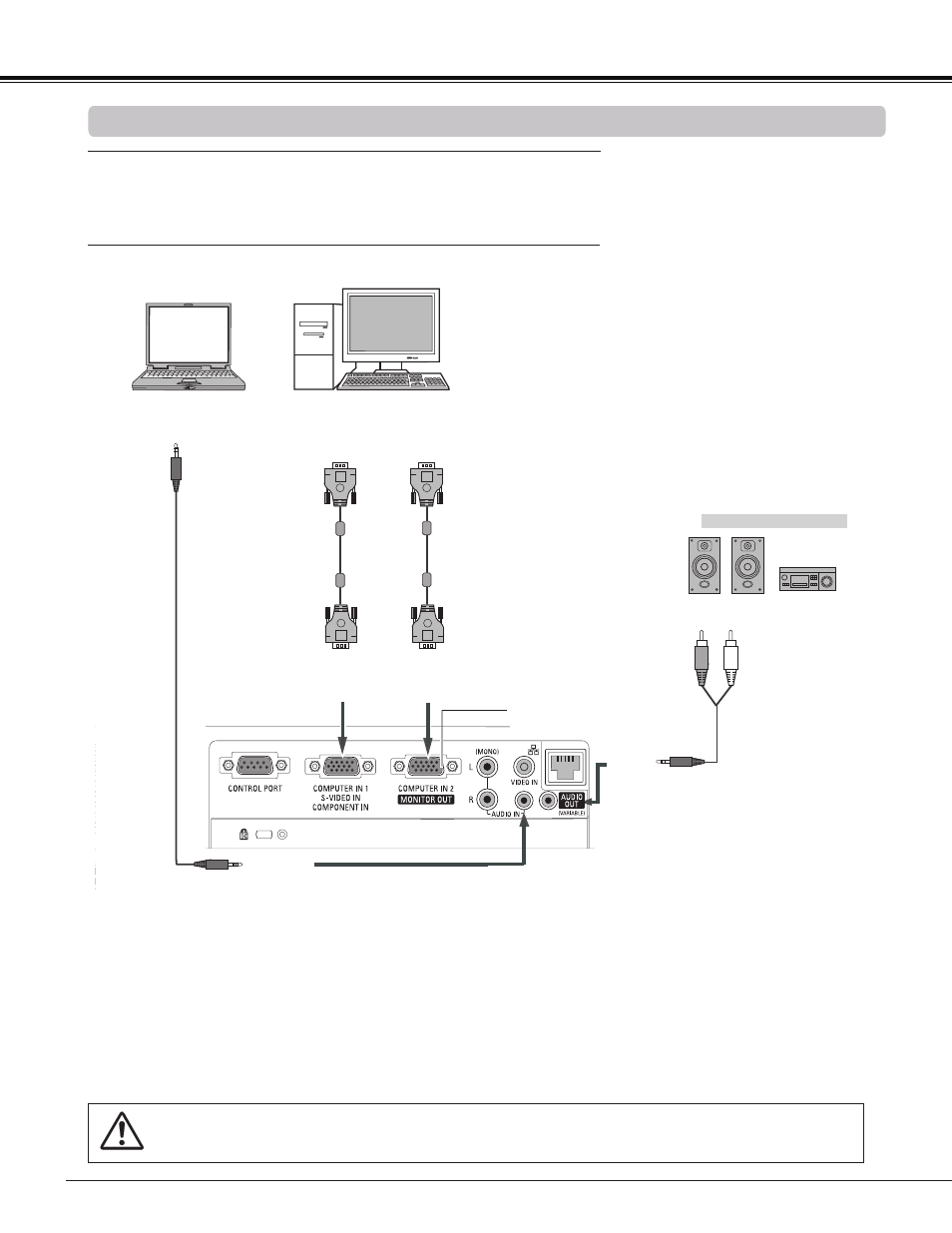

External Audio Equipment
Audio cable
(stereo)
Audio cable
(stereo)
Audio Output
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
Monitor Input
or
Monitor Output
COMPUTER IN 2 /
MONITOR OUT
VGA
cable
COMPUTER IN 1
/ S-VIDEO IN
/COMPONENT IN
VGA
cable
Monitor
Output
This terminal is switchable.
Set up the terminal as
either Computer input or
Monitor output. (See Page
49.)
