Positioning the Projector
For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the
screen.
Installation
✔ Note:
• The brightness in the room has a great influence on picture quality. It is recommended to limit ambient
lighting in order to obtain the best image.
• All measurements are approximate and may vary from the actual sizes.
Adjustable Foot
Adjustable Foot
Foot Lock Latch
Projection angle can be adjusted up to 10.0 degrees with
the adjustable foot.
Lift the front of the projector and push the foot lock
latch on the projector.
Release the foot lock latch to lock the adjustable foot
and rotate the adjustable foot to adjust the position and
tilt.
To retract the adjustable foot, lift the front of the
projector and push and undo the foot lock latch.
Keystone distortion of the projected image can be
corrected by menu operation.(see pages 23, 44-45)

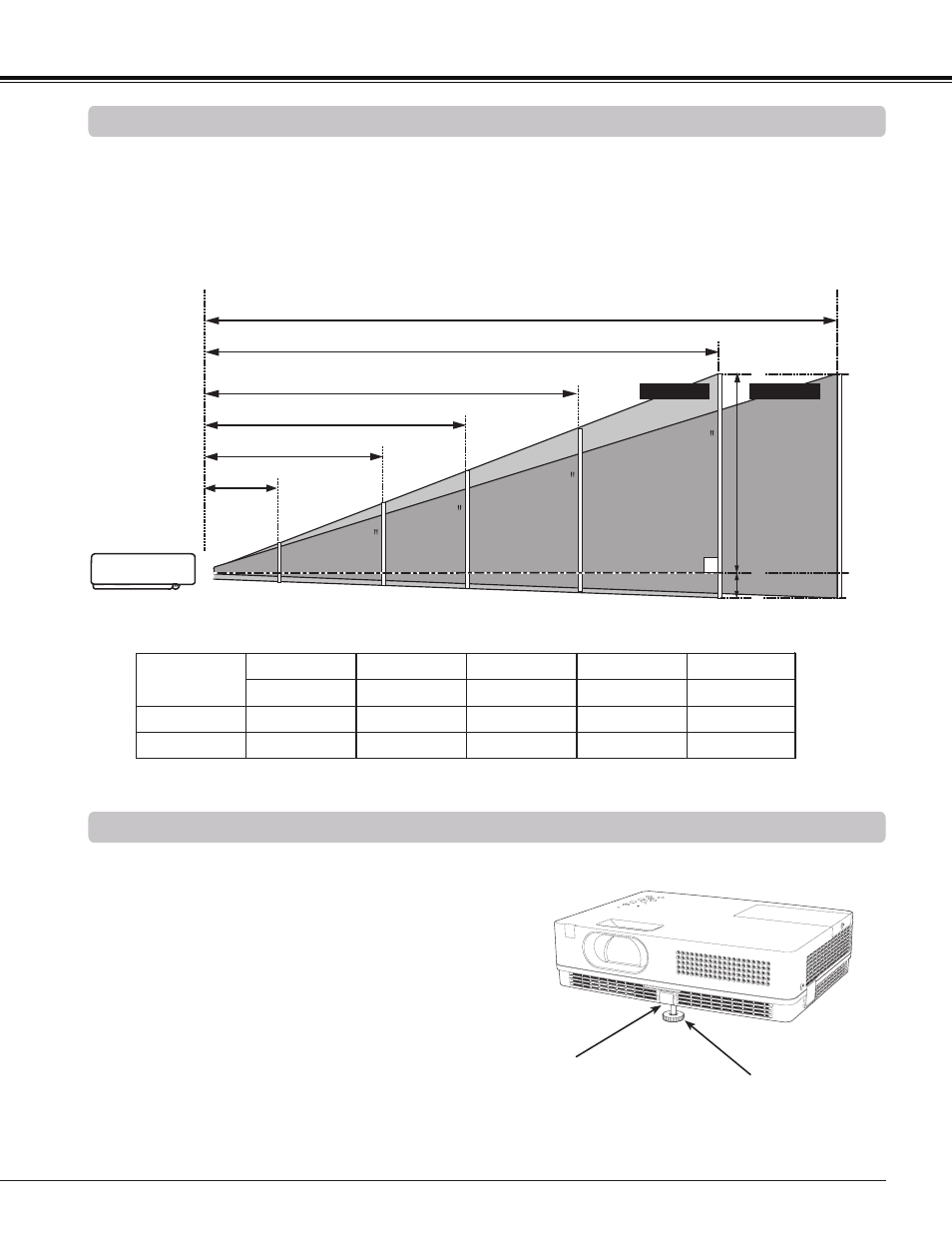

A
B
100"
150"
200"
250
167
125
83
300"(wide)
40"
300"(tele )
38.7'(11.80m)
32.3'(9.84m)
21.5'(6.55m)
16.1'(4.90m)
Max. Zoom Min. Zoom
A : B = 6 : 1
(Inch Diagonal)
10.7'(3.26m)
(Center)
4.3'(1.30m)
Screen Size
(W x H) mm
4 : 3 aspect ratio
40”
Zoom (max)
813 x 610
4.3'(1.30m)
100”
2032 x 1524
10.7'(3.26m)
150”
3048 x 2286
16.1'(4.90m)
200”
4064 x 3048
21.5'(6.55m)
300”
6096 x 4572
32.3'(9.84m)
Zoom (min) 5.1'(1.55m) 12.9'(3.92m) 19.4'(5.90m) 25.8(7.87m) 38.7'(11.80m)
