16
Installation

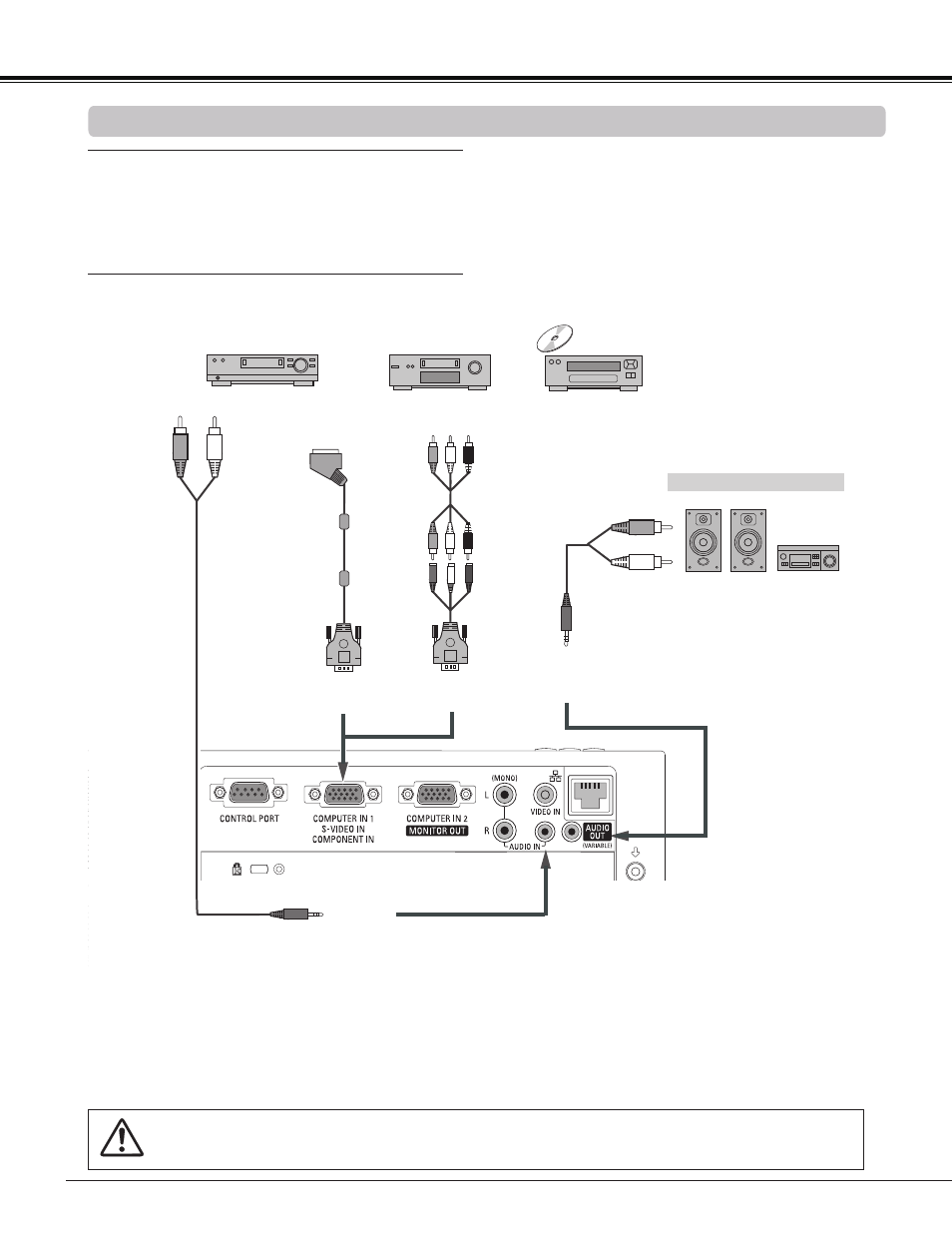

Connecting to Component Video and RGB (Scart) Equipment
✔ Note:
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 73 for ordering optional cables.
Cables used for connection
• Audio Cables
• Scart-VGA Cable
• Component Cable
• Component-VGA Cable
(Cables are not supplied with this projector.)
External Audio Equipment
AUDIO IN
Audio cable
(stereo)
Audio cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Audio Output RGB Scart 21-
pin Output
Scart-VGA
cable
Component-
VGA cable
AUDIO OUT
(stereo)
Component
cable
COMPUTER IN 1/ S-VIDEO IN / COMPONENT IN
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting
cables.
