“L” n1 n2 m1 m2 ...
1B 4C n1 n2 m1 m2 ...
Print high density graphics
Receipt printer: Prints a 1 (horizontal)
×
3 (vertical) dot bit image
for each dot of entered data. Data extending beyond
the right margin is ignored. The relationship
between the entered data and the actual printing is
shown below. The value of n1 + n2
×
256 is
between 1 and 576.
CODE
HEX
FUNCTION
D8
MSB

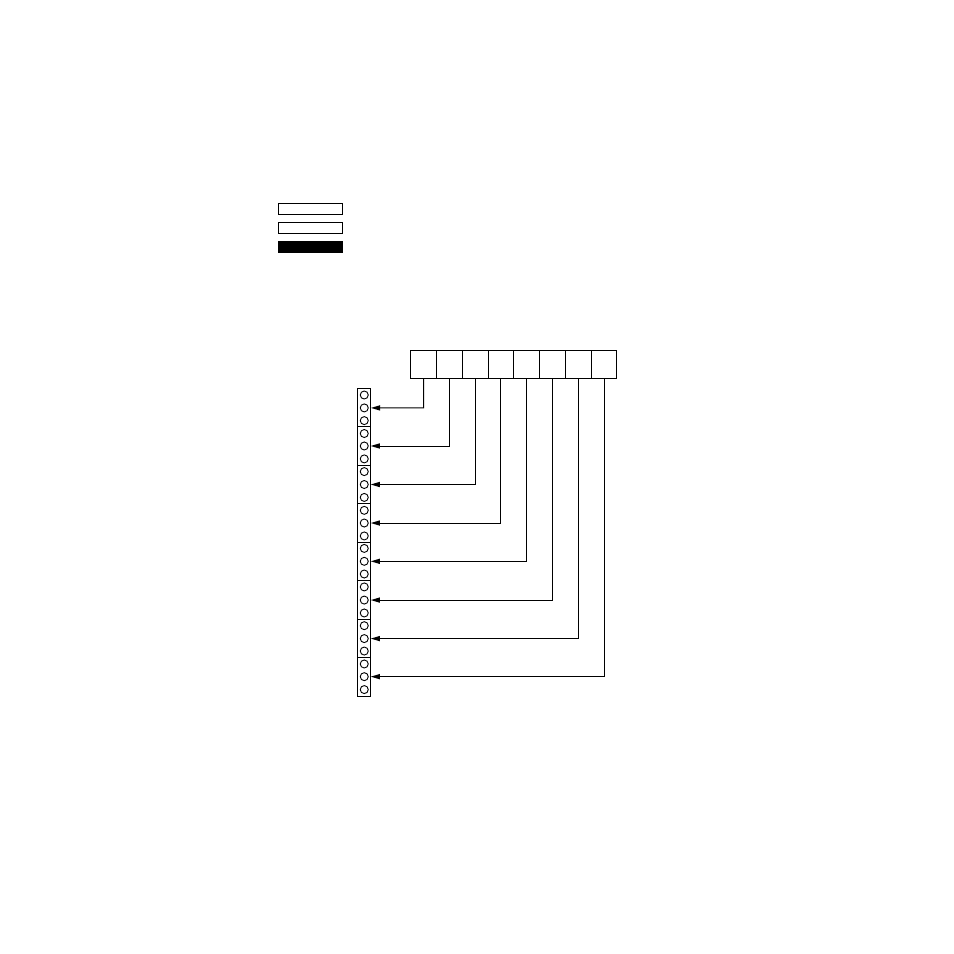

DOT Position
Image data LSB
D7 D6 D5 D4 D3 D2 D1
1
1
2
3
4
22
21
23
24
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
