Dot Graphics Printing
“K” n <0> m1 m2 ...
1B 4B n 00 m1 m2 ...
Print normal density graphics
Receipt printer: Prints a 3 (horizontal)
× 3 (vertical) dot bit image for
each dot of entered data. Data extending beyond the

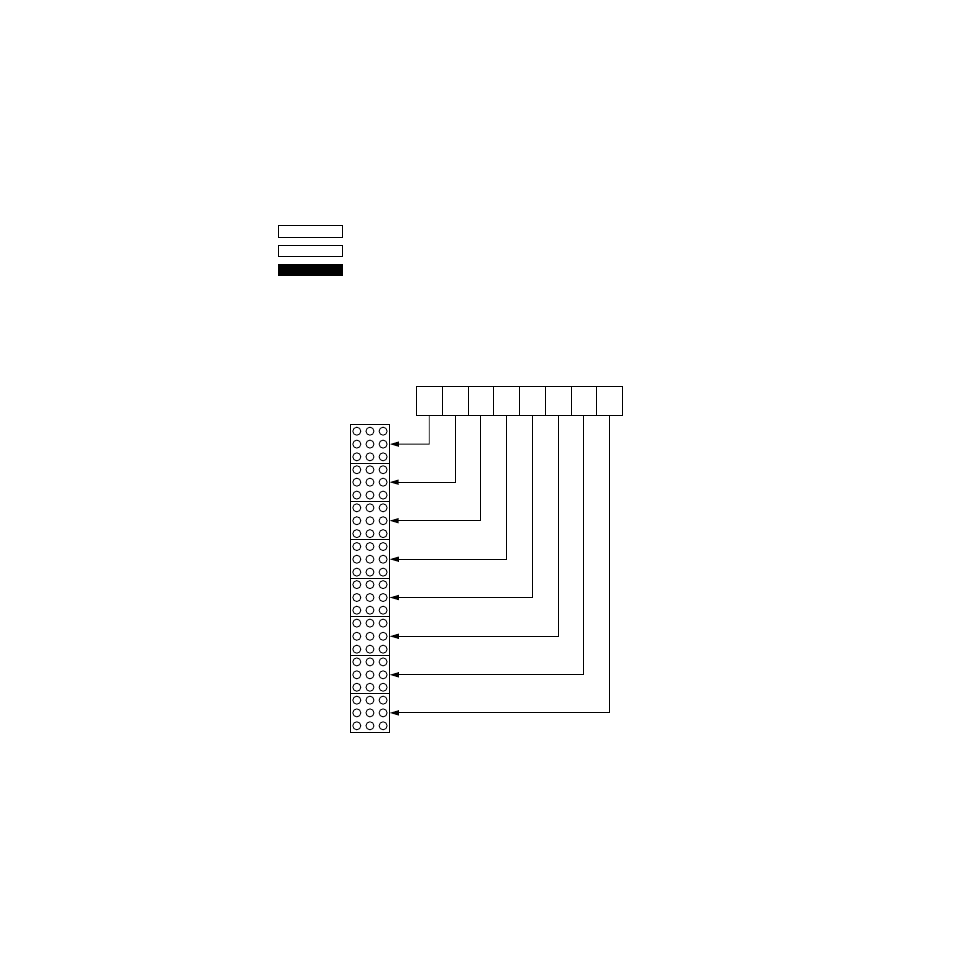

right margin is ignored. The relationship between
the entered data and the actual printing is shown
below. The value of n is between 1 and 192.
CODE
HEX
FUNCTION
D8
MSB
DOT Position
Image data LSB
D7 D6 D5 D4 D3 D2 D1
1
1
2
3
4
22
21
23
24
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2 3
