C4630 SE HOME AUDIO SYSTEM
Changing the Main Keypad Source Buttons
The S OURCE buttons on the C4630 SE Main Keypad are labeled to indicate the specific sources in use on the system. The
keypad comes with the following buttons already installed: T UNER , CD/DVD, S AT , TV/A UX . The keypad also comes with a
sheet of replacement S OURCE buttons that are labeled for a wide variety of common source components.
TT oo cc hh aa nn gg ee tt hh ee M M aa ii nn K K ee yy pp aa dd SS O O U U RR C C EE bbuuttttoonnss::
1. If the keypad is connected, disconnect it from the
C4630 SE and from the Numeric Keypad.
2. Use a screwdriver or similar tool to release the keypad
bezel tabs (see Figure 22).
3. Remove the keypad bezel and S OURCE buttons from the
keypad as shown in Figure 22.
IIm mppoorrttaanntt:: D Doo nnoott ttoouucchh tthhee eexxppoosseedd
ppoorrttiioonn ooff tthhee kkeeyyppaadd cciirrccuuiitt bbooaarrdd..
4. The four S OURCE buttons are a single unit. Use a razor
knife or similar tool to remove the button(s) you want
to replace.
5. Use a razor knife or similar tool to separate the
desired S OURCE button(s) from the included sheet of
replacement buttons.
6. Place all 4 of the desired Source buttons into the key-
pad bezel. The tabs on the buttons will fit-into the depressions adjacent to the openings on the back of the bezel
(see
Figure 23).
7. Snap the keypad bezel back into place on the keypad.
8. Test all buttons for free movement. If any of the buttons are tight or hang up, carefully remove,
realign and replace the bezel.
Insert Tool
Into Openings
Remove Bezel and Source Buttons

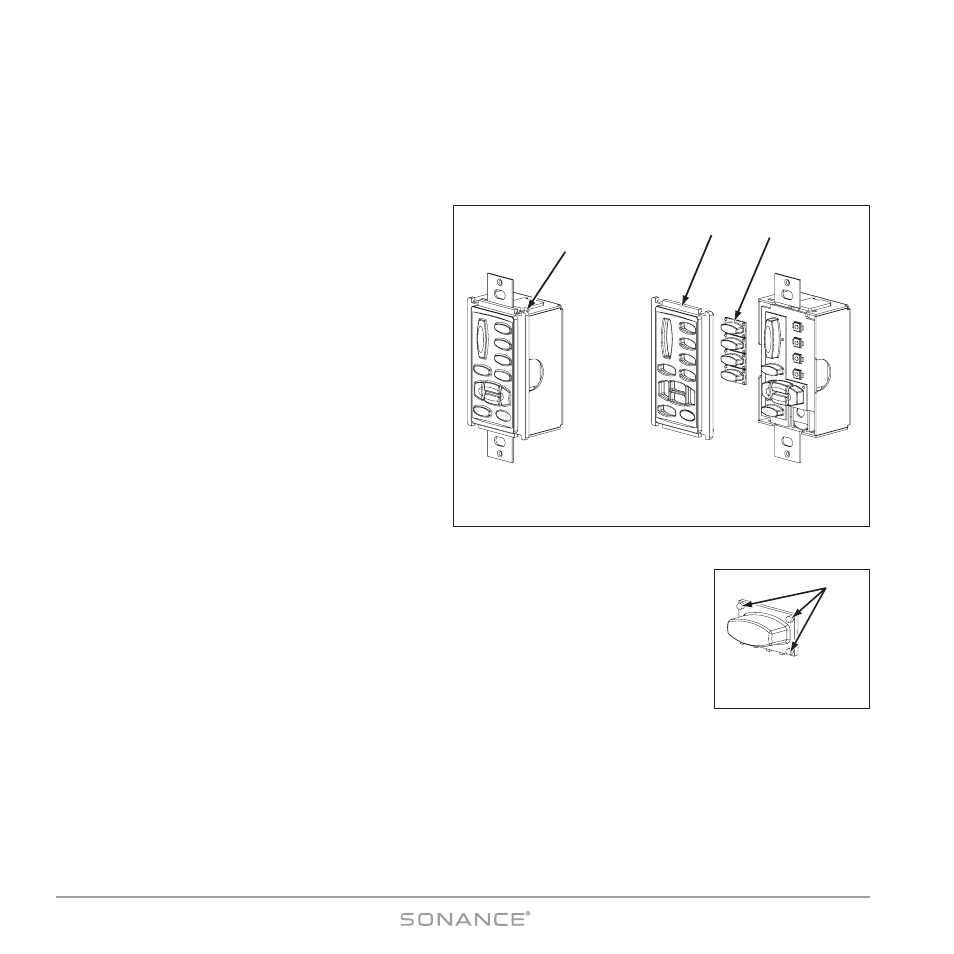

Figure 22:
Removing the Source Buttons
from the Main Keypad
Tabs
Figure 23:
Source Button Tabs
