18
C4630 SE HOME AUDIO SYSTEM
C4630 SE Keypad Controllers
As mentioned previously, the C4630 SE requires one or more
keypad controllers in each zone to operate. The C4630 SE Main
and Numeric Keypads (explained below) were designed
specifically to be used with the C4630 SE Controller.
Additionally, the C4630 SE can also be controlled by the
Sonance Navigator
® K2 LCD keypad and the Sonance Navigator
K1 keypad (see page 46).
C4630 SE Main Keypad (see Figure 14)
The C4630 SE Main Keypad lets you control the zone volume,
muting and select the active source, as well as providing
buttons for controlling the source component that’s active in the
zone. A Z
ONE OFF button is also provided. The Z ONE OFF
button’s LED color indicates the zone’s status:
RReedd::
Zone is OFF (C4630 SE is receiving power)
G Grreeeenn:: Zone is ON
O Orraannggee:: Connected IR receiver is receiving IR commands
((ffllaasshhiinngg)) or a keypad button is being pressed. This occurs
even if the Zone is turned OFF.
Each keypad button has three different actions: P RESS , P RESS -A ND -
H OLD and D OUBLE -P RESS . This allows each button to issue three
distinct commands or macros. Out-of-the-box the following but-
ton functions are available on the Main Keypad:
V
V O O LL U U M M EE U UPP//D DO OW WN N bbuuttttoonnss:: P
RESS = Volume UP/Down
M M U U TT EE bb uu tt tt oo nn :: P RESS = Mute/un-Mute the local zone;
P RESS -A ND -H OLD = Mute/un-Mute all zones designated for PARTY
MODE.
ZZoonnee SS
O O U U RR C C EE SS EE LL EE C C TT O O RR bbuuttttoonnss:: P RESS = Select that source in
the local zone; P RESS -A ND -H OLD = Select that source in all zones
designated for PARTY MODE. Pressing a Source Select button in
a zone that is OFF will turn that zone ON.
ZZ oo nn ee O
O FF FF bb uu tt tt oo nn :: Turns the local zone OFF
Additional P RESS , P RESS -A ND -H OLD , D OUBLE -P RESS , source component
control and macro trigger functions require programming with
the Sonance Control Manager software. The Sonance Control Manager can also be used to change any of the above out-
of-the-box button functions.
1 2
3 4
5 6
7 8
9 0
_ +
VOL
OFF
MUTE TV/AUX
TUNER
DVD/CD
SAT
= ^
^
^
^
C4630
MAIN
KEYPAD
RESERVED FOR NUMBERIC KEYPAD
PIN 14
PIN 1
•
1 2
C4630
NUMERIC
KEYPAD
CONNECTION TO MAIN KEYPAD
PIN 14
PIN 1
•
1 2
34 12 5 6
1. Zone Volume UP/DOWN Buttons
2. Zone Mute Button
3. Zone OFF Button
4. Zone Source Control Buttons
5. Zone IR Receiver Window
6. Zone Source Selector Buttons
(Source 1 – Source 4)
11. Numeric Buttons
12. “+” and “–” Buttons
Main Keypad
Front Panel
Numeric Keypad
Front Panel
9 78 10
7. IR Receiver Connection
8. RJ45 Connection Jack
9. Keypad Backlight Jumper
10. Ribbon Connector for
Numeric Keypad
Main Keypad
Rear Panel
13 14
13. Keypad Backlight Jumper
14. Ribbon Connector to
Main Keypad
Numeric Keypad
Rear Panel
11 12

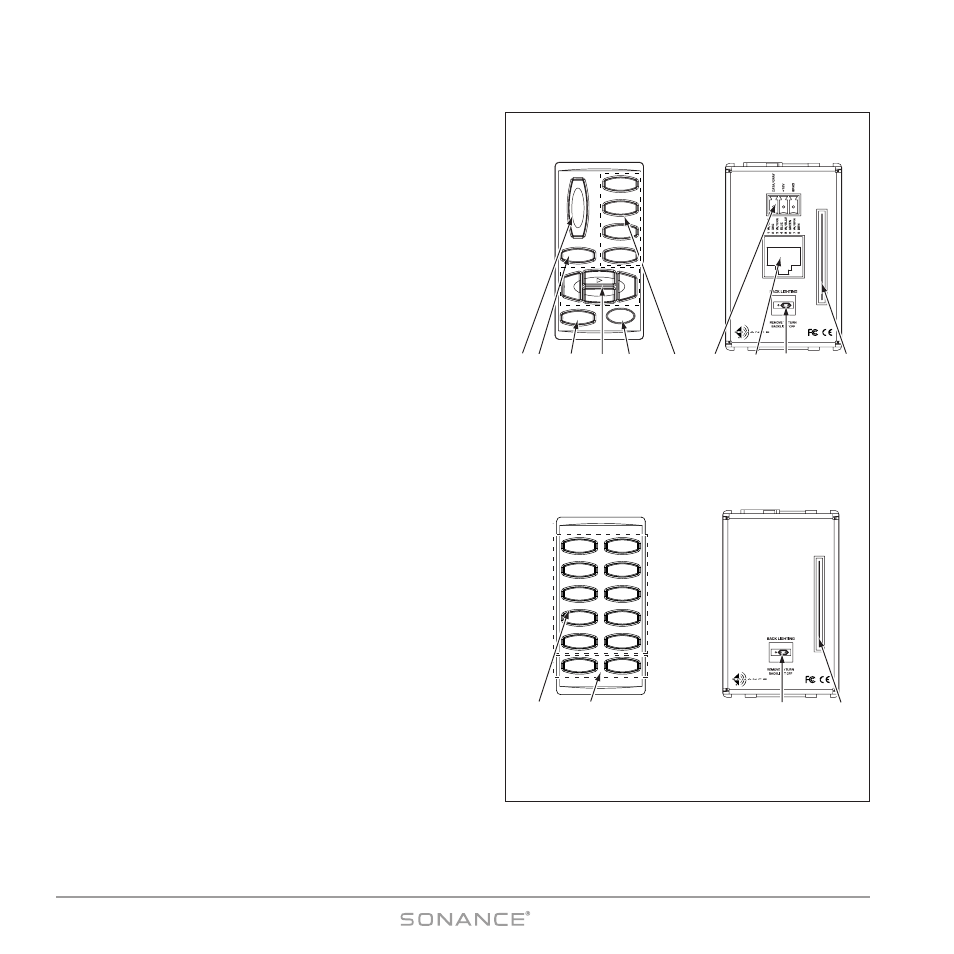

Figure 14:
C4630 SE Main and Numeric Keypads
