8
B U I LT- I N I N S TA L L AT I O N I N S T R U C T I O N S

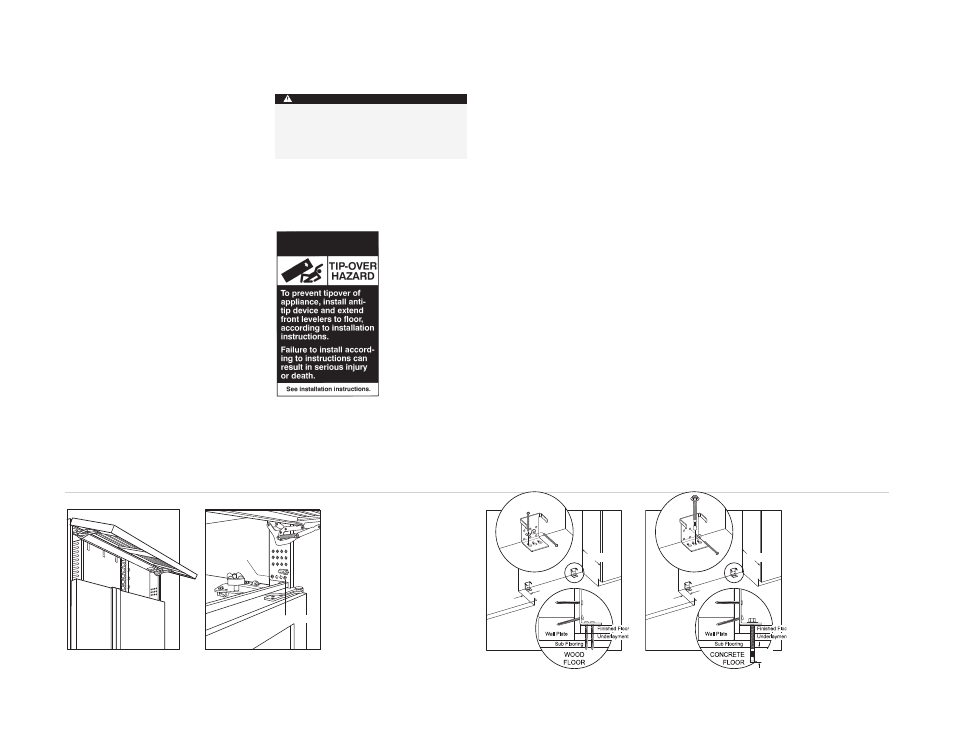

A N T I - T I P B R A C K E T I N S TA L L AT I O N
IMPORTANT NOTE: Placement of the anti-tip
brackets is critical to a stable installation. Failure
to properly position the anti-tip brackets will
prevent them from engaging the unit.
Back Grille
Screw
Front Grille Screw
Grille removal Grille mounting screws
G R I L L E R E M O VA L
In order to prevent damage to the grille and to
access the power cord, the top grille assembly
should be removed prior to moving the unit.
To remove the grille assembly, pull out on the
bottom edge of the grille and tilt it upward.
Loosen the back two grille mounting screws and
remove the front two grille mounting screws.
With the grille held firmly, pull forward to
remove. Refer to the illustrations below.
To reinstall the grille, insert the grille into
position and be sure that the grille catch tabs are
engaged. Reinstall the front two grille screws,
then retighten the back two grille screws. Check
for proper fit.
Wood floors
The two anti-tip brackets must be installed
exactly 610 mm from the front of the rough
opening to the back of the brackets and a
minimum of 102 mm from the sides of the rough
opening. This depth will increase to 665 mm for
a flush inset installation based on 19 mm deep
decorative panels. Proper placement will ensure
that the anti-tip brackets engage the anti-tip bar
at the back of the unit.
IMPORTANT NOTE: Both anti-tip brackets
MUST be used.
W O O D F L O O R A P P L I C A T I O N S
After properly locating the anti-tip brackets in the
rough opening, drill pilot holes 5 mm diameter
maximum in the wall studs and/or wall plate.
Use the # 12 x 64 mm PH pan HD zinc screws and
#12 flat washers to secure the brackets in place.
Be sure that the screws penetrate through the
flooring material and into wall studs or wall plate
a minimum of 19 mm. Refer to the illustration
below.
C O N C R E T E F L O O R A P P L I C A T I O N S
After properly locating the anti-tip brackets in the
rough opening, drill pilot holes 5 mm diameter
maximum in the wall studs and/or wall plate.
Then drill 10 mm diameter holes into the
concrete a minimum of 13 mm deep. Use the
# 12 x 64 mm PH pan HD zinc screws and #12 flat
washers to secure the brackets to the wall and
use the 10 mm–16 x 95 mm wedge anchors to
secure the brackets to the floor. Be sure that the
screws penetrate the wall studs or wall plate a
minimum of 19 mm. Refer to the illustration
below.
IMPORTANT NOTE: For either wood or concrete
floor applications, if the # 12 x 64 mm screws do
not hit a wall stud or the wall plate in any of the
back holes of the brackets, use the provided
# 8–18 x 32 mm PH truss HD screws and #12 flat
washers with the nylon zip-it wall anchors.
IMPORTANT NOTE: In some installations the
subflooring or finished floor may necessitate
angling the screws used to fasten the anti-tip
brackets to the back wall.
102 mm
MIN
610 mm
13 mm
MIN
Concrete floors
102 mm
MIN
610 mm
A C C E S S O R I E S
Optional acces-
sories are available
through your
Sub-Zero dealer. To
obtain local dealer
information, visit
our website,
subzero.com.
To prevent the unit from tipping forward and
provide a stable installation, the unit must be
secured in place with the anti-tip brackets
shipped with the unit.
WARNING
