6

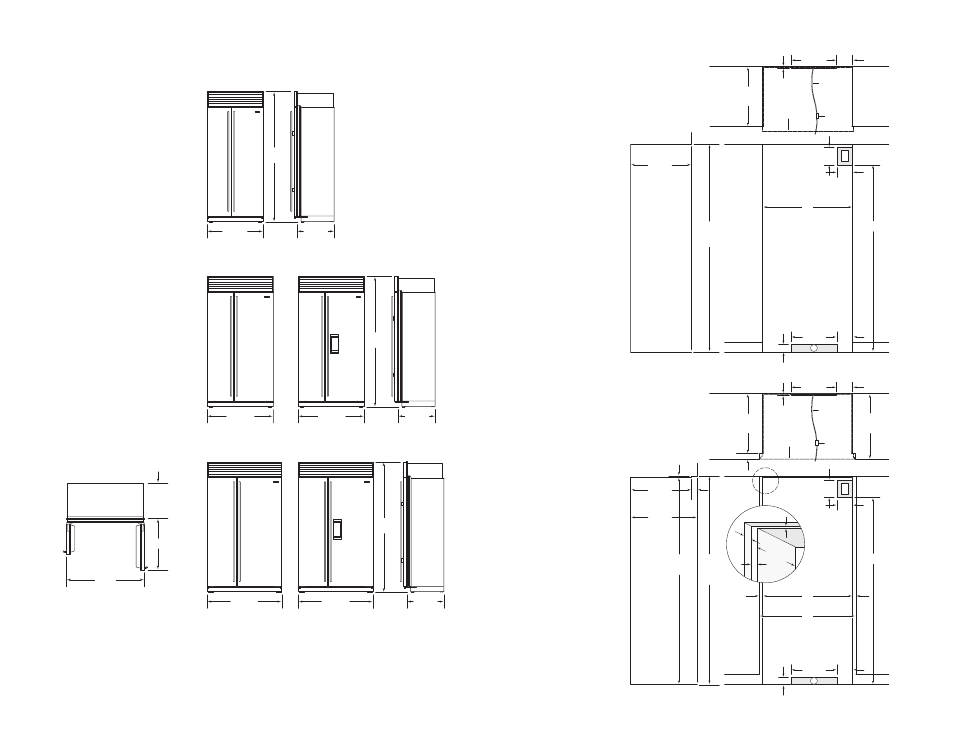

B U I LT- I N I N S TA L L AT I O N S P E C I F I C AT I O N S
D O O R C L E A R A N C E
Side-by-Side Models
A
Model ICBBI-36S 527 mm
Model ICBBI-42S 649 mm
Model ICBBI-42SD 649 mm
Model ICBBI-48S 743 mm
Model ICBBI-48SD 743 mm
Door clearance is based on stainless
steel door and handle dimensions.
O V E R A L L D I M E N S I O N S
Side-by-Side Models
Model ICBBI-36S
W H D
914 mm 2138 mm 610 mm
Model ICBBI-42S
W H D
1067 mm 2138 mm 610 mm
Model ICBBI-42SD with Dispenser
W H D
1067 mm 2138 mm 610 mm
Model ICBBI-48S
W H D
1219 mm 2138 mm 610 mm
Model ICBBI-48SD with Dispenser
W H D
1219 mm 2138 mm 610 mm
Unit dimensions may vary by ± 3 mm.
914 mm
2134
mm
610 mm
1067 mm
1219 mm
1067 mm
2134
mm
610 mm
606 mm
BEHIND
FRAME
WIDTH
OF UNIT
A
1219 mm
2134
mm
610 mm
Model ICBBI-36S
Model ICBBI-42S Model ICBBI-42SD
Model ICBBI-48S Model ICBBI-48SD
Stainless steel design shown.
I N S T A L L A T I O N S P E C I F I C A T I O N S
Side-by-Side Models —
Overlay (non-flush inset) and Stainless Steel
A
Model ICBBI-36S 902 mm
Model ICBBI-42S 1054 mm
Model ICBBI-42SD 1054 mm
Model ICBBI-48S 1207 mm
Model ICBBI-48SD 1207 mm
Dimensions are for finished rough openings.
I N S T A L L A T I O N S P E C I F I C A T I O N S
Side-by-Side Models —
Flush Inset Application
A B
Model ICBBI-36S 902 mm 965 mm
Model ICBBI-42S 1054 mm 1118 mm
Model ICBBI-42SD 1054 mm 1118 mm
Model ICBBI-48S 1207 mm 270 mm
Model ICBBI-48SD 1207 mm 1270 mm
Dimensions are for finished rough openings.
1918 mm
178
mm
152
mm
E
LOCATE
ELECTRICAL
WITHIN
SHADED AREA
457 mm
W
LOCATE WATER SUPPLY
WITHIN SHADED AREA
152
mm
FRONT VIEW SIDE VIEW
2127 mm
OPENING
HEIGHT
A
OPENING WIDTH
76 mm
610 mm
OPENING
DEPTH
13 mm
457 mm* 152
mm
610 mm
OPENING
DEPTH
SHUT-OFF
VALVE
OUTLINE OF
OVERLAY
OR STAINLESS
STEEL MODEL
TOP VIEW * ANTI-TIP BRACKET MUST NOT
INTERFERE WITH WATER LINE.
REFER TO INSTALLATION
INSTRUCTIONS FOR COMPLETE
DETAILS.
EXTEND WATER LINE APPROX
914 mm FROM BACK WALL.
WATER LINE
1918 mm
178
mm
152
mm
E
LOCATE
ELECTRICAL
WITHIN
SHADED AREA
13 mm
457 mm* 152
mm
610 mm
OPENING
DEPTH
665 mm
FLUSH INSET
DEPTH
SHUT-OFF
VALVE
OUTLINE
OF FLUSH INSET
APPLICATION WITH
19 mm PANEL
457 mm
W
LOCATE WATER SUPPLY
WITHIN SHADED AREA
152
mm
FRONT VIEW SIDE VIEW
TOP VIEW
2127 mm
OPENING
HEIGHT
2134
mm
FLUSH
INSET
HEIGHT
6 mm
56 mm**
76 mm
A
OPENING WIDTH
B
FLUSH INSET WIDTH
32
mm
32
mm
56
mm**
610 mm
OPENING
DEPTH
665 mm
FLUSH INSET
DEPTH
* ANTI-TIP BRACKET MUST NOT
INTERFERE WITH WATER LINE.
REFER TO INSTALLATION
INSTRUCTIONS FOR COMPLETE
DETAILS.
**ASSUMES 19 mm PANEL
THICKNESS.
EXTEND WATER LINE APPROX
914 mm FROM BACK WALL.
WATER LINE
6
mm
32
mm
FLUSH INSET
DETAIL
56
mm
610 mm
OPENING
DEPTH
