O V E R L A Y P A N E L S
Panel specifications
are for Built-In
overlay (O) models.
Additional panel infor-
mation can be found
in the Built-In Design
Guide. Check our
website at
subzero.com.
C
C C
H
W
H
D
H
W
H
C
W
H
C C
D
W
H

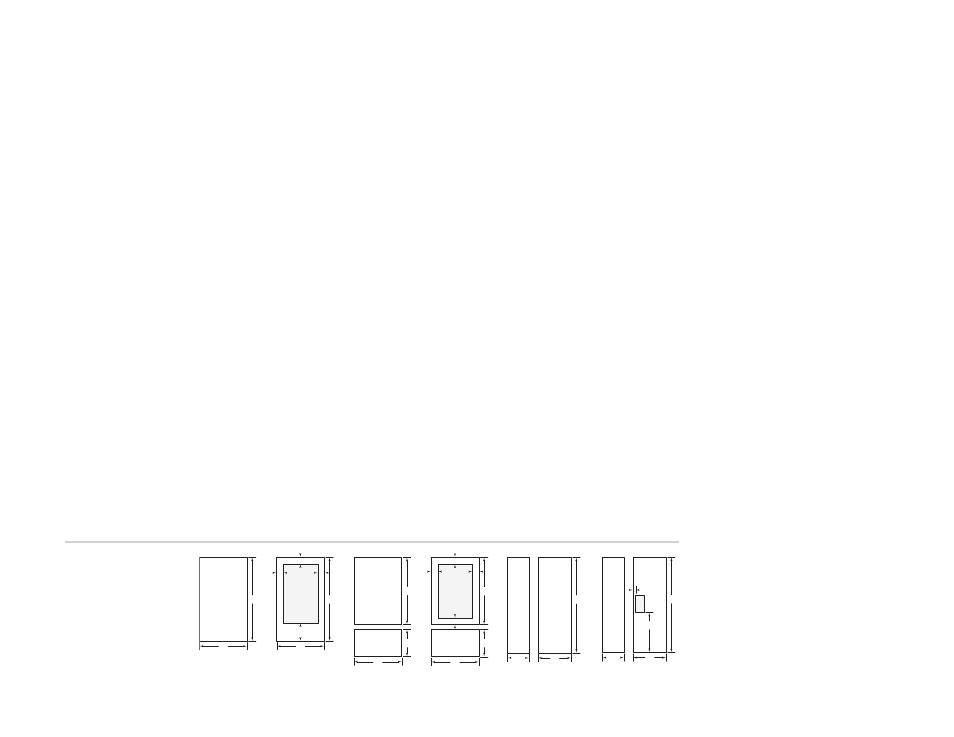

O V E R L AY D O O R PA N E L S
All Refrigerator | All Freezer Overlay (O) Models
Model ICBBI-36R W H
Refrigerator Overlay Panel 914 mm 1772 mm
Refrigerator Spacer Panel 892 mm 1751 mm
Refrigerator Backer Panel 908 mm 1767 mm
Model ICBBI-36RG W H
Refrigerator Overlay Panel 914 mm 1772 mm
Refrigerator Spacer Panel 892 mm 1751 mm
Refrigerator Backer Panel 908 mm 1767 mm
Window Cut-Out Dimensions TBD TBD
Window Cut-Out Location C TBD D TBD
Model ICBBI-36F W H
Refrigerator Overlay Panel 914 mm 1772 mm
Refrigerator Spacer Panel 892 mm 1751 mm
Refrigerator Backer Panel 908 mm 1767 mm
IMPORTANT NOTE: Panel specifications are for Built-In
overlay/flush inset models in a standard overlay installation.
O V E R L AY D O O R PA N E L S
Over-and-Under Overlay (O) Models
Model ICBBI-30U W H
Refrigerator Overlay Panel 762 mm 1273 mm
Refrigerator Spacer Panel 740 mm 1253 mm
Refrigerator Backer Panel 756 mm 1268 mm
Freezer Overlay Panel 762 mm 483 mm
Freezer Spacer Panel 740 mm 459 mm
Freezer Backer Panel 756 mm 475 mm
Model ICBBI-30UG W H
Refrigerator Overlay Panel 762 mm 1273 mm
Refrigerator Spacer Panel 740 mm 1253 mm
Refrigerator Backer Panel 756 mm 1268 mm
Freezer Overlay Panel 762 mm 483 mm
Freezer Spacer Panel 740 mm 459 mm
Freezer Backer Panel 756 mm 475 mm
Window Cut-Out Dimensions TBD TBD
Window Cut-Out Location C TBD D TBD
Model ICBBI-36U W H
Refrigerator Overlay Panel 914 mm 1273 mm
Refrigerator Spacer Panel 892 mm 1253 mm
Refrigerator Backer Panel 908 mm 1268 mm
Freezer Overlay Panel 914 mm 483 mm
Freezer Spacer Panel 892 mm 459 mm
Freezer Backer Panel 908 mm 475 mm
Model ICBBI-36UG W H
Refrigerator Overlay Panel 914 mm 1273 mm
Refrigerator Spacer Panel 892 mm 1253 mm
Refrigerator Backer Panel 908 mm 1268 mm
Freezer Overlay Panel 914 mm 483 mm
Freezer Spacer Panel 892 mm 459 mm
Freezer Backer Panel 908 mm 475 mm
Window Cut-Out Dimensions TBD TBD
Window Cut-Out Location C TBD D TBD
IMPORTANT NOTE: Panel specifications are for Built-In
overlay/flush inset models in a standard overlay installation.
Models ICBBI-30U
and ICBBI-36U
Models ICBBI-30UG
and ICBBI-36UG
Model ICBBI-36RG Models ICBBI-36R
and ICBBI-36F
O V E R L AY D O O R PA N E L S
Side-by-Side Overlay (O) Models
Model ICBBI-36S W H
Refrigerator Overlay Panel 510 mm 1772 mm
Refrigerator Spacer Panel 487 mm 1751 mm
Refrigerator Backer Panel 503 mm 1767 mm
Freezer Overlay Panel 398 mm 1772 mm
Freezer Spacer Panel 376 mm 1751 mm
Freezer Backer Panel 392 mm 1767 mm
Models ICBBI-42S and ICBBI-42SD H
Refrigerator Overlay Panel 637 mm 1772 mm
Refrigerator Spacer Panel 614 mm 1751 mm
Refrigerator Backer Panel 630 mm 1767 mm
Freezer Overlay Panel 424 mm 1772 mm
Freezer Spacer Panel 402 mm 1751 mm
Freezer Backer Panel 418 mm 1767 mm
Models ICBBI-48S and ICBBI-48SD H
Refrigerator Overlay Panel 730 mm 1772 mm
Refrigerator Spacer Panel 708 mm 1751 mm
Refrigerator Backer Panel 724 mm 1767 mm
Freezer Overlay Panel 483 mm 1772 mm
Freezer Spacer Panel 460 mm 1751 mm
Freezer Backer Panel 476 mm 1767 mm
Models ICBBI-42SD and ICBBI-48SD H
Glasswell Cut-Out Dimensions 149 mm 316 mm
Glasswell Location (Overlay) E 51 mm F 732 mm
Glasswell Location (Spacer) E 40 mm F 721 mm
Glasswell Location (Backer) E 48 mm F 729 mm
For Models ICBBI-42SD and ICBBI-48SD, panel thickness in
the glasswell area can range from 6 mm to a maximum of 29
mm. If the panel is thicker, you must rout out a minimum 6
mm flat landing area to accommodate the bezel surrounding
the glasswell.
IMPORTANT NOTE: Panel specifications are for Built-In
overlay/flush inset models in a standard overlay installation.
W W
H
Models ICBBI-36S,
ICBBI-42S and
ICBBI-48S
Models ICBBI-42SD
and ICBBI-48SD
W W
H
E
F
O V E R L AY G R I L L E PA N E L S
Overlay/Flush Inset Models
Models ICBBI-30U and ICBBI-30UG
Grille Overlay Panel Width 762 mm
Grille Spacer Panel Width 740 mm
Grille Backer Panel Width 756 mm
Models ICBBI-36R, ICBBI-36RG, ICBBI-36F, ICBBI-36U,
ICBBI-36UG and ICBBI-36S
Grille Overlay Panel Width 914 mm
Grille Spacer Panel Width 892 mm
Grille Backer Panel Width 908 mm
Model ICBBI-42S and ICBBI-42SD
Grille Overlay Panel Width 1067 mm
Grille Spacer Panel Width 1045 mm
Grille Backer Panel Width 1060 mm
Model ICBBI-48S and ICBBI-48SD
Grille Overlay Panel Width 1219 mm
Grille Spacer Panel Width 1197 mm
Grille Backer Panel Width 1213 mm
2108 mm Overall Unit Height
Grille Overlay Panel Height 210 mm
Grille Spacer Panel Height 186 mm
Grille Backer Panel Height 202 mm
2134 mm Overall Unit Height (standard)
Grille Overlay Panel Height 235 mm
Grille Spacer Panel Height 211 mm
Grille Backer Panel Height 227 mm
2235 mm Overall Unit Height
Grille Overlay Panel Height 337 mm
Grille Spacer Panel Height 313 mm
Grille Backer Panel Height 329 mm
For overlay grille panel sizes, use width dimension listed
for your model and height dimension for overall unit height.
2134 mm overall unit height is standard.
D O U B L E O V E R L AY G R I L L E PA N E L S
Dual Installation with 2235 mm Overall Height
Two 762 mm Wide Units W H
Double Grille Overlay Panel 1530 mm 235 mm
Double Grille Spacer Panel 1508 mm 211 mm
Double Grille Backer Panel 1524 mm 227 mm
Two 914 mm Wide Units W H
Double Grille Overlay Panel 1835 mm 235 mm
Double Grille Spacer Panel 1813 mm 211 mm
Double Grille Backer Panel 1829 mm 227 mm
IMPORTANT NOTE: Panel specifications are for Built-In
overlay/flush inset models in a standard overlay installation.
O V E R L AY PA N E L S P E C I F I C AT I O N S
