15

S I D E PA N E L I N S TA L L AT I O N

S I D E PA N E L I N S TA L L AT I O N

IMPORTANT NOTE: Side panels will need to be
installed before the unit is placed in its final
position.

When installing a Built-In unit with side panels,
an accessory side panel kit is necessary. A kit is
available for installation of stainless steel side
panels and one for installing custom wood side
panels. Refer to the instructions with the stain-
less steel side panel kit when installing stainless
side panels. The following information is in refer-
ence to installation of custom wood side panels.

W O O D S I D E P A N E L S

Routing will be necessary on the side panel in
order for it to fit flush against the side of the unit.
Refer to the illustration below for routing detail.
If you have Model ICBBI-30U, ICBBI-30UG, ICBBI-
36U or ICBBI-36UG, extra routing will be neces-
sary to avoid having the panel hit the refrigerator
lower hinge plate. The illustration on the follow-
ing page points out the areas where extra
routing is needed for these models.

Install the brackets provided in the kit onto the
side panel in the locations shown in the specifi-
cations illustration below. The front brackets are
meant to engage the mainframe and the back
brackets will wrap behind the unit when the
panel is in place. Screws are provided in the kit.
If the provided screws will not work for your
installation, you will need to provide the neces-
sary screws to attach the brackets.

IMPORTANT NOTE: When a side panel is
mounted on the hinge side of an over-and-under
unit, it will be necessary to move the bottom
front bracket down from the location shown in
the illustration on the following page to avoid
interfering with the hinge plate.

Place the panel at a 75° angle and engage the
front brackets into the mainframe. Swing the
panel inward, being sure that the front brackets
engage the mainframe. With the panel in
position, attach the rear brackets to the rear of
the unit with the screws provided. Check to see
that the panel is secure. Refer to the illustration
below.

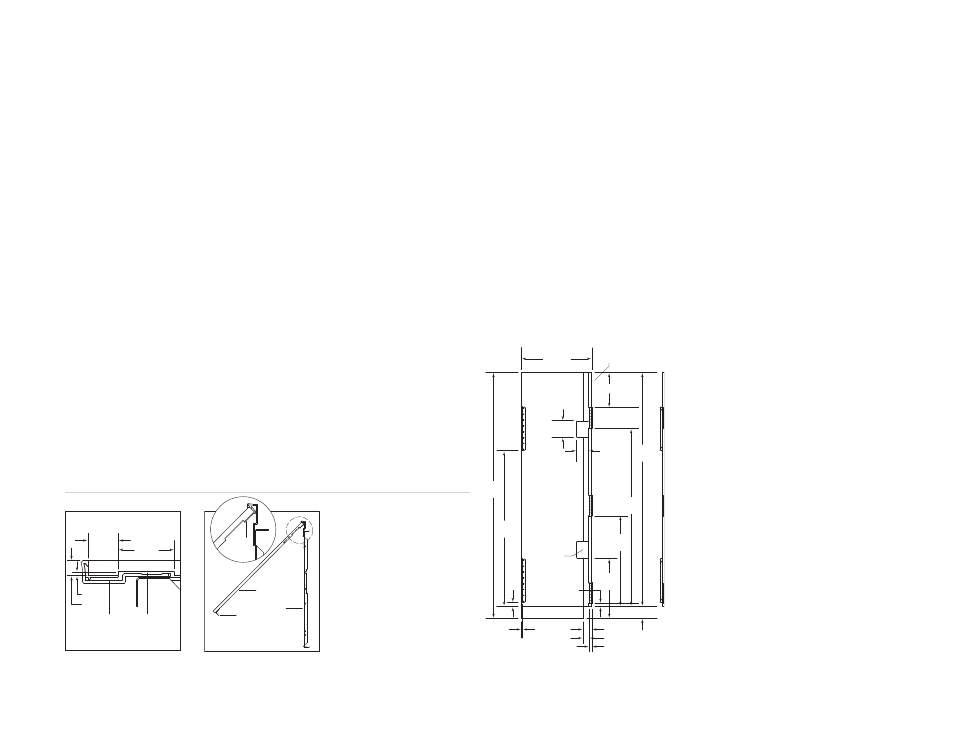

Side Panel

Routing

Main

Frame

25 mm

48 mm

3 mm

13 mm

Side Panel

Rear

Bracket

Front

Bracket

Main

Frame

Routing detail—wood side panel

Side panel attachment—
top view

IMPORTANT NOTE: The use of side panels may
change the width of your rough opening.

IMPORTANT NOTE: The overall height on the
side panel will vary with the height of the grille
being used. Make sure you know your finished
height before cutting any panels.

D U A L I N S TA L L AT I O N S

When two Built-in units are installed side-by-
side, it is necessary to use a Sub-Zero Built-in
dual installation kit. Contact your Sub-Zero
dealer for the proper components and installa-
tion instructions.

IMPORTANT NOTE: Flush Inset panel sizes for
dual installations are different than those listed
in this book. Please refer to the Sub-Zero Built-In
Refrigeration Design Guide.

IMPORTANT NOTE: Dual installations can only
be accomplished using two units with opposite
hinges.

2134

mm

610 mm

NO SIDE PANEL

5 mm DEEP

HINGE SIDE

POCKET

2032

mm

1353

mm

102 mm

521

mm

305 mm

787

mm

1549

mm

146 mm

67 mm
48 mm
25 mm

32

mm

25 mm

4 mm

108 mm

FRONT OF UNIT

Side panel specifications
