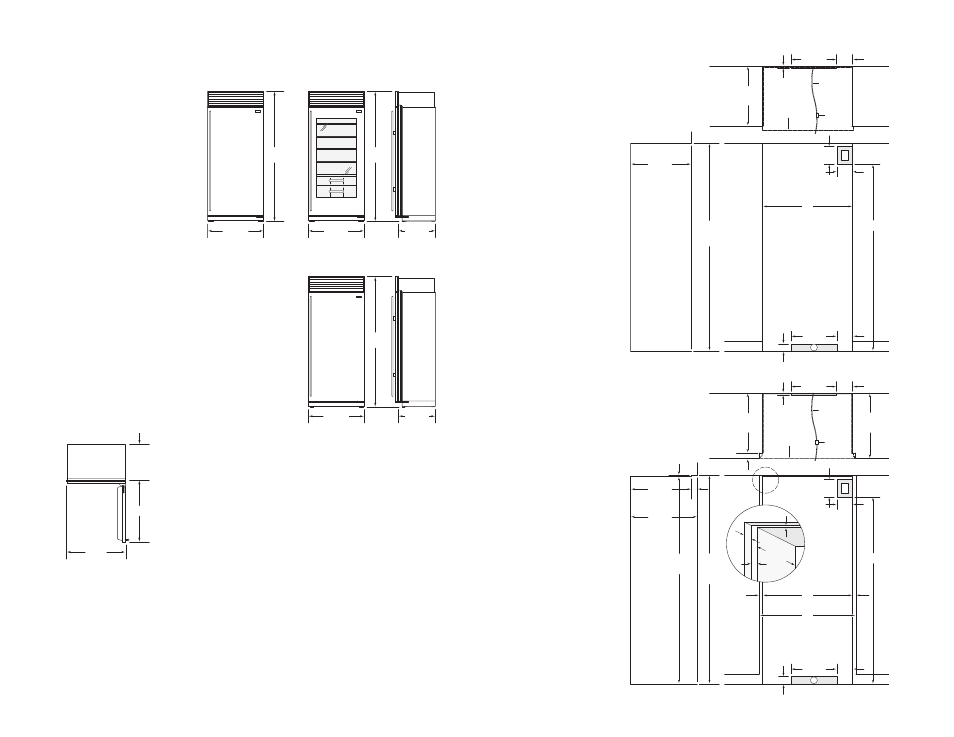

B U I LT- I N I N S TA L L AT I O N S P E C I F I C AT I O N S
Stainless steel design shown.
D O O R C L E A R A N C E
All Refrigerator / All Freezer Models
A
Model ICBBI-36R
946 mm
959 mm Flush Inset
Model ICBBI-36RG
946 mm
959 mm Flush Inset
Model ICBBI-36F
946 mm
959 mm Flush Inset
Door clearance is based on stainless
steel door and handle dimensions.
O V E R A L L D I M E N S I O N S
All Refrigerator / All Freezer Models
Model ICBBI-36R All Refrigerator
W
H
D
914 mm
2138 mm
610 mm
Model ICBBI-36RG
All Refrigerator with Glass Door
W
H
D
914 mm
2138 mm
610 mm
Model ICBBI-36F All Freezer
W
H
D
914 mm
2138 mm
610 mm
Unit dimensions may vary by ± 3 mm.
606 mm
BEHIND
FRAME
WIDTH
OF UNIT
A
Model ICBBI-36R
Model ICBBI-36RG
914 mm
2134
mm
914 mm
2134
mm
610 mm
914 mm
2134
mm
610 mm
Model ICBBI-36F
I N S T A L L A T I O N S P E C I F I C A T I O N S
All Refrigerator / All Freezer Models —
Overlay (non-flush inset) and Stainless Steel
A
Model ICBBI-36R
902 mm
Model ICBBI-36RG
902 mm
Model ICBBI-36F
902 mm
Dimensions are for finished rough openings.
Models ICBBI-36R and ICBBI-36RG will not
require the water line connection.
I N S T A L L A T I O N S P E C I F I C A T I O N S
All Refrigerator / All Freezer Models —
Flush Inset Application
A
B
Model ICBBI-36R
902 mm
965 mm
Model ICBBI-36RG
902 mm
965 mm
Model ICBBI-36F
902 mm
965 mm
Dimensions are for finished rough openings.
Models ICBBI-36R and ICBBI-36RG will not
require the water line connection.
1918 mm
178
mm
152
mm
E
LOCATE
ELECTRICAL
WITHIN
SHADED AREA
457 mm
W
LOCATE WATER SUPPLY
WITHIN SHADED AREA
152
mm
FRONT VIEW
SIDE VIEW
2127 mm
OPENING
HEIGHT
A
OPENING WIDTH
76 mm
610 mm
OPENING
DEPTH
13 mm
457 mm*
152
mm
610 mm
OPENING
DEPTH
SHUT-OFF
VALVE
OUTLINE OF
OVERLAY
OR STAINLESS
STEEL MODEL
TOP VIEW
* ANTI-TIP BRACKET MUST NOT
INTERFERE WITH WATER LINE.
REFER TO INSTALLATION
INSTRUCTIONS FOR COMPLETE
DETAILS.
EXTEND WATER LINE APPROX
914 mm FROM BACK WALL.
WATER LINE
1918 mm
178
mm
152
mm
E
LOCATE
ELECTRICAL
WITHIN
SHADED AREA
13 mm
457 mm*
152
mm
610 mm
OPENING
DEPTH
665 mm
FLUSH INSET
DEPTH
SHUT-OFF
VALVE
OUTLINE
OF FLUSH INSET
APPLICATION WITH
19 mm
PANEL
457 mm
W
LOCATE WATER SUPPLY
WITHIN SHADED AREA
152
mm
FRONT VIEW
SIDE VIEW
TOP VIEW
2127 mm
OPENING
HEIGHT
2134
mm
FLUSH
INSET
HEIGHT
6 mm
56 mm**
76 mm
A
OPENING WIDTH
B
FLUSH INSET WIDTH
32
mm
32
mm
56
mm**
610 mm
OPENING
DEPTH
665 mm
FLUSH INSET
DEPTH
* ANTI-TIP BRACKET MUST NOT
INTERFERE WITH WATER LINE.
REFER TO INSTALLATION
INSTRUCTIONS FOR COMPLETE
DETAILS.
**ASSUMES 19 mm PANEL
THICKNESS.
EXTEND WATER LINE APPROX
914 mm FROM BACK WALL.
WATER LINE
6
mm
32
mm
FLUSH INSET
DETAIL
56
mm
610 mm
OPENING
DEPTH
