AR-5127 DISASSEMBLY, ASSEMBLY AND MAINTENANCE 10 - 8

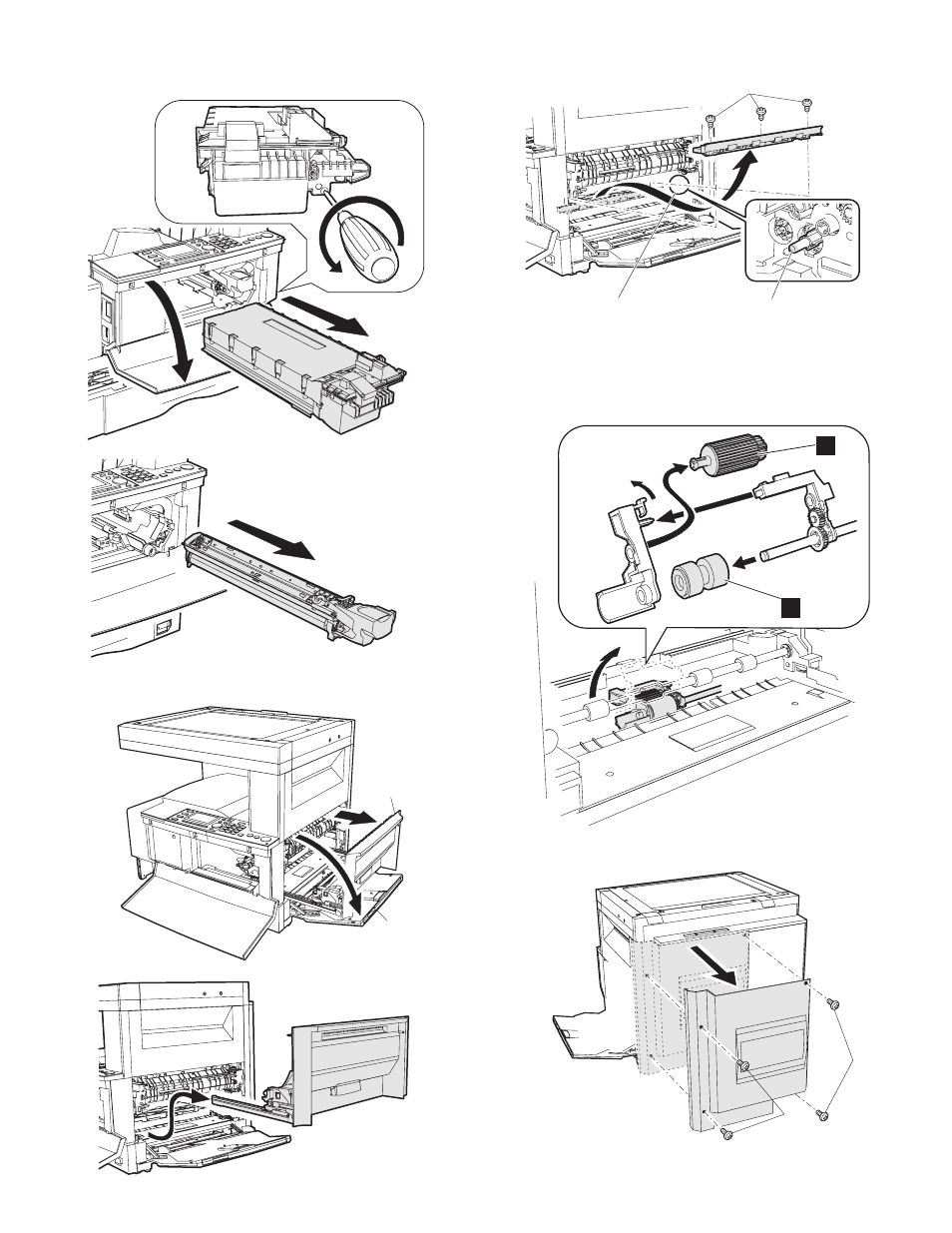

(2) Upper 500 sheets tray paper feed
a. Paper feed roller/pickup roller
Note: With the toner cartridge installed, do not tilt or shake the devel-
oper cartridge.
Note: When removing the screw 1 in the figure below, use a screw
driver the whole length of which is 5cm or less and the iron tip of
which is 3.5cm or less.
b. Separation sheet
1)
2)
3)
1)
2)
∗ When replacing, be careful not
to adhere conduction grease
(black) to the drive section. Slightly apply grease GE676
(UKOG-0013QSZZ) to the
drum boss.
1)
2)
1)
2)
3)
4)
4)
2
1
1)
2)
1)
