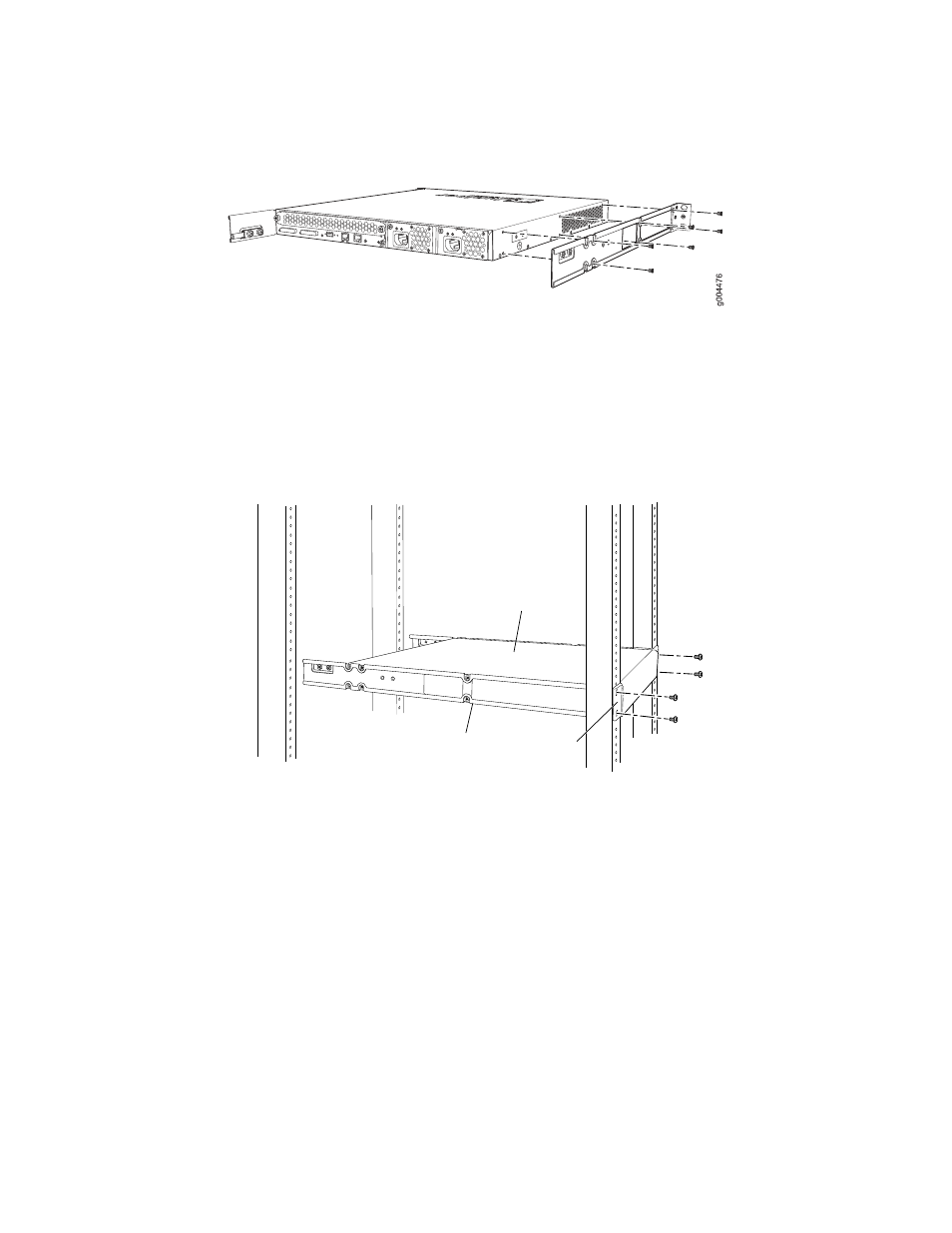

Figure 41: Attaching the Side-Rail Bracket to the Switch Chassis
5. Insert the 4x6-mm Phillips flat-head mounting screws into the remaining four
holes in the side-rail brackets and tighten the screws.
6. Have one person grasp both sides of the switch, lift the switch, and position it
in the rack, aligning the side-rail bracket holes with the threaded holes in the
front post of the rack. Align the bottom hole in both the mounting brackets with
a hole in each rack rail, making sure the chassis is level. See Figure 42 on page 123.
Figure 42: Mounting the Switch to the Front Posts in a Rack
g004477
Side-rail
bracket
Switch
Front
bracket
7. Have a second person secure the front of the switch to the rack by using the
appropriate screws for your rack.
8. Slide the rear brackets into the side-rail brackets. See Figure 43 on page 124.
Mounting an EX3200 or EX4200 Switch on Four Posts in a Rack or Cabinet ■ 123
Chapter 9: Installing the Switch
