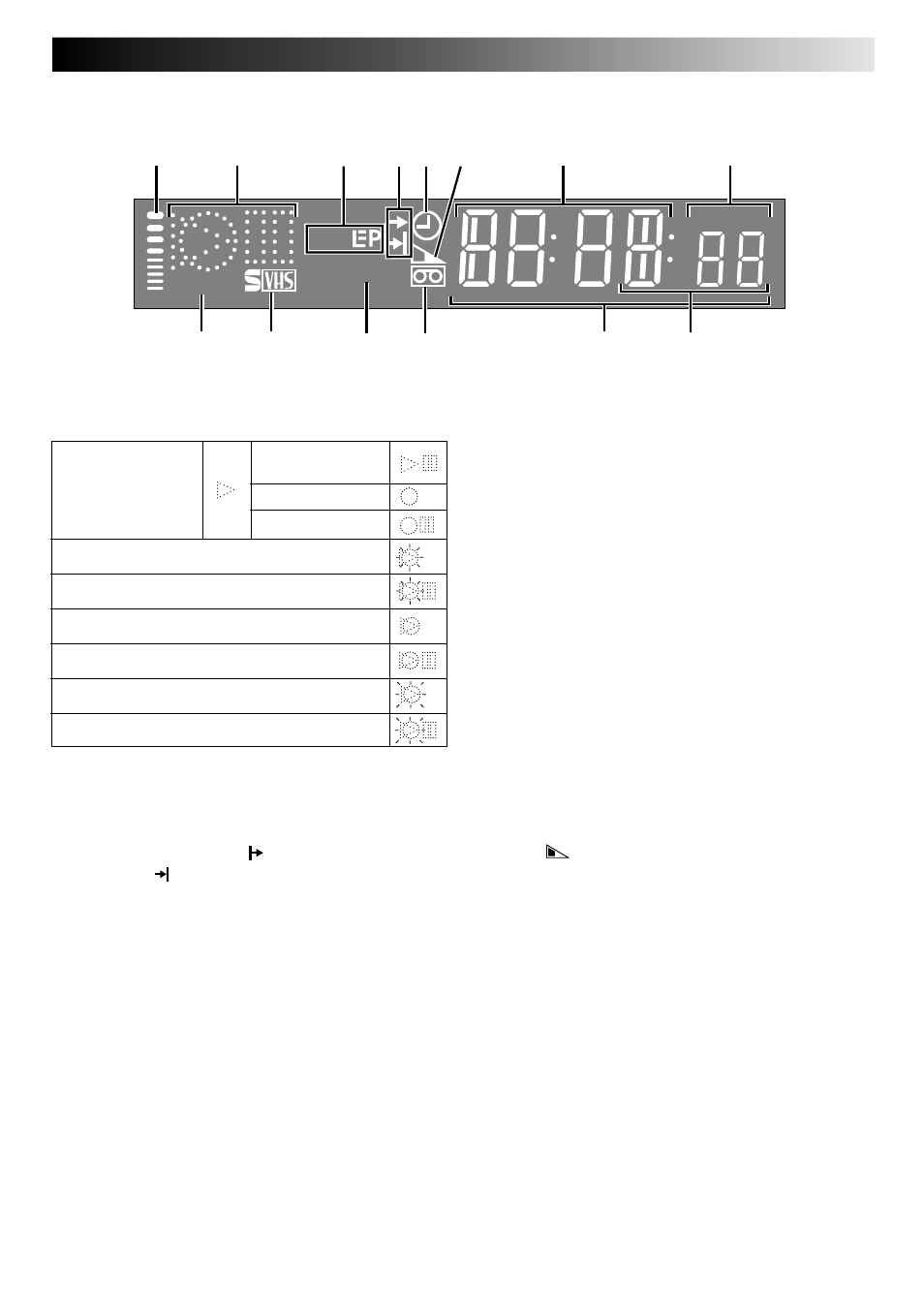

DISPLAY PANEL

1 B.E.S.T. Picture System Display lights from

bottom to top while B.E.S.T. is active.

੬ pg. 28

2 Symbolic Mode Indicators

3 Tape Speed Indicators display mode of

recording; light during Record or Play mode.

੬ pg. 17, 18

4 Programme Time Indicators show the

programme start time ( ) and the programme
stop time ( ) for timer-recording.

੬ pg. 22

5 "Timer" Indicator lights when ‰ has been

pressed to engage Timer mode.

੬ pg. 21, 23

6 Tape Remaining Time Indicator displays time

remaining on tape when certain buttons are
pressed.

੬ pg. 19

REVIEW

5 6

VPS/PDC

VCR

STILL:
SLOW:

RECORD:

RECORD PAUSE:

PLAY:
FF/REW VARIABLE
SEARCH:

AUDIO DUBBING:

AUDIO DUBBING PAUSE:

INSERT:

INSERT PAUSE:

AV INSERT:

AV INSERT PAUSE:

7 Channel Display shows preset position where

the station currently being received is stored.
Clock Display shows current time.

੬ pg. 10

8 Instant REVIEW Indicator blinks after timer-

recording and shows how many programmes
have been timer-recorded.

੬ pg. 33

9 PDC Indicator lights when PDC has been

engaged for timer recording.

੬ pg. 21, 23

*VPS (Video Programme System) recording is not currently

available in the U.K. and not possible with this recorder.

0 S-VHS Indicator lights when a cassette marked

S-VHS is inserted with S-VHS mode set to "ON",
when an S-VHS-recorded tape or S-VHS ET-
recorded tape is played back or when S-VHS ET
mode is engaged.

੬ pg. 26

! VCR Indicator lights when the video recorder is

in the video mode. At this point, the TV auto-
matically enters AV mode.

੬ pg. 14

@ "Cassette Loaded" Mark lights once a cassette is

inserted; remains lit until cassette ejected.

# Counter shows time elapsed since playback or

recording began.
With

displayed, shows time remaining from

current tape position to end of tape (

੬ pg. 19).

Counter, Preset Position*, Clock and Tape
Remaining Time Display appear alternately
when – –:– – (DISPLAY) is pressed.

*Preset Position is not displayed during playback.

$ Mode shows external input mode selected (L-1,

L-2, F-1 or SAT).
