NOTES:
● You can obtain high-quality S-VHS pictures.
● If your television is not stereo-capable, use the recorder's
AUDIO OUT connectors to connect to an audio amplifier for
Hi-Fi stereo sound reproduction. (
੬
pg. 60)
● To operate the recorder with your TV using the S-VIDEO
connection, set your TV to the AV mode.
● For switching the TV's mode, refer to the instruction manual
of your television.
ATTENTION
Ⅲ Do NOT Plug the mains power cord into a mains outlet until all connections are completed.
Ⅲ Do NOT press the
button on the recorder or on the remote control to turn on the recorder's
power before you start the Auto Set Up procedure described on page 8.
Go to Step 3 – AUTO SET UP AFTER YOU FINISH THIS STEP
Mains outlet
Back of Recorder
Aerial connector
RF Cable (provided)
Back of TV
S-Video cable (not provided)
Audio cable
(not provided)
S-VIDEO IN connector
AUDIO IN connectors

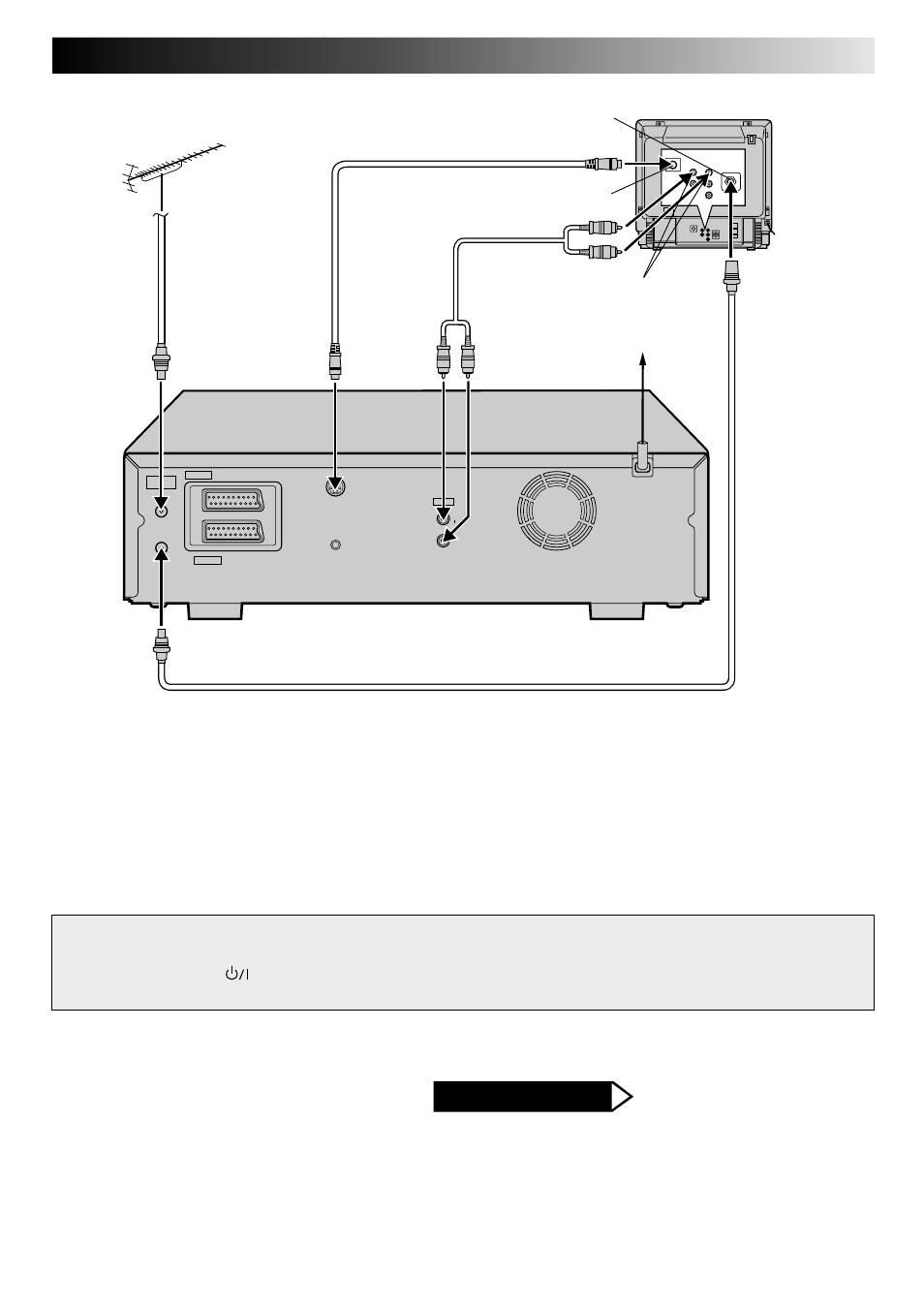

S-VIDEO CONNECTION
To connect to a TV with S-VIDEO/AUDIO IN connectors . . .
1– Connect the aerial, recorder and TV as per "AV CONNEC-
TION" (
੬
pg. 6).
2– Connect the recorder's S OUT connector to the TV's
S-VIDEO IN connector.
3– Connect the recorder's AUDIO OUT connectors to the TV's
AUDIO IN connectors.
