JVC SR-VS20EK - Manual (Page 43)

43
Mini-Plug Cable
(not provided)
(JVC camcorder only)
VIDEO
OUT
EDIT
Camcorder
VIDEO input
Recorder
PAUSE
connector
AUDIO OUT
Video Cable
(not provided)
Player
AUDIO input

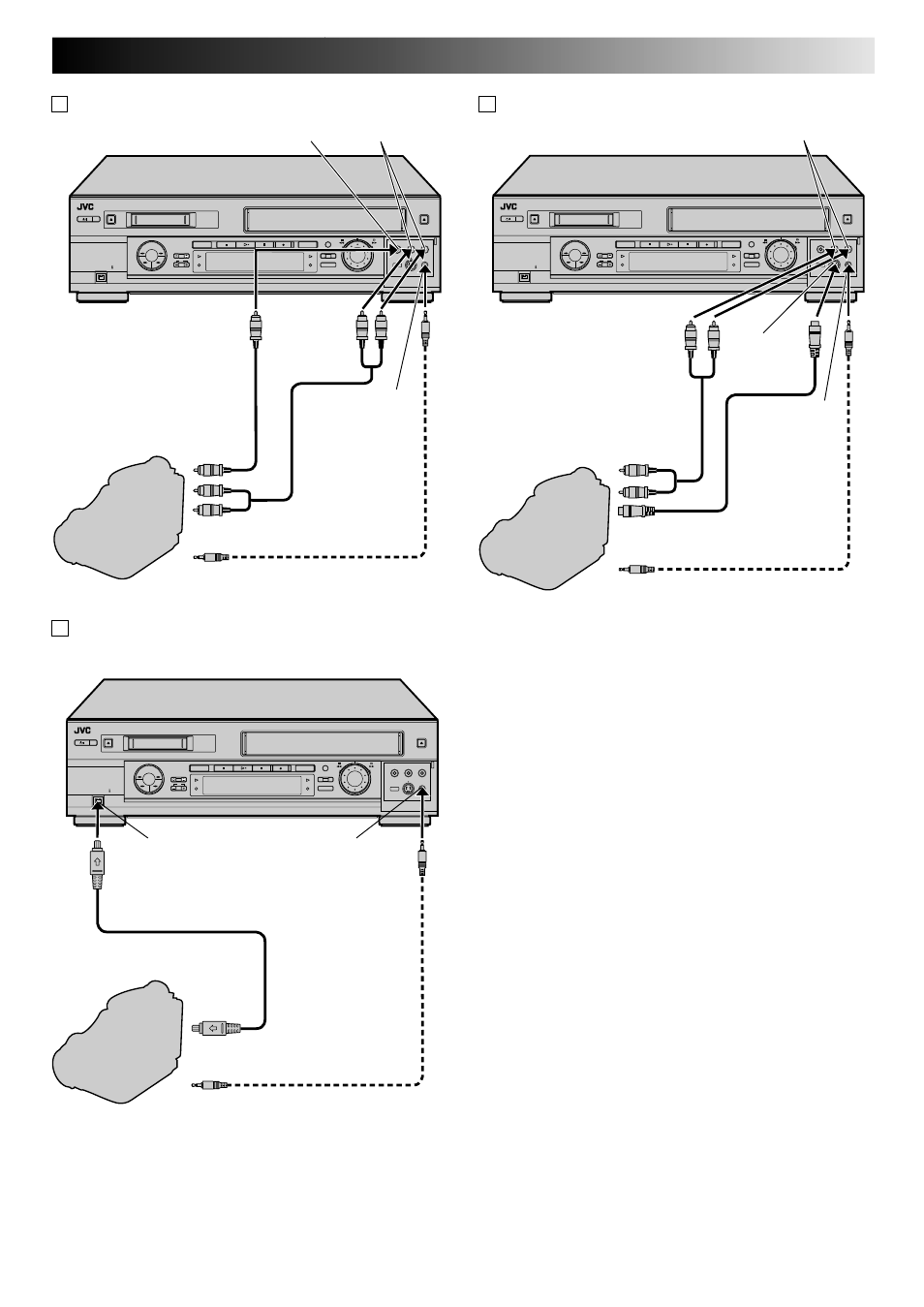

A If the camcorder has no S-VIDEO output connector...
Mini-Plug Cable
(not provided)
(JVC camcorder only)
S-VIDEO
OUT
EDIT
Camcorder
S-VIDEO
input
Recorder
PAUSE
connector
AUDIO
OUT
Audio Cable
(not provided)
Player
B If the camcorder has an S-VIDEO output connector...
AUDIO input
S-Video Cable
(not provided)
Audio Cable
(not provided)
Mini-Plug Cable
(not provided)
(JVC camcorder only)
EDIT
DV Camcorder
Recorder
PAUSE connector
DV OUT/IN
DV Cable (not provided)
Player
C If the camcorder has a DV OUT/IN connector...
DV IN/OUT
