6
S
OUT
SORTIE
(DV/VHS)
ANTENNA
ANTENNE
IN
ENTREE
OUT
SORTIE
AUDIO
(DV/VHS)
L
R
AV2 (L-2) IN/DECODER
ENTREE/DECODEUR
AV1 (L-1) IN/OUT ENTREE/SORTIE
SAT CONTROL
CONTROLEUR SAT
OUT
SORTIE
RF Cable (provided)
QUICK SET UP GUIDE (cont.)
STEP
2 INSTALLATION

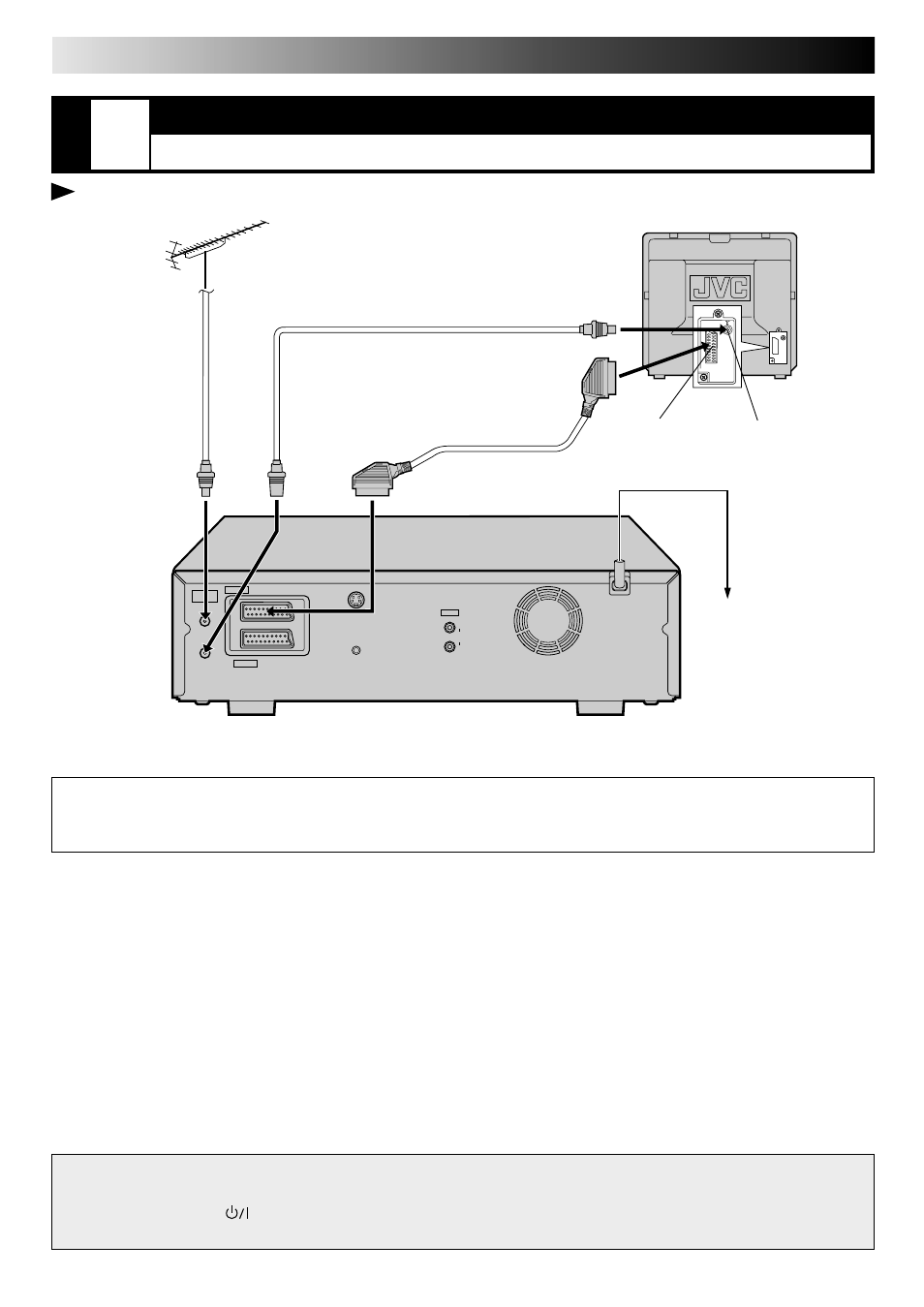

CONNECT VIDEO RECORDER TO TV
Place the recorder on a stable, flat surface.
AV CONNECTION
To connect to a TV with 21-pin AV input connector (SCART) . . .
1– Disconnect the TV aerial cable from the TV.
2– Connect the TV aerial cable to the ANTENNA IN jack on the
rear panel of the recorder.
3– Connect the provided RF cable between the ANTENNA OUT
jack on the rear panel of the recorder and the TV’s aerial
connector.
4– Connect the provided SCART cable between the AV1 (L-1)
IN/OUT socket on the rear panel of the recorder and the TV’s
21-pin AV input connector (SCART).
ATTENTION
Ⅲ Do NOT Plug the mains power cord into a mains outlet until all connections are completed.
Ⅲ Do NOT press the button on the recorder or on the remote control to turn on the recorder's
power before you start the Auto Set Up procedure described on page 8.
21-pin AV input
connector (SCART) Aerial connector
Back of TV
21-pin SCART Cable (not provided)
TV Aerial Cable
(not provided)
Back of Recorder
Mains outlet
NOTES:
● The AV1 (L-1) IN/OUT connector accepts and delivers either
a composite signal (regular video signal) or a Y/C signal (a
signal in which the luminance and chrominance signals are
separated). If your TV's 21-pin AV input connector (SCART) is
compatible with the Y/C signal, set "L-1 OUTPUT" to
"S-VIDEO" after the connection and the initial settings are
completed (
੬
pg. 50) You can obtain high-quality S-VHS
pictures. (For connection, be sure to use a 21-pin SCART
cable that is compatible with the Y/C signal.)
● Set your TV to the VIDEO (or AV), Y/C, or RGB mode
according to the type of your TV's SCART connector.
● For switching the TV's mode, refer to the instruction manual
of your television.
● To obtain high-quality S-VHS pictures, you can also use the
S-VIDEO CONNECTION described on page 7.
ATTENTION:
You can not use the recorder connected to your TV only with the RF cable. This is because the RF cable does not deliver signal
from the recorder. Your TV must have a 21-pin AV input connector (SCART) to connect to the recorder.
