JVC SR-VS20EK - Manual (Page 80)

80
S
OUT
SORTIE
(DV/VHS)
ANTENNA
ANTENNE
IN
ENTREE
OUT
SORTIE
AUDIO
(DV/VHS)
L
R
AV2 (L-2)
IN/DECODER
ENTREE/DECODEUR
AV1 (L-1) IN/OUT ENTREE/SORTIE
SAT CONTROL
CONTROLEUR SAT
OUT
SORTIE
2
4
1 3
6 5 7
1 ANTENNA IN Connector enables connection of
aerial. ੬ pg. 6, 7
2 AV1 (L-1) IN/OUT Connector enables AV
connection to TV or second recorder; input
recordable when "L-1" selected.
੬ pg. 6, 44
3 S OUT Connector enables S-VIDEO connection
to TV or second recorder. ੬ pg. 7, 44
4 ANTENNA OUT Connector enables connection
to aerial terminal of TV receiver.
੬ pg. 6, 7

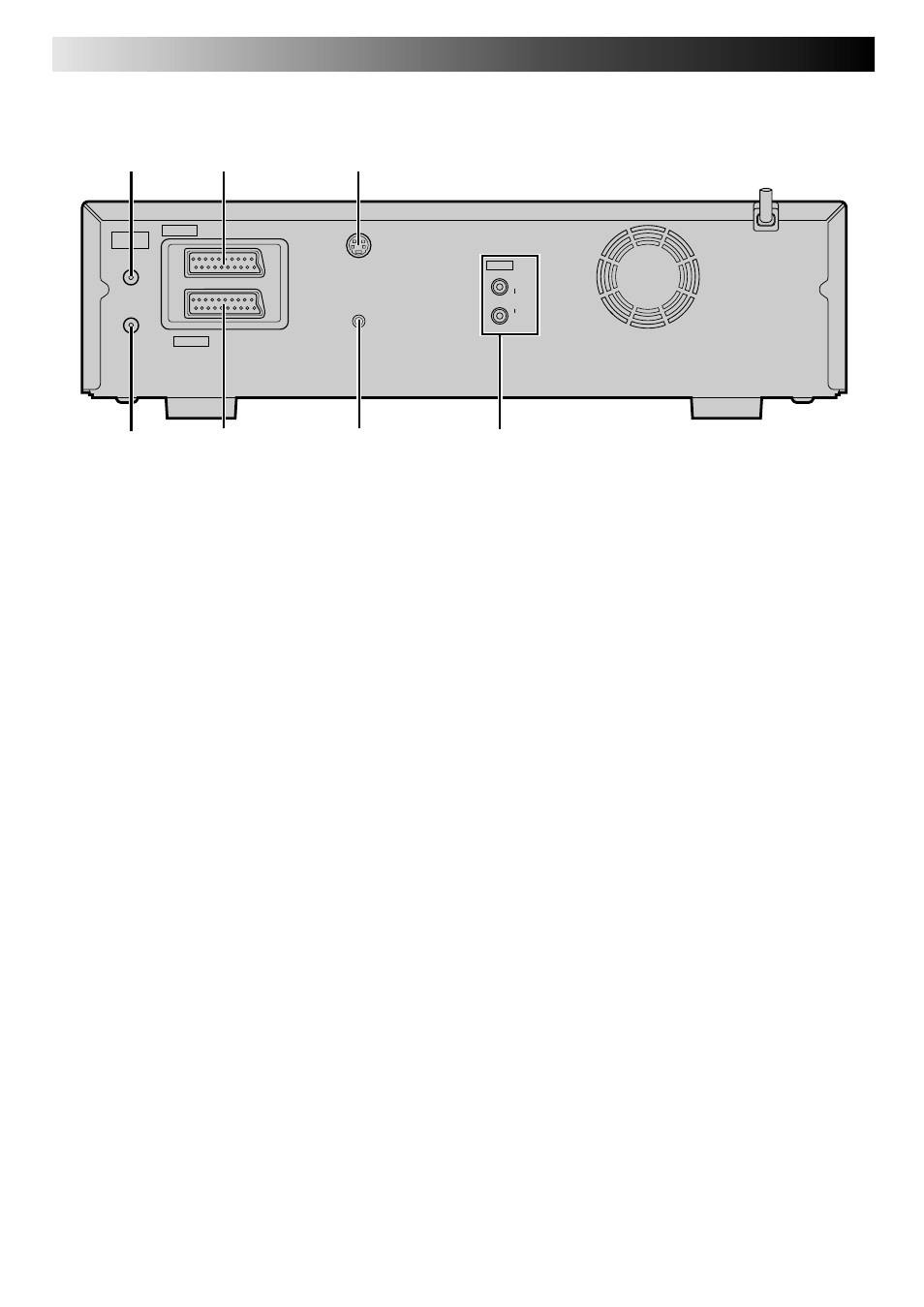

REAR VIEW
5 AV2 (L-2) IN/DECODER Connector enables
connection of satellite receiver, decoder or
second recorder; input recordable when "L-2"
selected.
੬ pg. 44, 59
6 SAT CONTROL Connector enables connection
of the provided Satellite Controller for timer
recording with a satellite receiver.
੬ pg. 12
7 AUDIO OUT (L/R) Connectors enable
connection of audio cassette recorder, TV or
second video recorder for dubbing.
੬ pg. 60
SUBSIDIARY INFORMATION (cont.)
