CHAPTER 8

MX Series Router in an ATM Ethernet
Interworking Function

This chapter discusses the following topics:

MX Series Router ATM Ethernet Interworking Function on page 83

Example: Configuring MX Series Router ATM Ethernet Interworking on page 85

MX Series Router ATM Ethernet Interworking Function

You can configure an MX Series router as part of an ATM Ethernet interworking function
(IWF) scenario mapping outer and inner VLAN tags to ATM Virtual Path Identifier (VPI)
and Virtual Channel Identifier (/VCI).

The ATM Ethernet interworking scenario is shown in

Figure 10 on page 83

. The MX Series

router is configured as the Provider Edge 2 (PE2) router in the figure to support the ATM
Ethernet IWF. Ethernet is the only transport type supported.

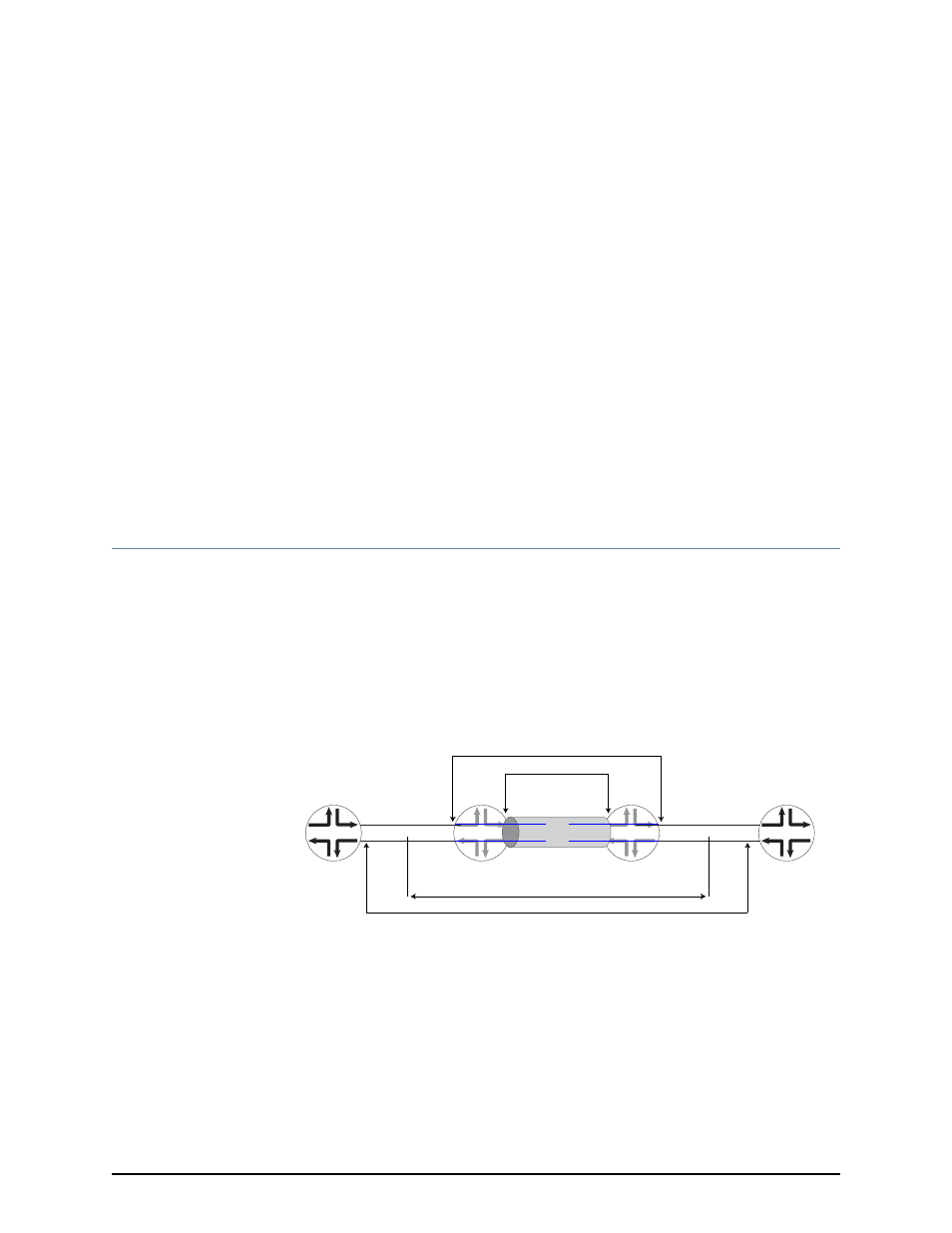

Figure 10: ATM Ethernet VLAN Interworking

CE1

CE2

g017428

ATM DSLAM Service

Stacked VLAN Service

VPI maps to outer VLAN tag

VCI maps to inner VLAN tag

L2 circuits (if-switch)

I/P backhaul

Provider Edge 1

Provider Edge 2

LSP1

LSP2

Customer Edge 1:

ATM DSLAM

Customer Edge 2:

Ethernet B-RAS

PE1

PE2

The PE1 router translates between ATM and Ethernet VLANs. Only an M Series router
can function as the PE1 router.

The PE1 router translates between the ATM VPI and VCI and Ethernet VLAN tags as
follows:

ATM VPI to and from outer VLAN tag of the Ethernet frame

ATM VCI to and from inner VLAN tag of the Ethernet frame
