8

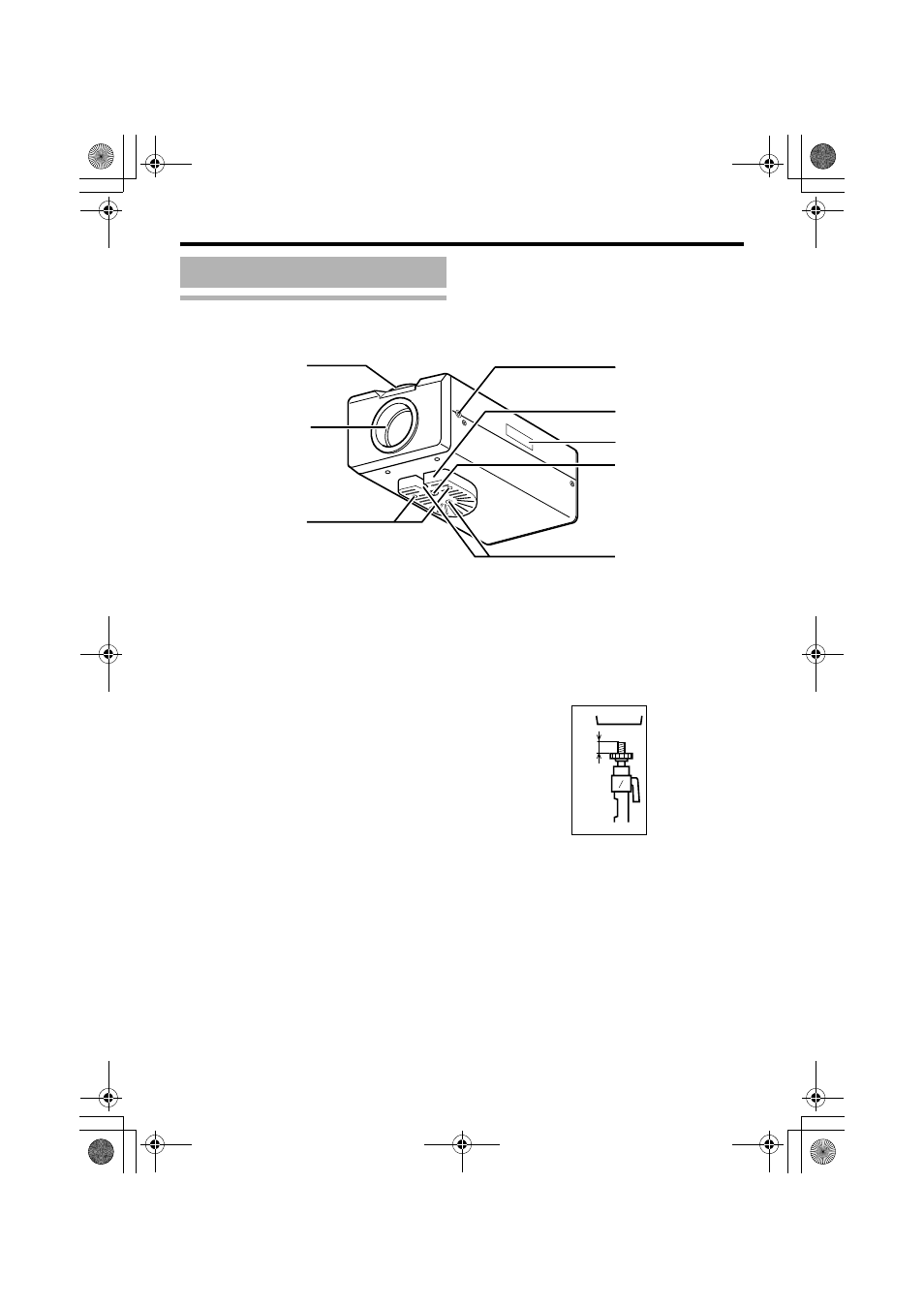

Front / Top / Side
A
Back Focus adjustment ring
This ring is used for back focus adjustment and
switching the lens mount method.
To operate, turn the H back focus fastening
screw in the anti-clockwise direction, and turn
the screw in the clockwise direction to fasten
after operation is complete.
This product is pre-adjusted to a position that is
best suited for CS mount.
(
B
Lens mount
This is a mount for mounting the lens.
The mount is compatible with CS mount lens
and C mount lens.
(
C
Screws for the bracket(x 2 :M2.6
ן6 mm)
Use screws with a length of 6 mm. Screws
beyond the specified length must not be used as
doing so may damage the interior.
D
Fall-preventive holes
Mount this camera firmly using these fall-
preventive holes to prevent it from falling.
E
Screw hole(1/4-20UNC)
Use this hole when mounting this camera to a
fixer or rotating platform.
Use screws with a length not longer than 7 mm.
Screws beyond the specified length must not be
used as doing so may damage the interior.
(
F
[MAC address] Indicator
The MAC address is a unique physical address
of the product. This address cannot be altered.
G
Bracket for camera mounting
This bracket is pre-mounted to the top surface of
the camera. It can also be mounted to the
bottom surface depending on the usage. Mount
A Screws for the bracket to the screw hole at the
bottom surface.
H
[BF LOCK] Back Focus locking screw
This is the fastening screw of the back focus
adjustment unit.
(
Name and Function of Parts
B
D
E
C
H
F
A
G
MAX. 7
mm
