11
Memo:
● When [Camera Function]B[Switch Set]B[AE LEVEL] is
set to AAE LEVEL/VFRB, the cross-shaped button ( H I ) is
used to set the number of frames during Variable Frame
REC.
(A Page 56 [Variable Frame REC])
(A Page 75 [AE LEVEL])
Ⅵ During Media mode (SD Card mode) (A Page 57)
Thumbnail operation : Cross-shaped button (
JKH I ), center
Set button ( R )
O
Operation Mode Indicator
Lights up as below according to the operation mode.
(A Page 7)
Memo:
● You can select whether to light up the indicator using
[Mode LED] in the [Others] menu. (A Page 87)
P
[MONITOR] Audio Monitor Level Adjustment Knob
For adjusting the volume of the monitor speaker and
earphones.

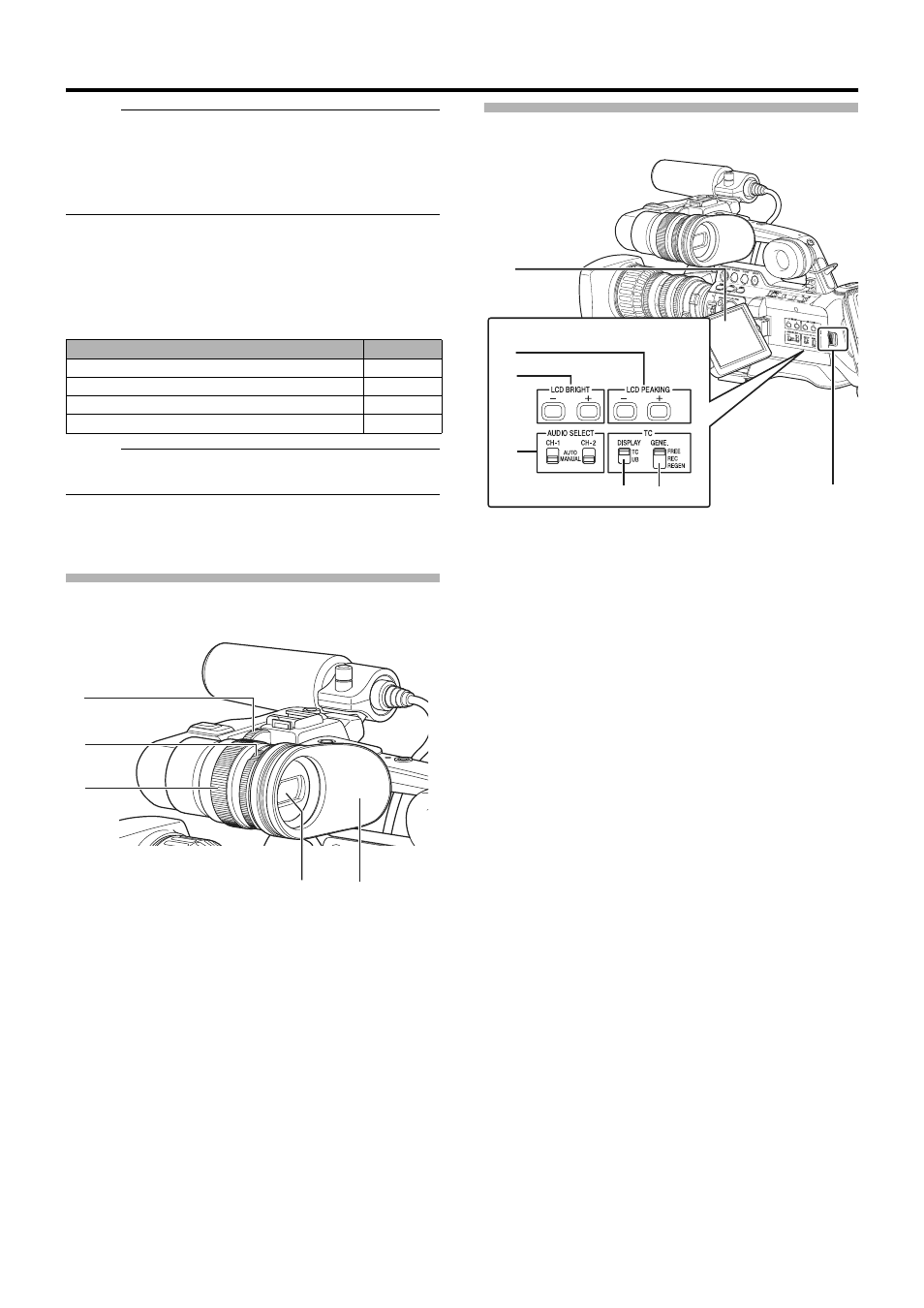

Viewfinder
(A Page 28)
A
Viewfinder Slide Lock Ring
For loosening the ring and adjusting the position of the
viewfinder E to the left or right.
B
Eyepiece Focus Ring
For adjusting the visibility.
C
Viewfinder Eyepiece Lock Ring
For loosening the ring and adjusting the eyepiece position of
the viewfinder to the front or back.
D
Viewfinder
E Eyepiece
Prevents external light from entering the viewfinder screen
and cameraman’s vision.
LCD Monitor
A LCD Monitor (A Page 28)
B
[LCD PEAKING +/-] LCD Contour Adjustment Button
(A Page 28)
C
[LCD BRIGHT +/-] LCD Display Brightness
Adjustment Button (A Page 28)
D [AUDIO SELECT CH-1/CH-2] Audio Recording Mode
Switch (A Page 44)
E
[TC DISPLAY] TC/UB Display Switch (A Page 46)
F
[TC GENE.] Time Code Generator Switch (A Page 46)
G
LCD Cover Lock Release Knob (A Page 28)
Operation Mode Color
Camera Mode Blue/Purple
Media Mode (SD Card Mode) Green
Media Mode (IEEE1394 Mode) Orange
USB Mode Orange
E D
A
C
B
B
C
D
E F
A
G
When the LCD monitor is open
