9
O

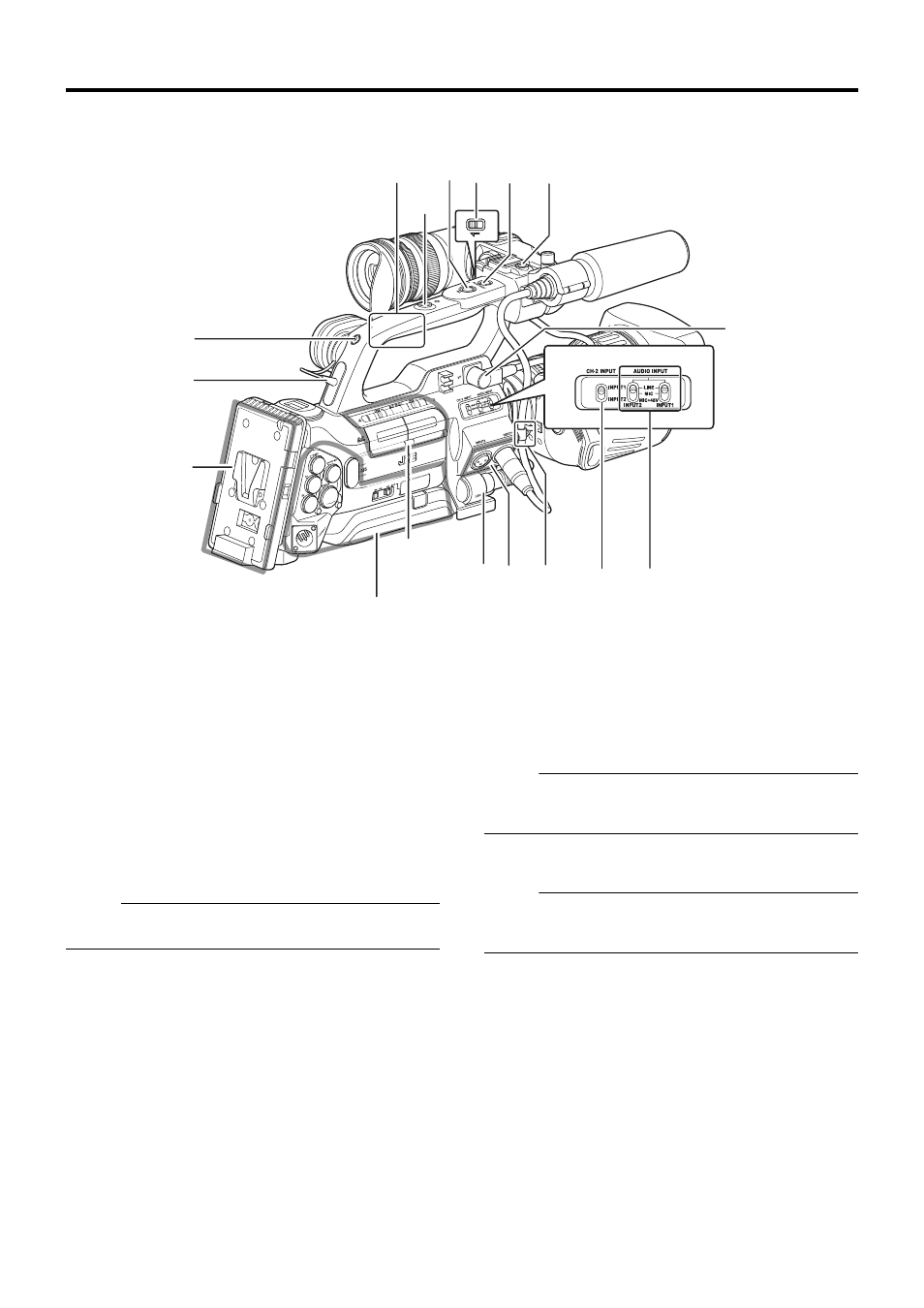

Back Tally Lamp (A Page 30, 87)
P
[PHONES] Earphone Connector (3.5) (A Page 45)
Q [LENS] Lens Connector (12-pin Connector)
(A Page 19)
R
[INPUT1/INPUT2] Audio Input Terminal 1, 2 (XLR 3-
pin(x2) (A Page 44)
S
Microphone Cable Clamp (A Page 19)
T [CH-2 INPUT] CH-2 Audio Input Terminal Selection
Switch
Select the audio input terminal to record to CH-2.
(A Page 44)
Memo:
● Audio from [INPUT1] terminal is input to CH-1 regardless
of the setting.
U
[AUDIO INPUT 1/2] Audio Input Signal Selection
Switch (A Page 44)
V Viewfinder Connector (20-pin) (A Page 20)
W
Accessory Mounting Screw Hole (x2)
X
[FOCUS ASSIST] Focus Assist Button
(A Page 35)
Y
Record Button Lock Switch
Set the switch toward the lens to lock the [REC] trigger
button Z.
Memo:
● The [REC] trigger button (A Page 10) K at the side
control panel on the right of the camera recorder is not
locked.
Z [REC] REC Trigger Button (Recording Start/Stop)
Starts/stops recording.
Memo:
● The [REC] trigger button (A Page 10) K at the side
control panel on the right of the camera recorder is
interlocked with this button.
a
Handle
Z
O
Q
P
a
R S
V
U T
X Y W
W
Battery Mount
(A Page 21)
Side Terminal (A Page 12)
SDHC Slot
(A Page 13)
