107

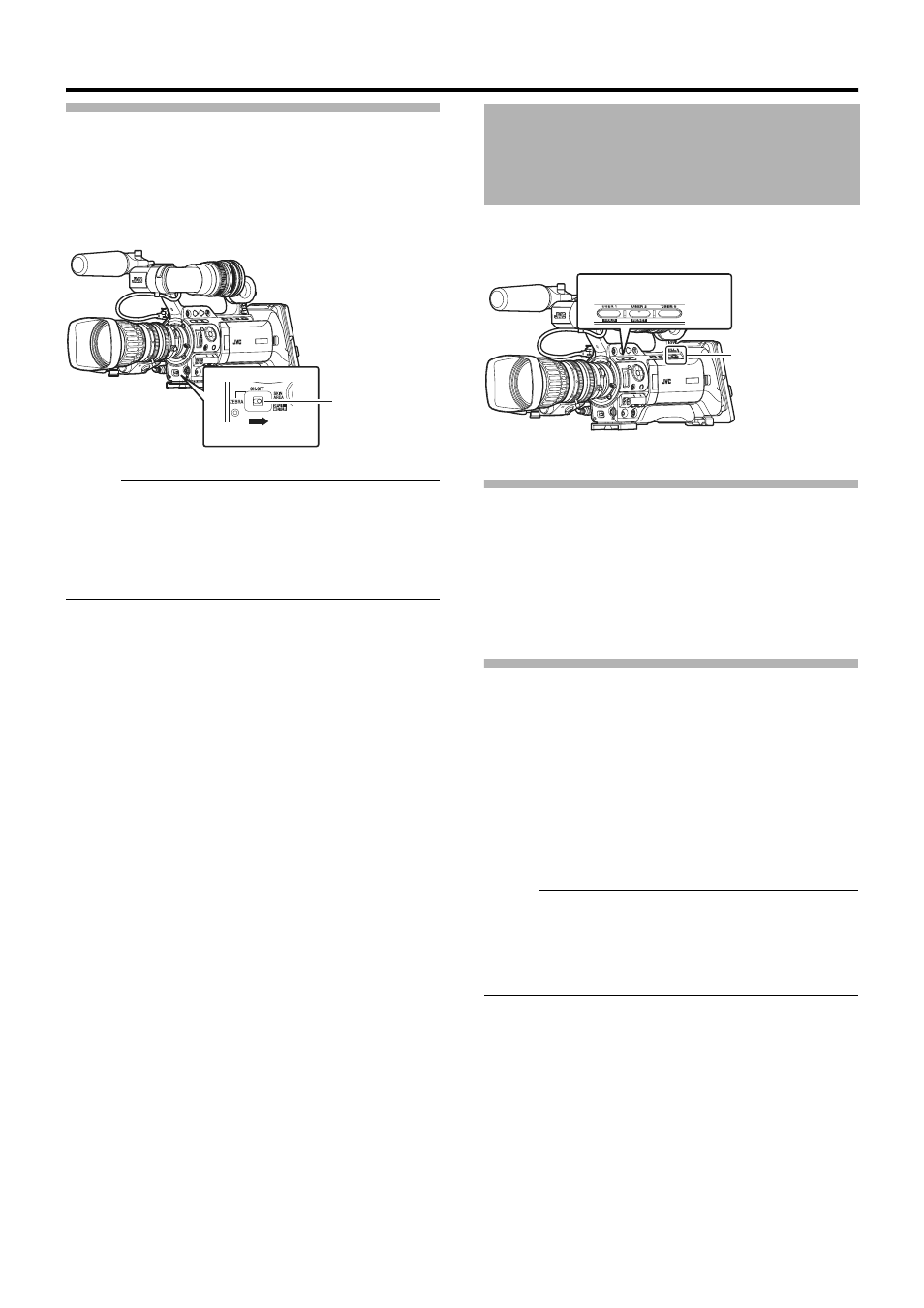

Checking the Preset Hue Area

1

Set the [ZEBRA ON/OFF] switch at the front of the

camera recorder to the [SKIN AREA/SPOT METER] end.
Doing so forcibly turns ON the Skin Adjust function
temporarily, and the preset hue area is displayed in color on
the LCD monitor and viewfinder.

Memo:

● When [Color Gain] in the [Camera Process] menu is set to

AOffB, only the area where Skin Detail is functioning is

displayed in skin tone. (A Page 77)

● When [SKIN A./SPOT M.] of [Switch Set] in the [Camera

Function] menu screen is set to

ASpot MeterB, the hue

area cannot be checked using the [SKIN AREA/SPOT
METER] switch. (A Page 75)

Multi-format color bars can be output on this camera
recorder.

Setting

To output color bars, follow the setting procedure below.

1

Set the [FULL AUTO] switch to

AOFFB.

2

Set [Bars] in the [Camera Function] menu to

AOnB.

(A Page 73).

Color bars are output.

Color Bar Output Using the USER Buttons

1

Set the [FULL AUTO] switch to

AOFFB.

2

Assign

ABarsB to any one of the [USER1]/[USER2]/

[USER3] buttons.

Set using [USER1]/[USER2]/[USER3] of [Switch Set] in the
[Camera Function] menu.
(A Page 74)

3

Press the corresponding [USER1]/[USER2]/[USER3]

button that is assigned with

ABarsB.

Color bars are output.

Memo:

● During color bar output, you can select whether to output

the reference audio signals using [Test Tone] in the [Audio
Set] menu. (A Page 72)

● Color bars are not output when the [FULL AUTO] switch is

set to

AONB but [Bars] in the [FULL AUTO] menu is set to

AOffB. They are also not output in Media mode.

[ZEBRA ON/OFF]
Switch

Color Bar Output

[FULL AUTO] Switch

[USER1,USER2,USER3]
Buttons
