Chapter 1 Introduction
CI5VGM User’s Manual 1

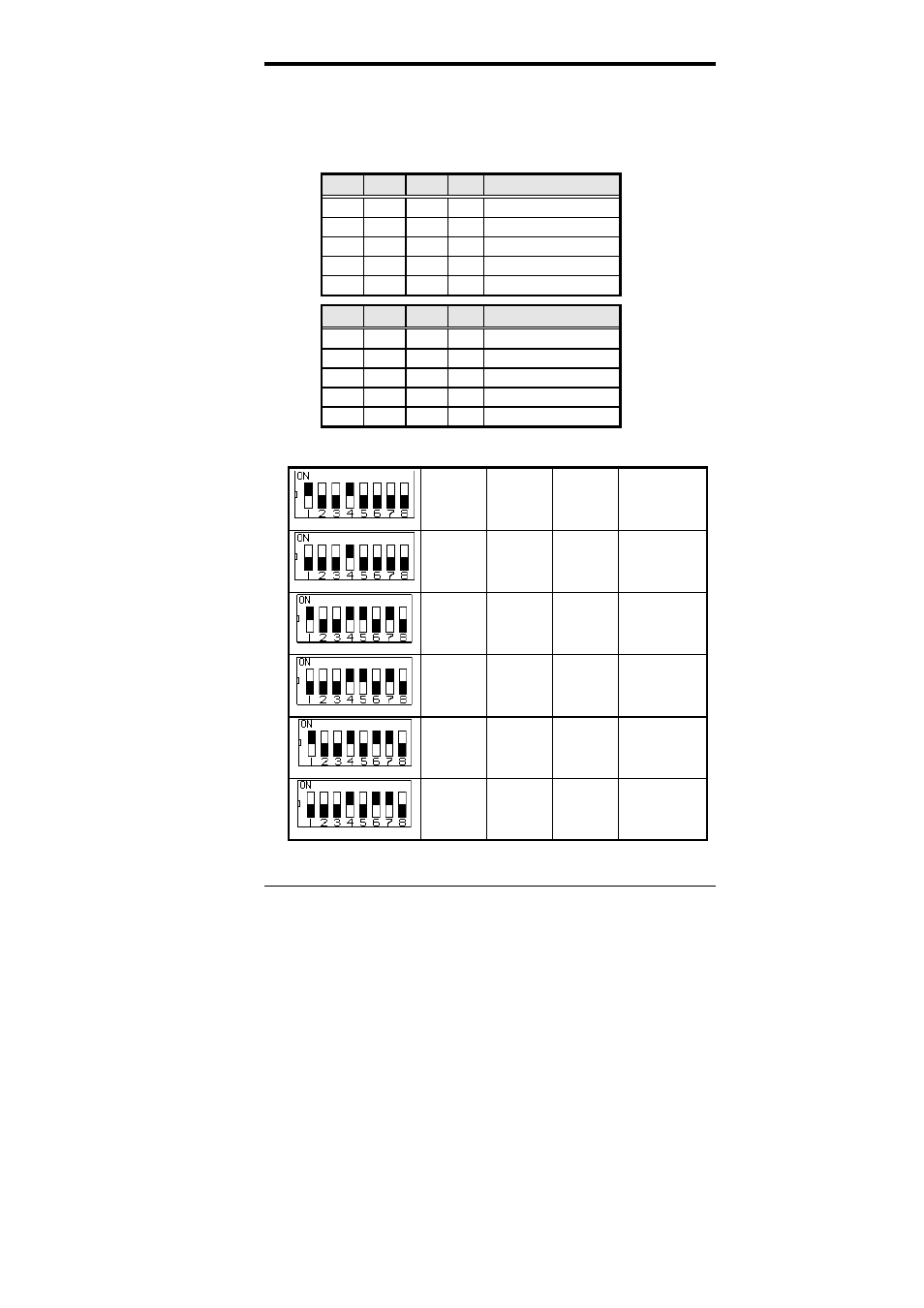

Below are additional information for LCD Panel Type Select
and settings for newer CPUs
SW3: LCD Panel Type Select
1 2 3 4 TFT LCD Panel
ON ON ON ON 640x480 –18
OFF ON ON ON 800x600 –18
ON OFF ON ON 1024x768 –18
OFF OFF ON ON 1024x768 –18+18
ON ON OFF ON 1280x1024 –18+18
1 2 3 4 DSTN LCD Panel
ON ON ON OFF 640x480 –16
OFF ON ON OFF 800x600 –16
ON OFF ON OFF 1024x768 –16
OFF OFF ON OFF 1024x768 –24
ON ON OFF OFF 1280x1024 –24
Settings for New Cyrix/AMD CPUs
on off off on off off off off
95MHz 63MHz 3.5x
MII-400
(333MHz)
off off off on off off off off
100MHz 66MHz 3.5x
MII-433
(350MHz)
on off off on on off on off
95MHz 63MHz 4x
MII-450
(380MHz)
off off off on on off on off
100MHz 66MHz 4x
MII-466
(400MHz)
on off off on off on on off
95MHz 63MHz 5x
K6-2/475
K6-3/475
off off off on off on on off
100MHz 66MHz 5x
K6-2/500
K6-3/500
