Chapter 2 Installations
36 CI5VGM User’s Manual

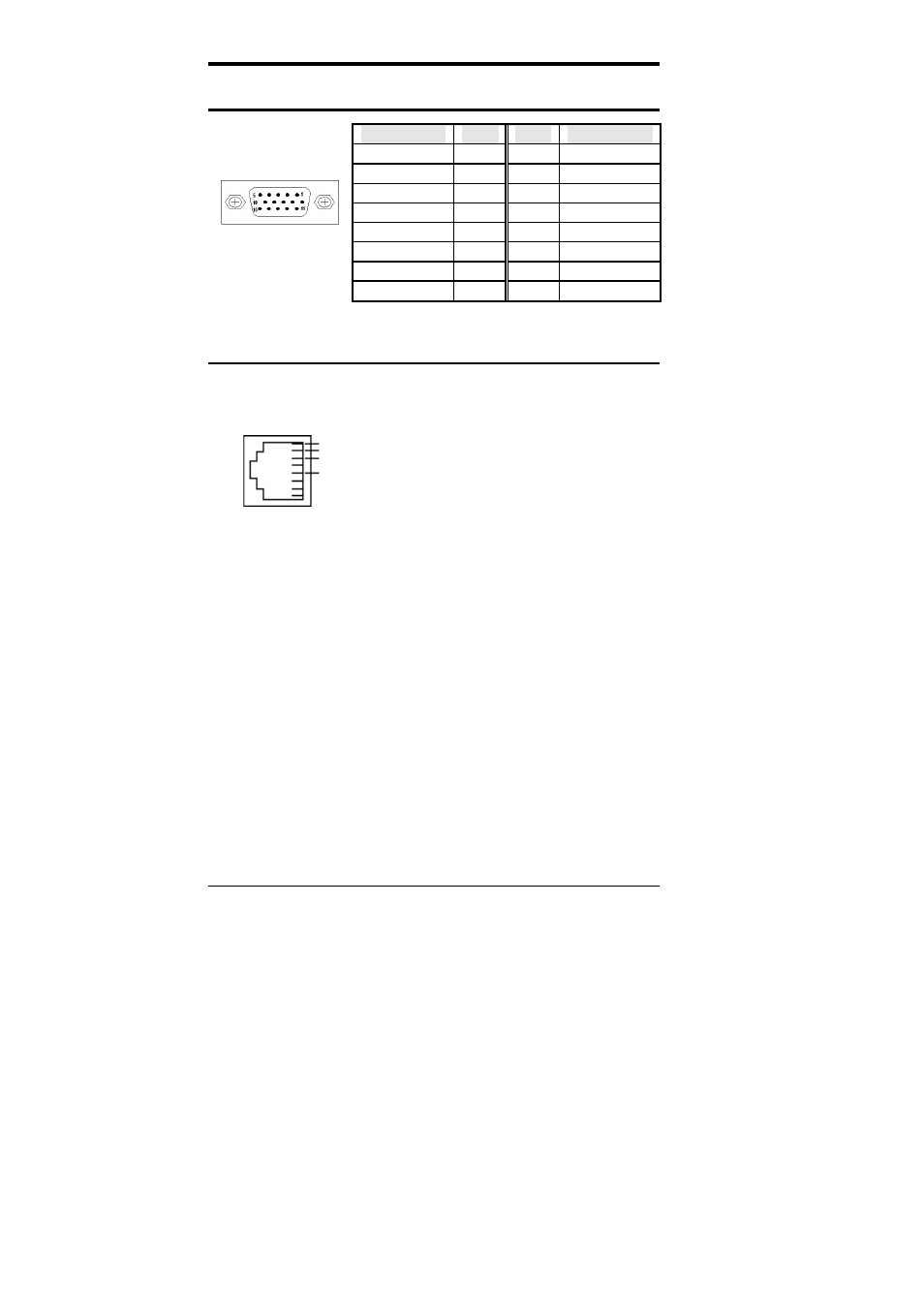

J21: VGA CRT Connector
Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
J21
NC 15
J25: RJ45 Connector
This connector is for the 10/100Mbps Ethernet capability of the CPU
card The figure below shows the pin out assignments of this connector
and its corresponding input jack.
TD+(pin#1)
TD-(pin#2)
RD+(pin#3)
RD-(pin#5)
