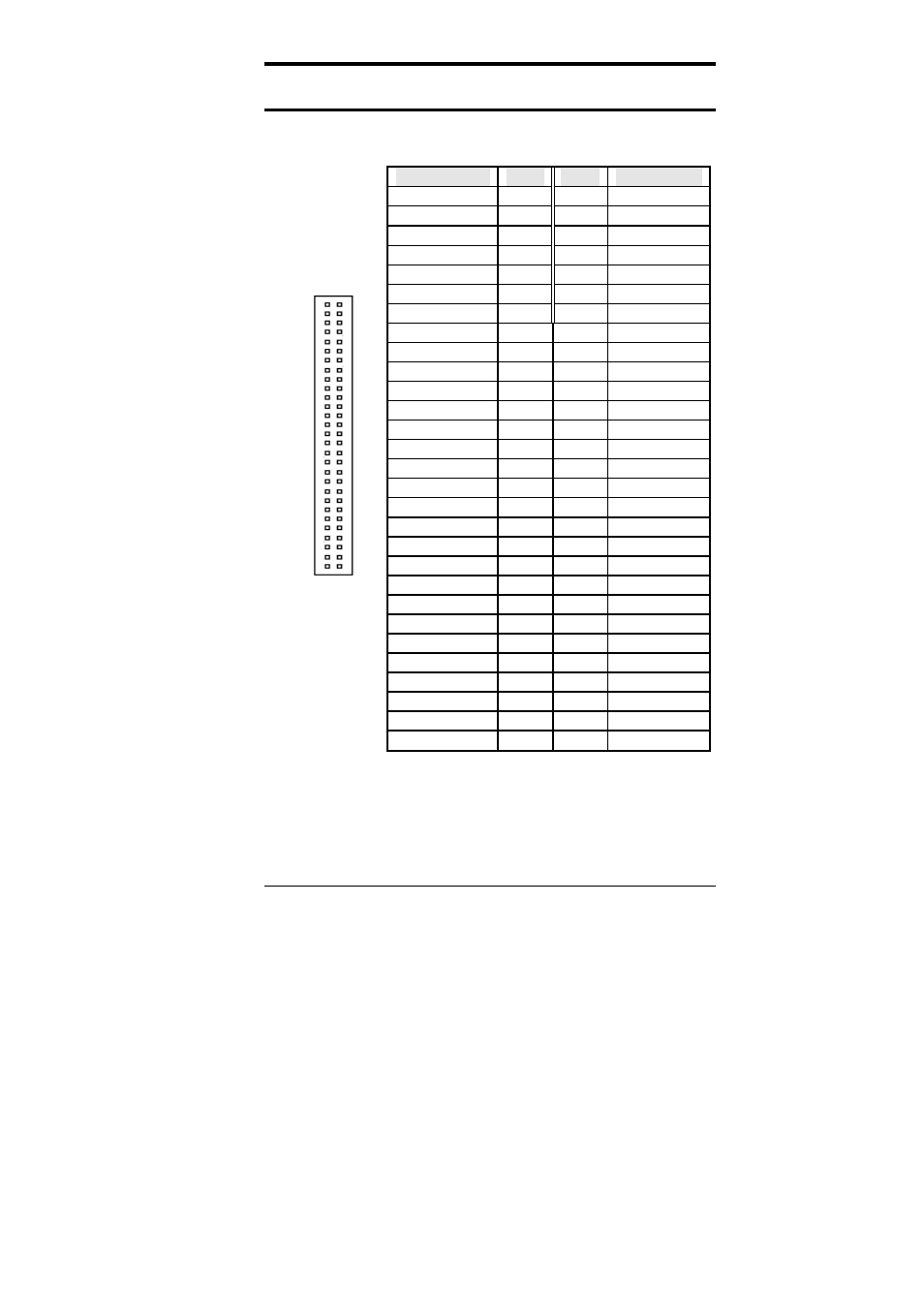

J9: LCD Panel Connector
J9 is a dual-in-line header for flat panel LCD displays. The following
shows the pin assignments of this connector.
Signal Name Pin # Pin # Signal Name
+12V 1 2 +12V
GND 3 4 GND
+5V/3.3V 5 6 +5V/3.3V
ENPVEE 7 8 GND
P0 9 10 P1
58 57 P2 11 12 P3
P4 13 14 P5
P6 15 16 P7
P8 17 18 P9
P10 19 20 P11
P12 21 22 P13
P14 23 24 P15
P16 25 26 P17
P18 27 28 P19
P20 29 30 P21
P22 31 32 P23
GND 33 34 GND
SHFCLK 35 36 FLM
DE 37 38 LP
GND 39 40 ENBLT
2 1 GND 41 42 PVDD
ENPVDD 43 44 +5V/3.3V
No Connect 45 46 No Connect
P24 47 48 P25
P26 49 50 P27
P28 51 52 P29
P30 53 54 P31
P32 55 56 P33
P34 57 58 P35
