Chapter 2 Installations

28

CI5VGM User’s Manual

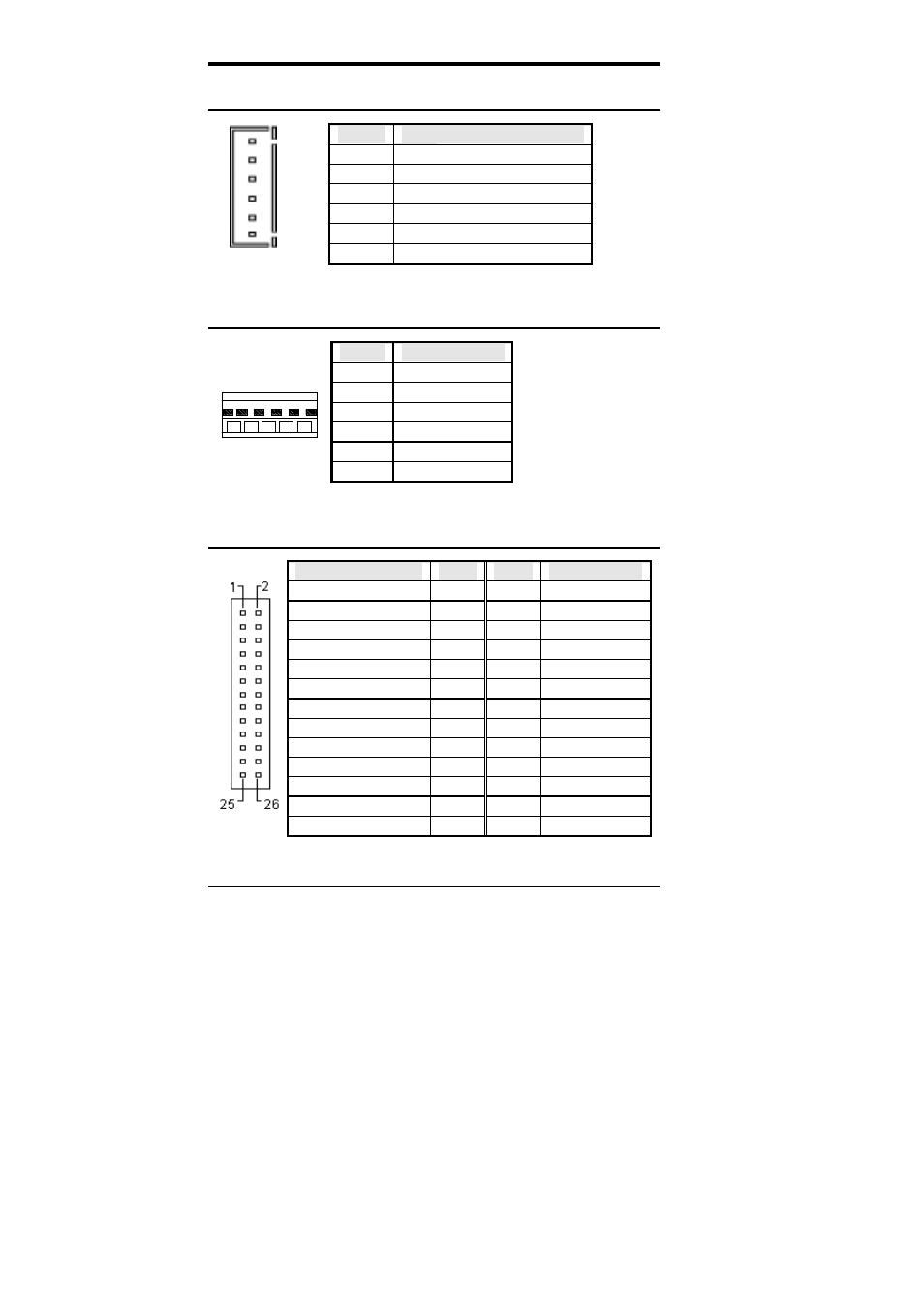

J3: External ATX Power Connector

Pin #

Signal Name

1

Dual function power button

2 GND
3

Dual function power button

4 GND
5

PS-ON (soft on/off)

6

5V SB (standby +5V)

J3

1



6

J18: AT Power Connector

Pin #

Signal Name

1 N/A
2 +5V
3 +12V
4 -12V
5 GND
6 GND

J18


J4: Audio I/O Connector (optional)

Signal Name

Pin #

Pin #

Signal Name

+12V 1

2

-12V

GND 3

4

Out-R

Out-L 5

6

GND

Auxi-L 7

8

Auxi-R

GND 9

20

Line-R

Line-L 11

12

GND

Min 13

14

VREFO

Vcc 15

16

MIC

RxD 17

18

TXD

GP7 19

20

GP6

GP5 21

22

GP4

GP3 23

24

GP2

J4

GP1 25

26

GP0
